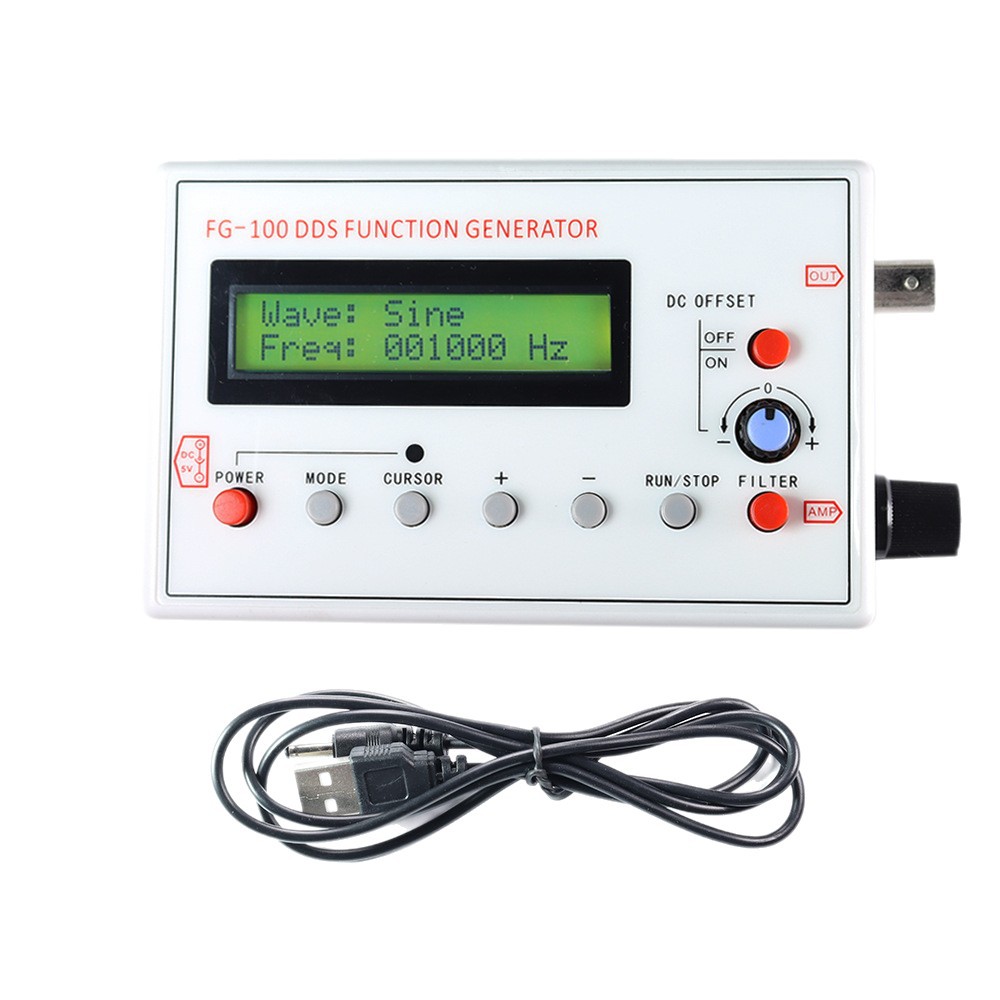

Генератор сигналов функции FG-100 Генератор сигналов функции DDS 1 Гц-500 кГц

一．主要特点：
      体积小巧，功能齐全，操作简捷，携带方便。可以用适配器供电，也可以一节锂电池供电。与示波器一起，可以用于电子电路试验与调试，音频放大器的频率特性和脉冲响应的试验与测量。由于DDS的良好精度和频率稳定性，也非常适合示波器扫描时间因数校准。方波输出适合示波器衰减器和探头脉冲特性调整等。

二.主要技术指标：
1.频率范围：正弦波1Hz-500kHz（其中输出幅度平坦的频率到200 kHz，随着频率的进一步升高输出幅度会降低），其它波形1Hz-20kHz（但可调频率上限不做限制，如果对失真和晃动要求不高，使用频率可以进一步增加）。
2.分辨率：1Hz。
3.输出波形：正弦波，方波，三角波，正向锯齿波，反向锯齿波 ，噪声波，心电图  。

设置完参数能保存
4.正弦波失真：1kHz以下<1%，1kHz及以上<0.5%。
5.输出幅度：最大±10V(P-P).
6.输出阻抗：50欧姆。
7.直流偏移：最大±10V，有关闭功能。

8.有可以打开与关闭的滤波器，能很好的适应正弦与脉冲波形输出。
8.电源：DC3.5-10V。推荐使用适配器时选DC5V,电池供电时用3.7V锂电池。

9.外形尺寸：125x80x32。

10.重量（含附件）：约0.2kg

I. Main features:
Compact size, full-featured, simple operation, easy to carry. It can be powered by an adapter or a lithium battery. Together with the oscilloscope, it can be used for electronic circuit testing and debugging, testing and measurement of frequency characteristics and impulse response of audio amplifiers. Due to the good accuracy and frequency stability of DDS, it is also very suitable for oscilloscope sweep time factor calibration. The square wave output is suitable for oscilloscope attenuator and probe pulse characteristic adjustment, etc.

II. Main technical specifications:
1. Frequency range: sine wave 1Hz-500kHz (where the output amplitude is flat up to 200 kHz, and the output amplitude will be reduced as the frequency is further increased), other waveforms 1Hz-20kHz (but the upper limit of the adjustable frequency is not a limitation, and the use of the frequency can be further increased if the distortion and wobble are not required).
2. Resolution: 1Hz.
3. Output waveforms: sine wave, square wave, triangle wave, forward sawtooth wave, reverse sawtooth wave, noise wave, ECG.

Parameters can be saved after setting.
4. Sine wave distortion: <1% below 1kHz, <0.5% above 1kHz.
5. Output amplitude: maximum ±10V (P-P).
6.Output impedance: 50 ohms.
7.DC offset: max ±10V, with shutdown function.

8. There can be open and close the filter, can be well adapted to sinusoidal and pulse waveform output.
8.Power supply: DC3.5-10V, recommend the use of adapter DC5V, battery power supply with 3.7V lithium batteries.

9. External dimensions: 125x80x32.

10. Weight (including accessories): about 0.2kg
