Арт. 914184231131

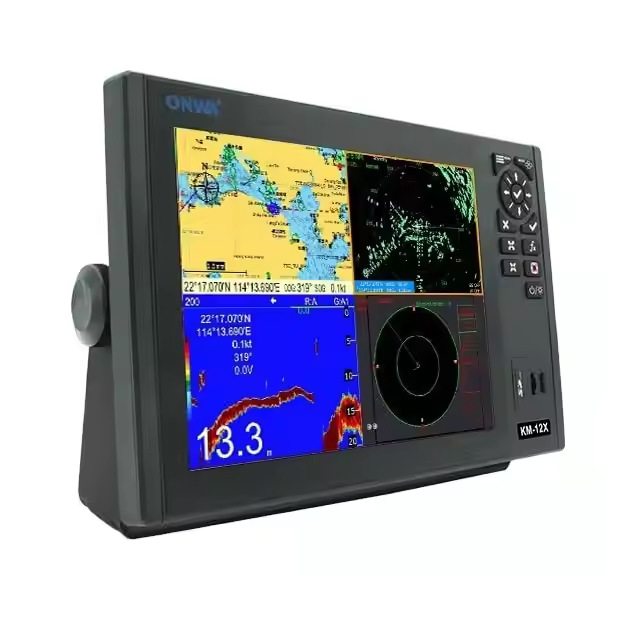

ONWA KM-12X 12-дюймовый GPS-эхолот/глубиномер/эхолот AIS 5в1

Ссылка на оригинал

Спецификация:

KP-12X

Всего продаж:

48 шт.

Минимальное количество для заказа:

1 шт.

ONWA KM-12X 12-дюймовый GPS-эхолот/глубиномер/эхолот AIS 5в1

Ссылка на оригинал

Доставим до Москвы: 10.12 - 20.12

от 100 000.00 ₽ за 1 шт.

100 000.00 ₽

Для расчета доставки до Москвы обратитесь к менеджеру

Оптом

от 1 шт.

100 000.00 ₽

Описание

KM-12X(New!)

ONWA 12 Inch KM-12X New 5 in 1 Marine GPS Chart Plotter Class B AIS Transponder Fish Finder Marine Radar Function

ONWA’s Newest 5-in-1 Unit!
KM-12X 12-inch GPS Chart Plotter with Fish finder with built-in Class B+ AIS Transponder and Radar Function!

Specifications

Plotter Characteristics

Waypoints/icons

12,000 user waypoints with name, symbol,
3 system waypoints: MOB,Start,cursor
10 proximity waypoints

Routes

30 routes waypoint up to 170 points each,
plus MOB and Track Navigation or Goto Track modes

Tracks

8,000 points automatic track log;
10 saved tracks (up to 8000 track points each)
lets you retrace your path in both directions

Alarms

XTE, Anchor drag, arrival, speed, voltage, proximity waypoint,
Timer and AIS (CPA and TCPA) alarm

Drawing

1000 Drawing Marks; 2000 Drawing Lines (40 points each);
1000 Drawing Place Name; 8 colors for Drawing

Pallete

Normal
Daylight exposed to sunlight
Night in dark environment
NOAA paperchart colors

Tides

Built-in Worldwide Tide Data

Position Format

Lat/Lon

Basemap

Worldwide

External Map

Compatible with K-Chart 2.0, K-Chart 3.0, C-Map Max and Navionics+

User Data Storage

Internal backup of user settings or external SD-card

Plot Interval

5secs to 60 mins or 0.01 to 10nm

Plotting Scales

0.001 to 700nm

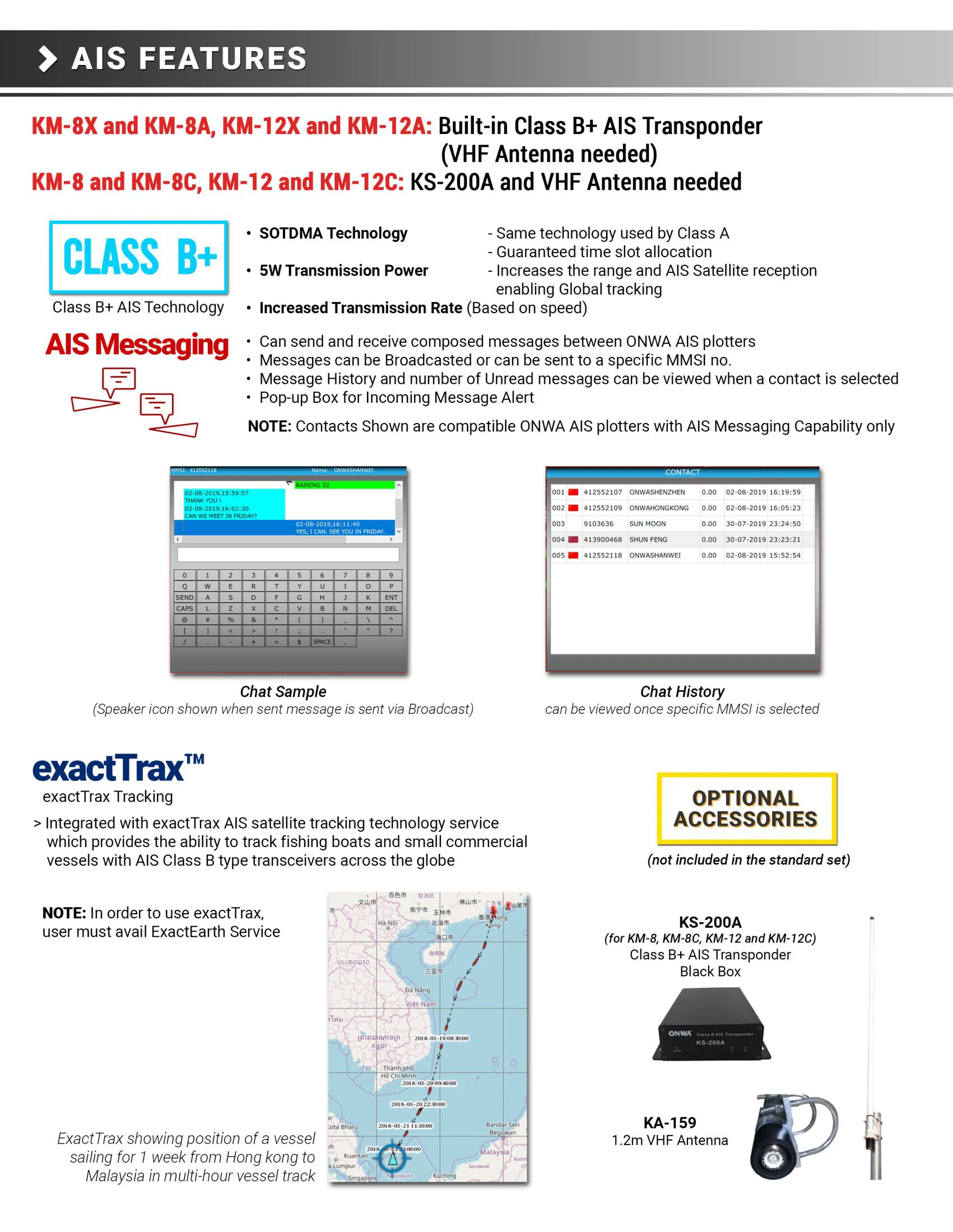

AIS

700 targets display

AIS Target Tracking

10 Manually saved tracks (300 points each)

AIS Messaging

ONWA AIS to ONWA AIS

Perspective view

On/off (available for C-Map only)

Celestial

Sunrise/Sunset Moonrise/Moonset

GPS Receiver Characteristics

Receiver

50 parallel channel GNSS receiver continuously tracks and
uses up to 50 satellites to compute and update your position

Acquisition time

Cold start: 29 seconds
Hot start: 1 second

Update rate

1 second

Accuracy

Position:3 meters(95%) without S/A
Velocity: 0.1 meter/sec without S/A

SBAS

Supported

GNSS

GPS and Beidou

Dynamics

Altitude: 18,000 m
Velocity: 515 m/s

Datum

WGS 84 & user defined

Antenna

KA-07

GPS Interface (NMEA0183)

GPS Data

RS232 input/output, NMEA 0183 V3.01 and V4.11

GPS Input Baudrate

Auto Scan (4800, 9600, 19200 and 38400)

GPS Output Baudrate

Selectable among 4800, 9600, 19200 and 38400

AIS Interface (NMEA1083)

AIS Data

RS232 output VDO, VDM, GGA, GSA, GSV and VTG

AIS Output Baudrate

38,400

AIS Characteristics

Frequency Rate

156.025 MHz~162.025 MHz

Access Scheme

SOTDMA

Channel Bandwidth

25 KHz

Modulation

GMSK

Data Rate

9,600 bps

Number of AIS Transmitter

Number of AIS Receiver

AIS Channel 1

CH 87B (161.975 MHz)

AIS Channel 2

CH 88B (162.025 MHz)

Tx Power Output

>5 Watt (37 dBm ± 1.5 dB)

RX Sensitivity

<-123dBm @ 20% PER

RX Message Format

AIS Class A and B messages

Comply Standard

IEC-62287 IEC 62287-2 Ed. 2.0:2017

Echo Sounder Characteristics

Echo Color

16 colors (including background color) according to echo intensity. The background color is selectable from blue, light blue, white and black

Basic Range

Meters 5/10/20/40/80/150/200/300/600/1000
Feet 15/30/60/120/200/400/600/1000/2000/3000
Fathoms 3/5/10/20/40/80/150/300/600
*The basic ranges can be changed on the system menu.

Range Shift

Up to 1000 meters (3000 feet,600 fathoms)

Zoom Range

Times 2,3,4 and 6 ranges

Bottom Lock Expansion Range

5/10 meters,10/20 feet,2/5 fathoms

Auto Mode

Automatic adjustment of range and gain

Display Mode

High Frequency (200K),Low Frequency (50K), Dual (200K and 50K 1/2 display on each),
Zoom (200K and 50K zoom) and A-scope Display

Zoom Display

Marker Zoom, Bottom Zoom and Bottom-lock Expansion

Display Advance Speed

Lines/TX:Freeze, 1/8, 1/4, 1/2, 1/1, 2/1, 4/1, 6/1,8/1 and 10/1

TX Frequency

50 and 200kHz (alternately transmitted)

Power Output

600W (Up to 1kW by using High Power Transducer)

Pulse-length/TX rate

Display End Depth (m)	5	10	20	40	80	150	200	300	600	1000
Pulse-Length 200K(µs)	120	220	320	520	920	1020	1020	1020	1020	1020
Pulse-Length 50K(µs)	170	270	370	570	970	1070	1070	1070	1070	1070
TX Rate(pulse/min)	2000	1333	706	353	171	98	75	53	38	27
TX period(millisecond)	30	45	85	170	350	610	800	1120	1580	2200

Interference Rejecter

Rejects unwanted signals by comparing last and present echoes in strength.

Alarm

Fish and Bottom alarms,
Temperature alarm (sensor required)

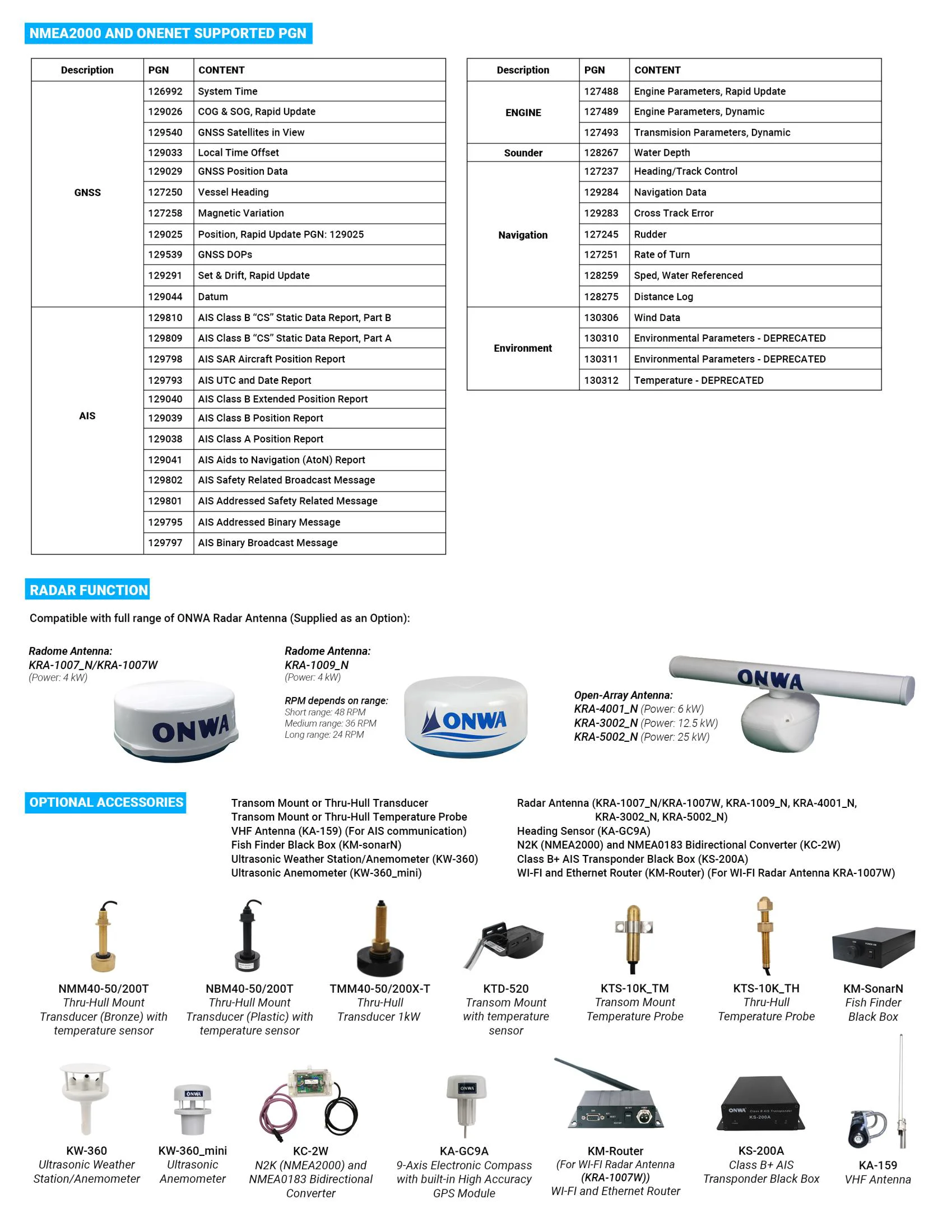

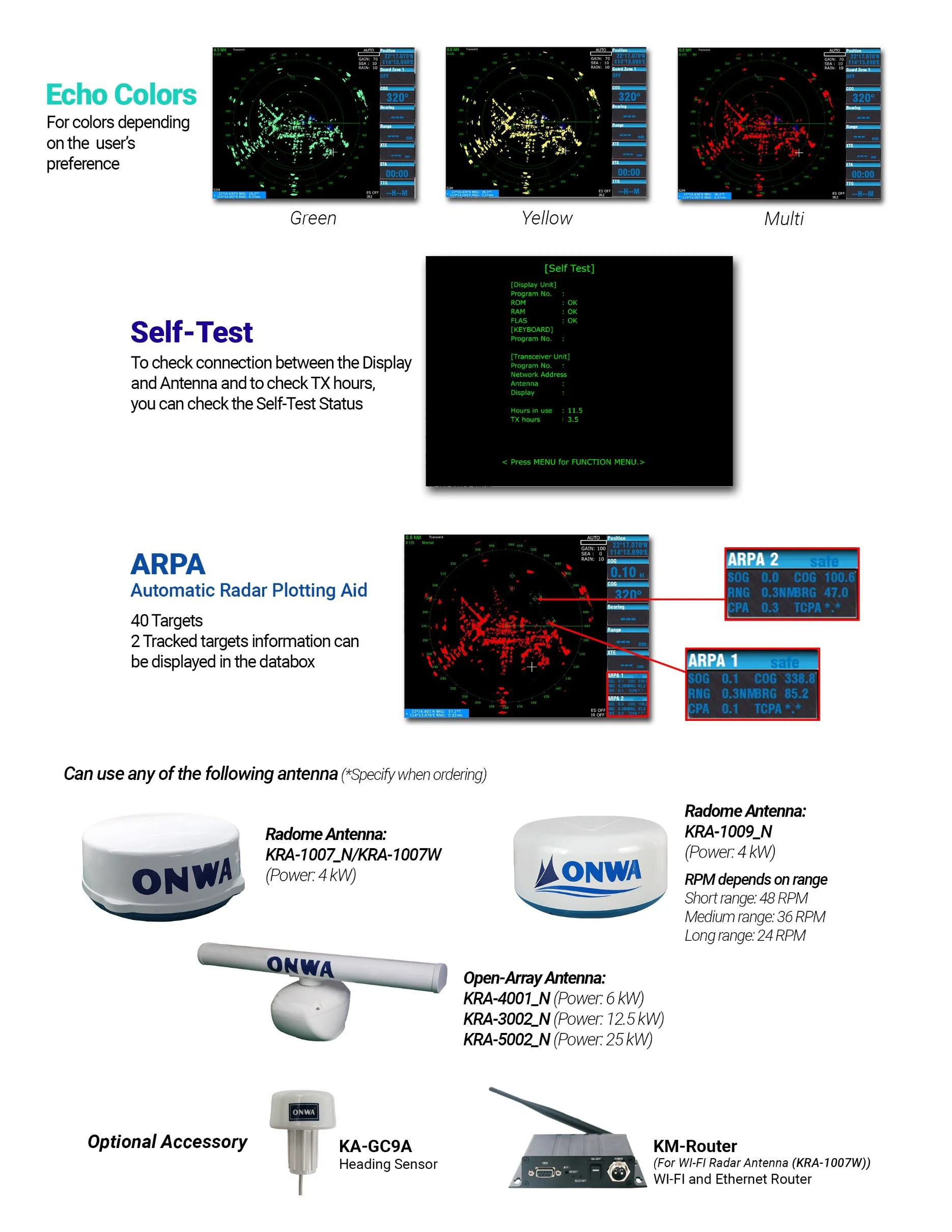

RADAR Function

Compatible with full range of ONWA
Radar Antenna
(Supplied as an Option):

Radome:
KRA-1007_N (Power: 4 kW)
KRA-1009_N (Power: 4 kW)
Open-Array:
KRA-4001_N (Power: 6 kW)
KRA-3002_N (Power: 12.5 kW)

NMEA0183 Sentence Supported

INPUT

(Auto scan Baudrate)
GGA, GLL, GSA, GSV, RMC, HDG, HDM, HDT
VTG, ZDA, MTW, VWR, VWT, MWD, VPW, VHW
TLL, TTM, VDO, VDM, GNS, MTA
RMA, DBT, DPT, MWV, BWC, XTE, ZDL, WPL, AAM,
APB, BOD, RMB, DSC, MDA, RPM, XDR

OUTPUT

Baudrate: Selectable 4800, 9600, 19200, 38400
GGA, GLL, RMC, GSA, GSV, AAM, APA
APB, BOD, BWC, BWR, DBT, DPT, HDT
MTW, RMB, TLL, VTG, WPL, XTE, ZDA
ZTG, ZDL, MWD, VPW, VWR, VWT
