Точка останова автомобиля Короткое замыкание Обнаружитель EM415PRO EM415 Электронный инструмент обнаружения разбитой цепи Обнаружение линии

Описание

汽车断点短路寻线器 EM415PRO EM415 断路电子检测工具

25.5*12.5*3.5 重量290克

FUNCTION:

* Tracing of wires is made possible even inside bundles, co-

nduits, behind panels, under carpets, upholstery, etc

* Easy to use: simply connect the transmitter in series with

the circuit or wire under test, (i.e.: in place of a blown fuse,

across a connector, in series with an open wire, a light bulb

socket, etc.), and scanning the circuit/wire with the tracers

flexible probe to find the trouble spot

* 42 V Ready: for use in the new generation of vehicles with

mixed or single 42 Volt systems

* Operates on DC voltages from 6 to 42 volts

* Internally protected against power surges and overloads

* 7" flexible probe allows reaching wires in congested places

* Transmitter and Receiver LEDs show open or short circuit

conditions

* Adjustable sensitivity for all tracing situations

* No wire piercing required, non-contact technology!

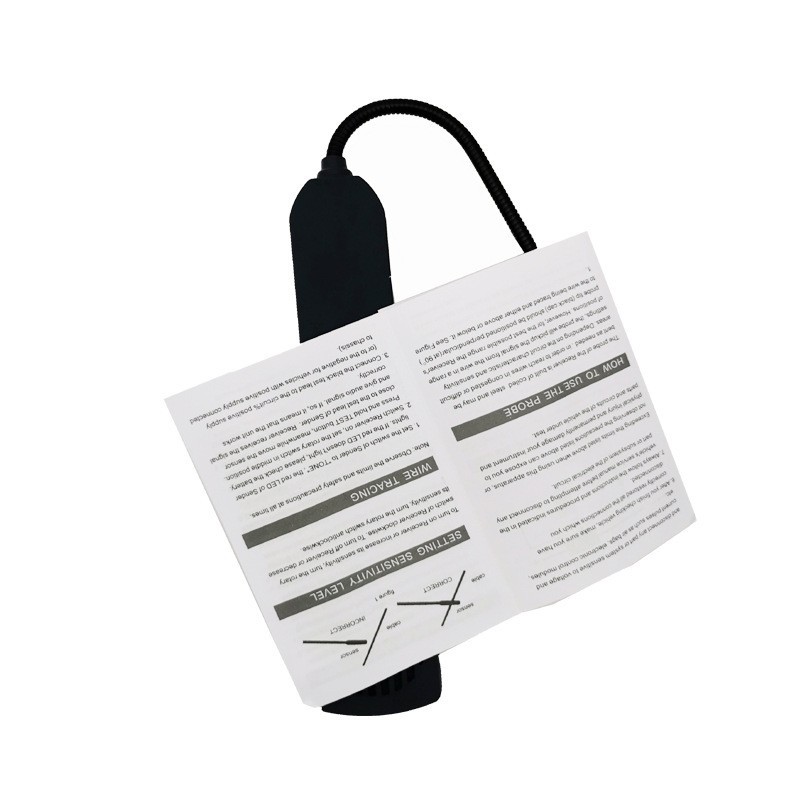

HOW TO USE THE PROBE?

The probe of the Receiver is built of coiled steel and may be bent as needed, in order to reach

wires in ongested or difficult areas. Depending on the circuit characteristic and sensitivity settings,

the probe will pick up the signal from the wire in a range of positions. However, for the best

possible range the Receiver's probe tip (black cap) should be positioned perpendicular (at 90o)

to the wire being traced and either above or below it.

Package List:

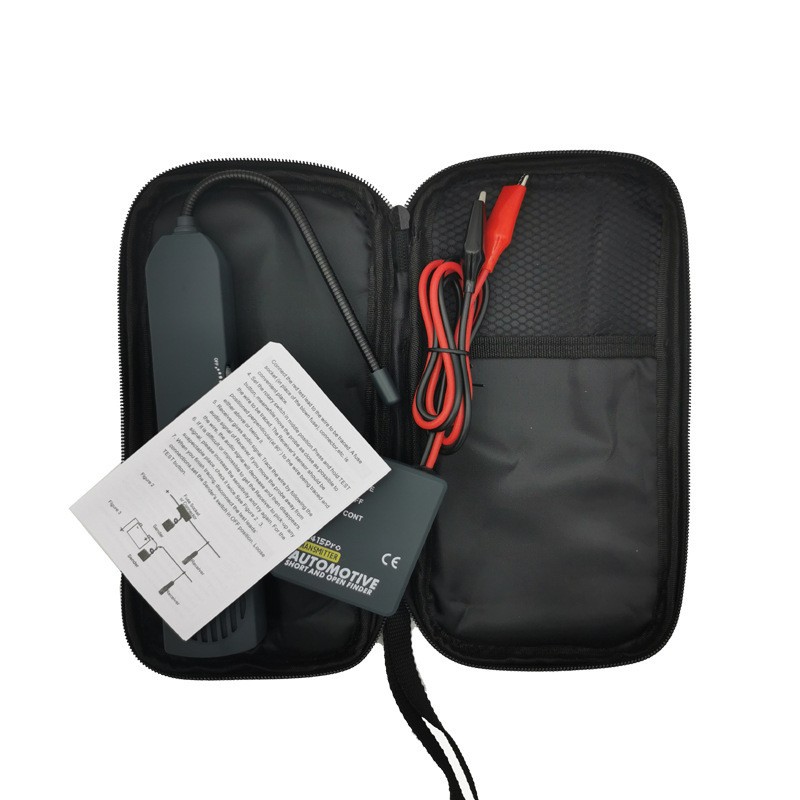

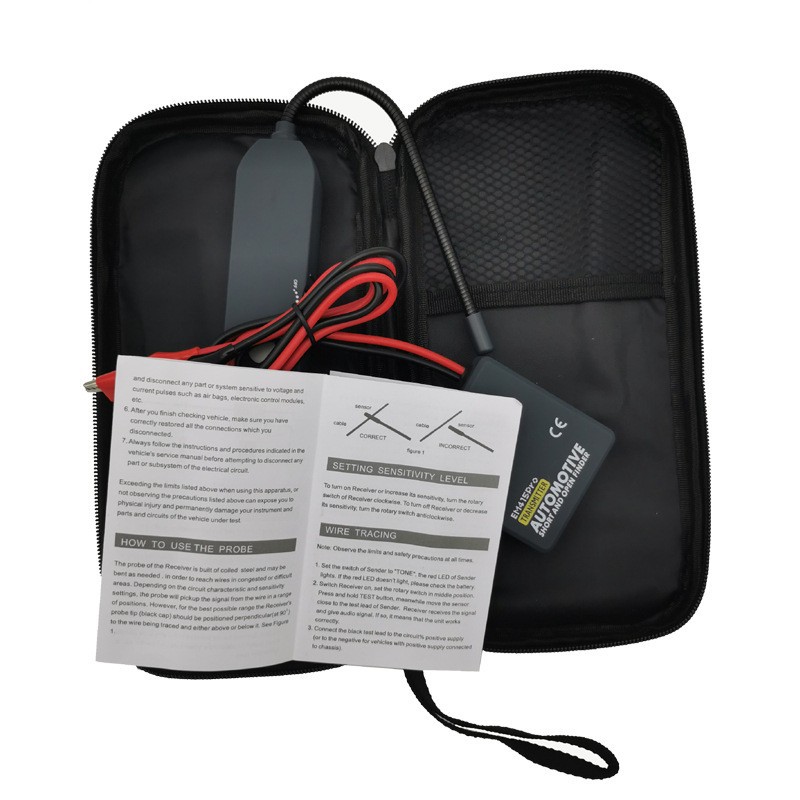

1 x Automotive Short and Open Finder

1 x Instruction Manual
