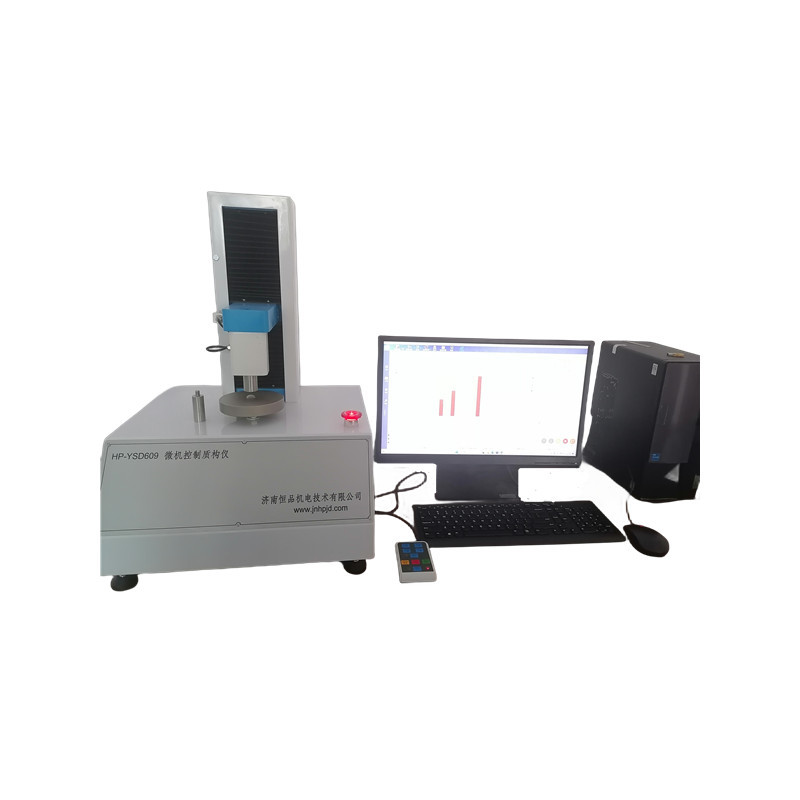

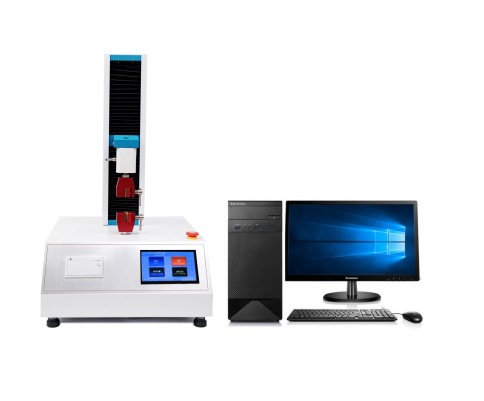

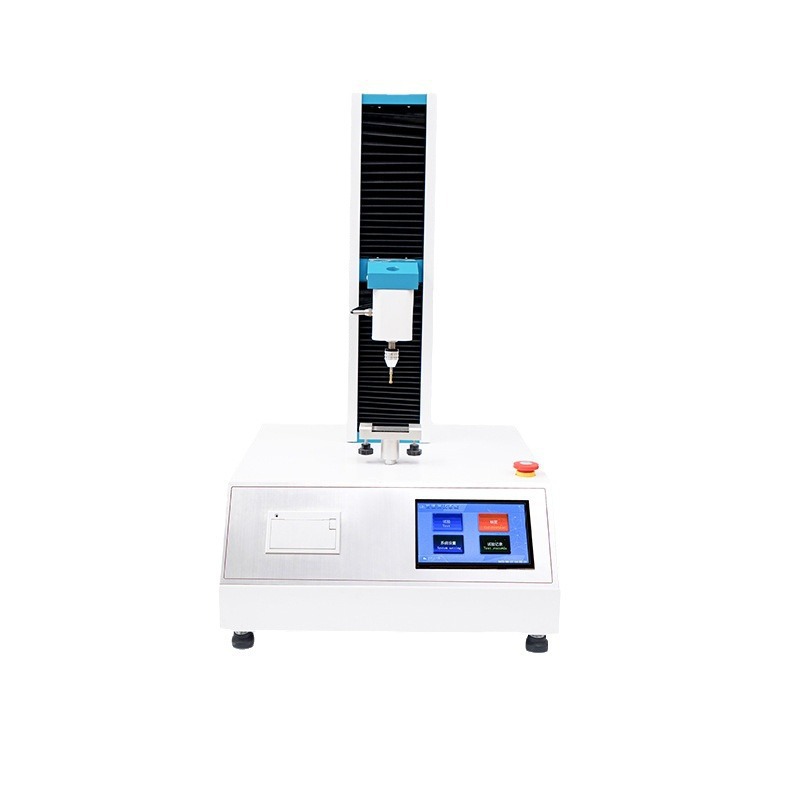

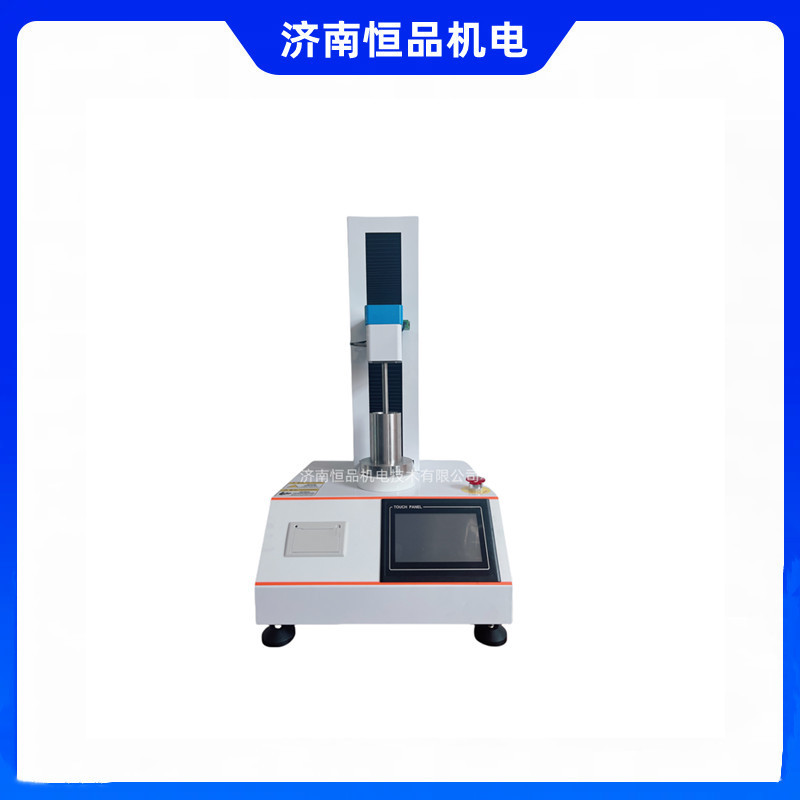

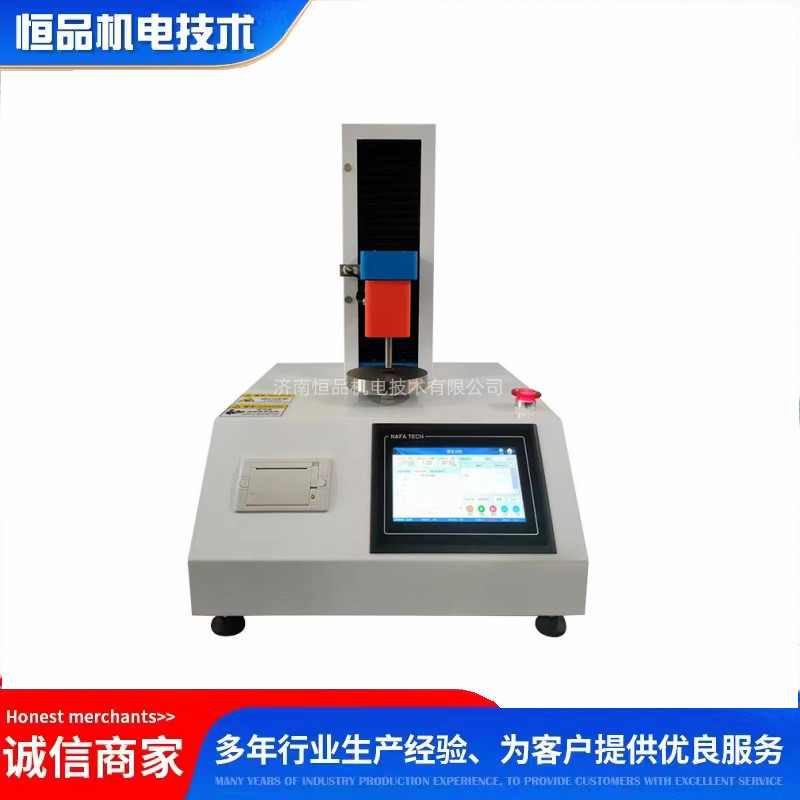

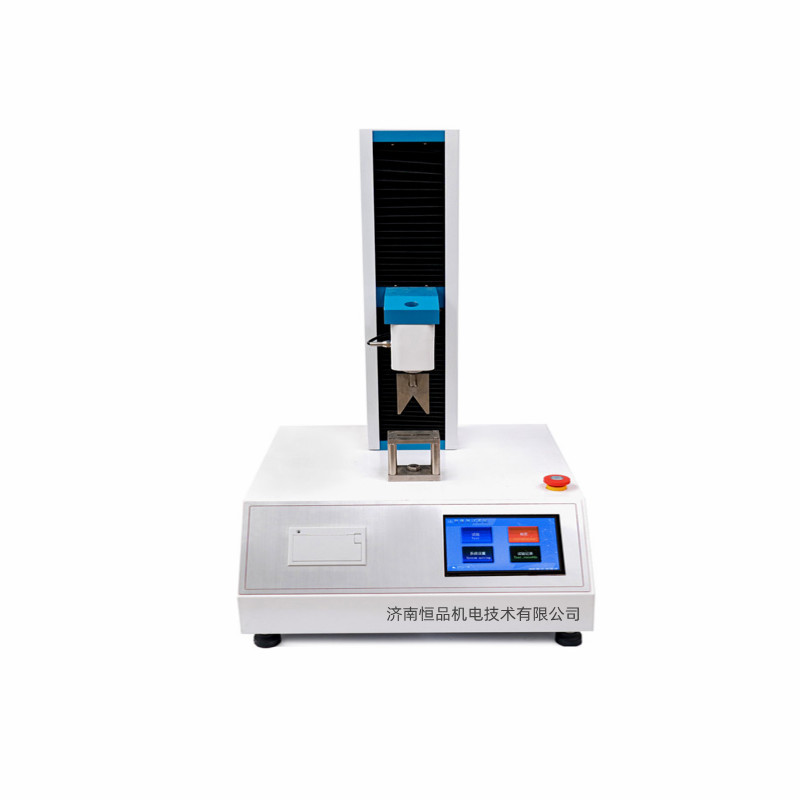

HP-ZGY16 The texture analyzer

Описание

.

The texture analyzer is applicable to the analysis and detection of physical properties of meat products, grain and oil products, flour products, rice products, baked goods, snack food, fruit and vegetable products, gel, pet food, food packaging materials, cosmetics, drugs, biological materials, tobacco industry, etc. The texture analyzer is also called the physical property tester.

The test indicators of texture analyzer include: TPA, hardness, brittleness, viscosity, relaxation, flexibility, breaking strength, adhesive viscosity, resilience, elasticity, tensile strength, yield stress, ductility, gel strength, freezing strength, etc.

The texture analyzer is applied in the following fields:

Features of texture analyzer products:

1. Using chip control, high-precision force sensors with high precision.

2. Using high-performance motors and ball screw drive to ensure the transmission of the instrument.

3. Friendly human-machine interface operation. Fully automated testing. Easy to operate, with testing data statistics and processing function,

4. Can adapt to various probes

5. Limit: The upper and lower limits can be moved freely, and the electromagnetic induction limit principle is precise and sensitive.

6. Software: Professional measurement and control software, the entire process is automatically tested, without the need for manual calculations; After inserting the sample, simply press the test button, automatically press down, and the software will automatically determine that the test is complete,

7. Protection: Equipped with multiple protections such as electromagnetic limit switches and emergency stop buttons.

8. Transmission: The deceleration motor drives the precision ball screw through a synchronous wheel, ensuring accurate transmission and silent operation.

9. Machine: Thickened integrated workbench, thickened upper crossbeam, stable and beautiful machine.

Main performance parameters of the texture analyzer:

1. Range: 20kg (1kg, 5kg, 10kg, 20kg, 30kg, 50kg optional)

2. Force sensing error: error less than 0.5%

3. Displacement accuracy: 0.01mm

4. Test movement distance: 320mm

5. Size: 500x500x1200mm

6.Voltage: 220V 50Hz
