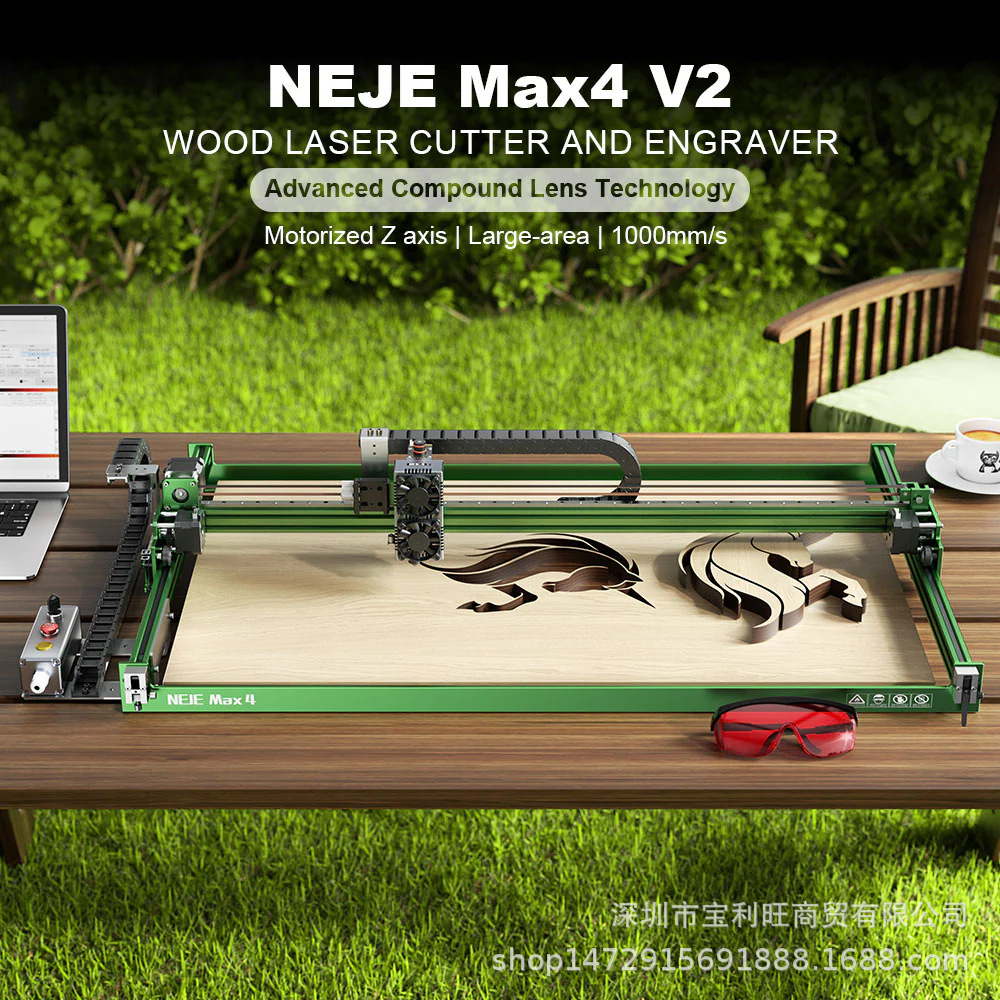

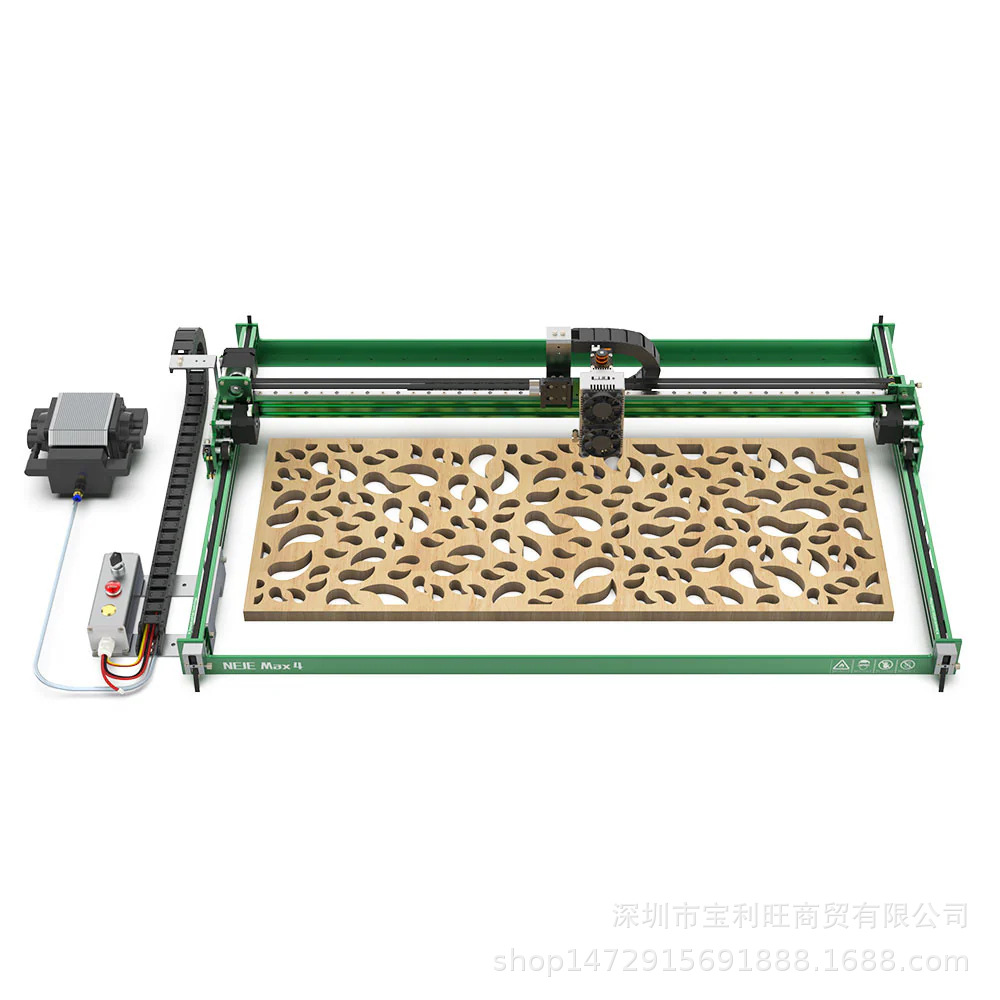

25 моделей NEJE Max 4 V2 E80 Электрический Z оси для лазерной резки древесины 1000mm/s большой площади

Описание

模组型号区别：

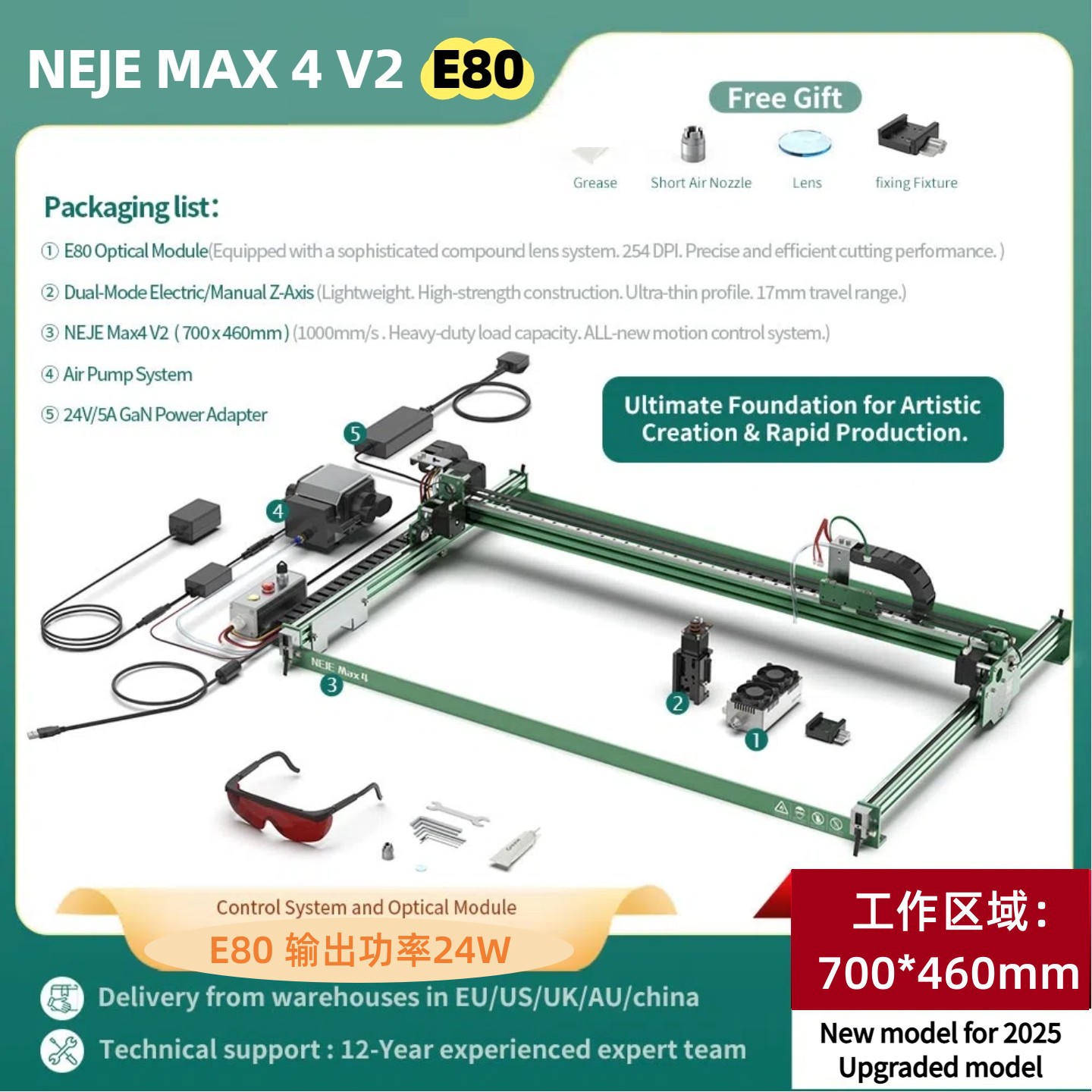

E80模组光功率4*LD压缩光斑24W 【定焦带空气辅助】

A40640模组光功率2*LD压缩光斑12W 【变焦带空气辅助】

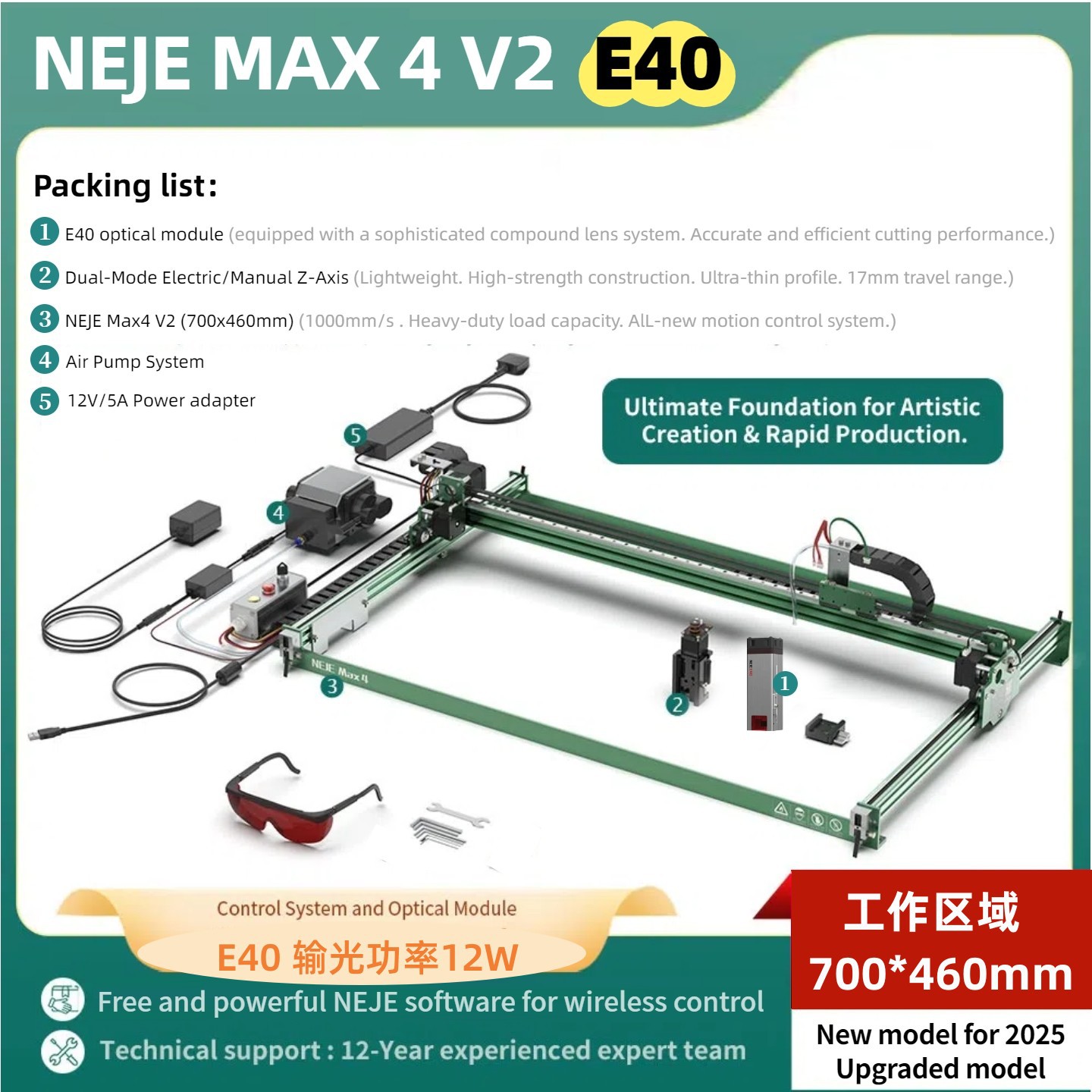

E40模组光功率2*LD压缩光斑12W  【定焦带空气辅助】

特点

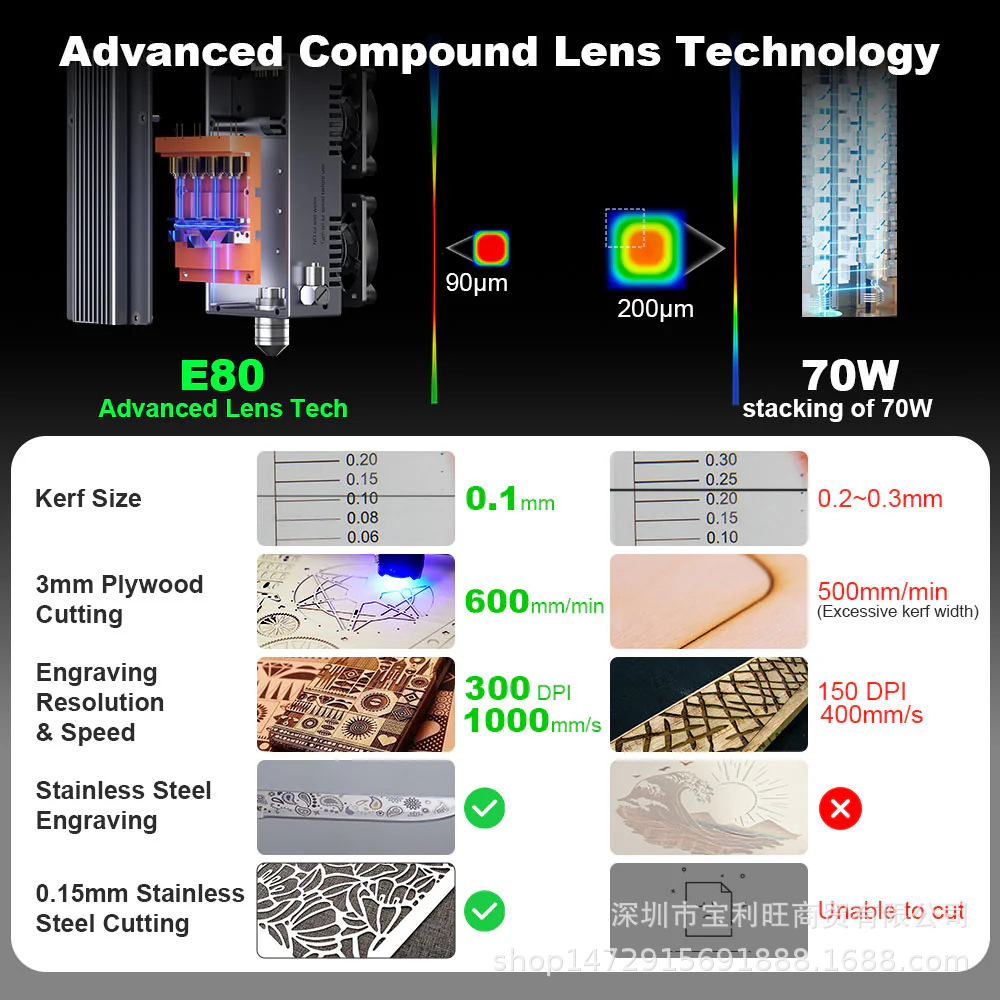

独家先进镜头技术
-90μm 对称焦斑，业界最高功率密度
-与 70W 模块相比，焦斑尺寸缩小 1/4，能量密度提升 4 倍
-可切割 0.15mm 不锈钢，精度高达 0.1mm，碳化极小，阻燃
-唯一一款同时实现高速切割和精细雕刻的模块
轻量化高速设计

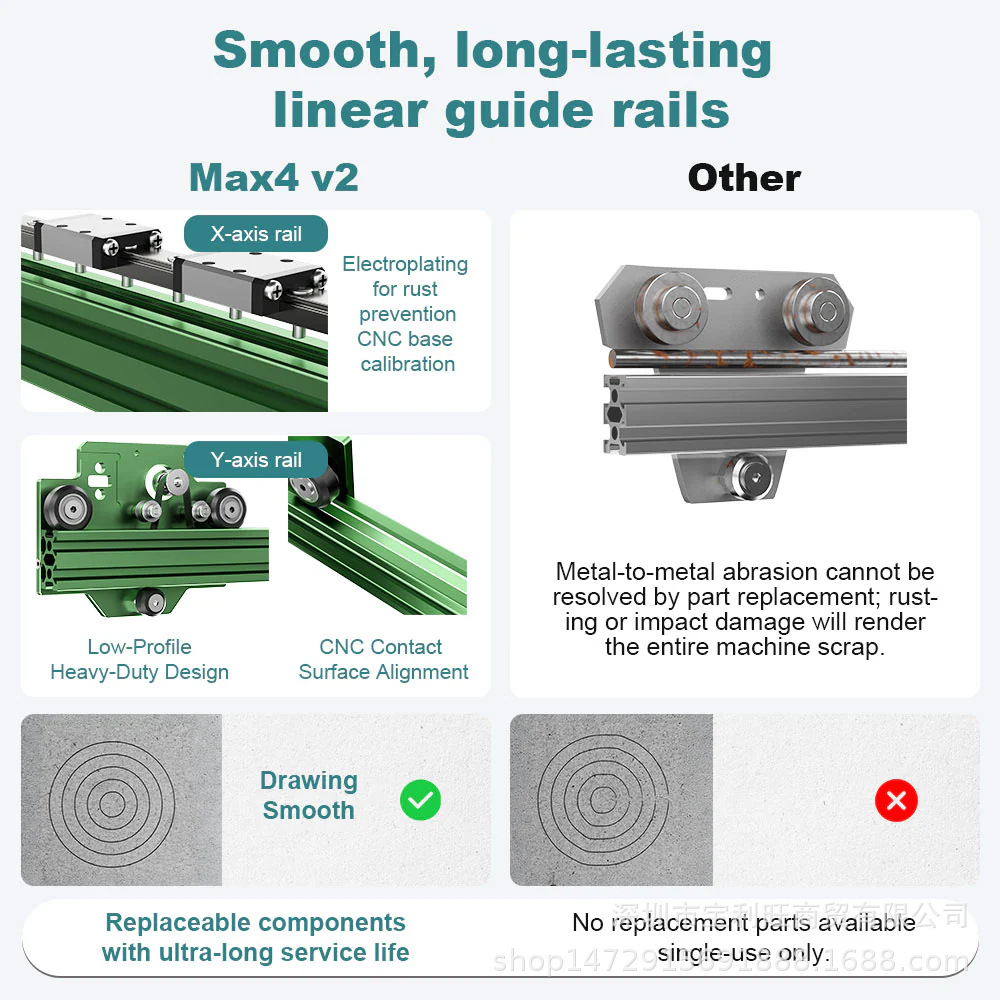

-工业级平滑运动导轨，惯性极小
-运动效率优于 40W/70W 模块
-Max4 V2 @1000mm/s 和 100000mm/s² 加速度（E80 的全部潜力尚未得到充分发挥）
工业级耐用性
-双滑轨，低磨损系数
-优化的龙门结构，可快速响应损坏
-外置风扇设计，易于更换
-NEJE 工厂控制质量，优质光源
-2 年保修 + 终身备件零件

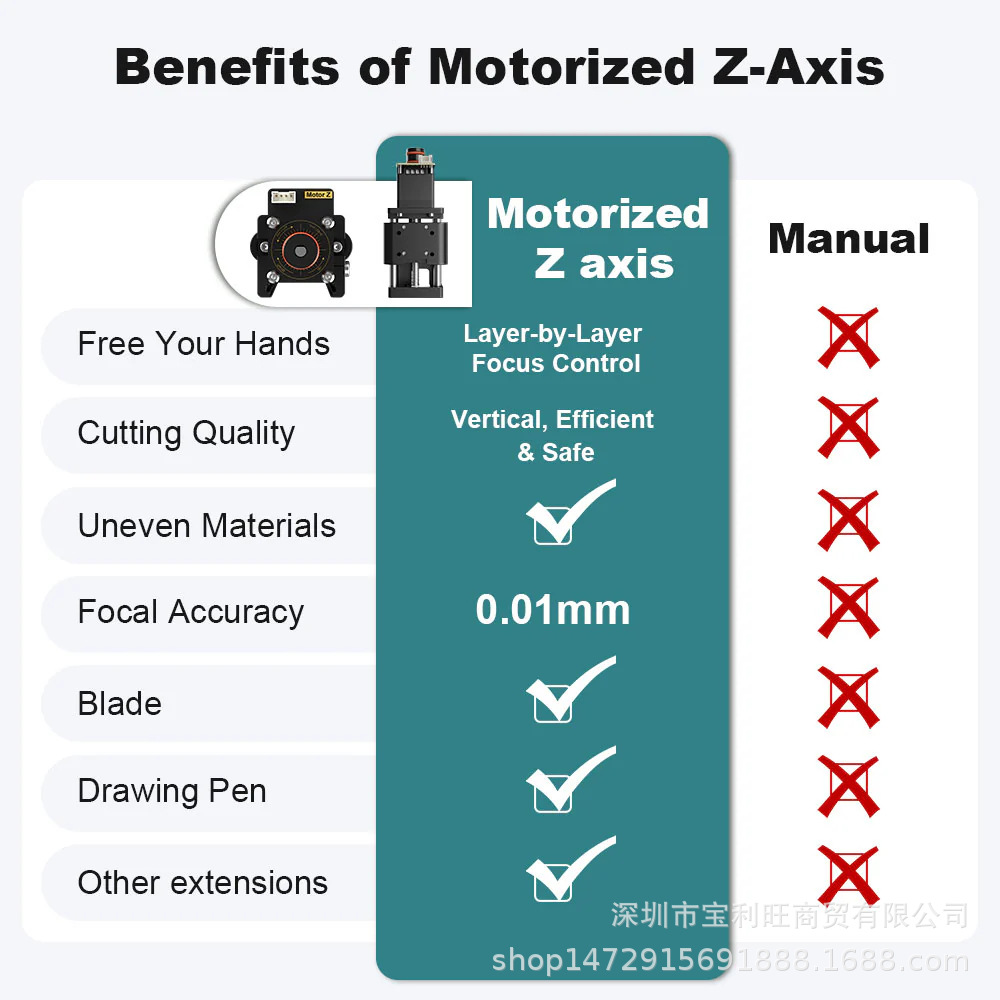

精密 Z 轴控制
-多层电动 Z 轴，0.1mm 手动调焦
-消除不平整表面的斜角切割
-针对天然材料和复杂雕刻进行优化

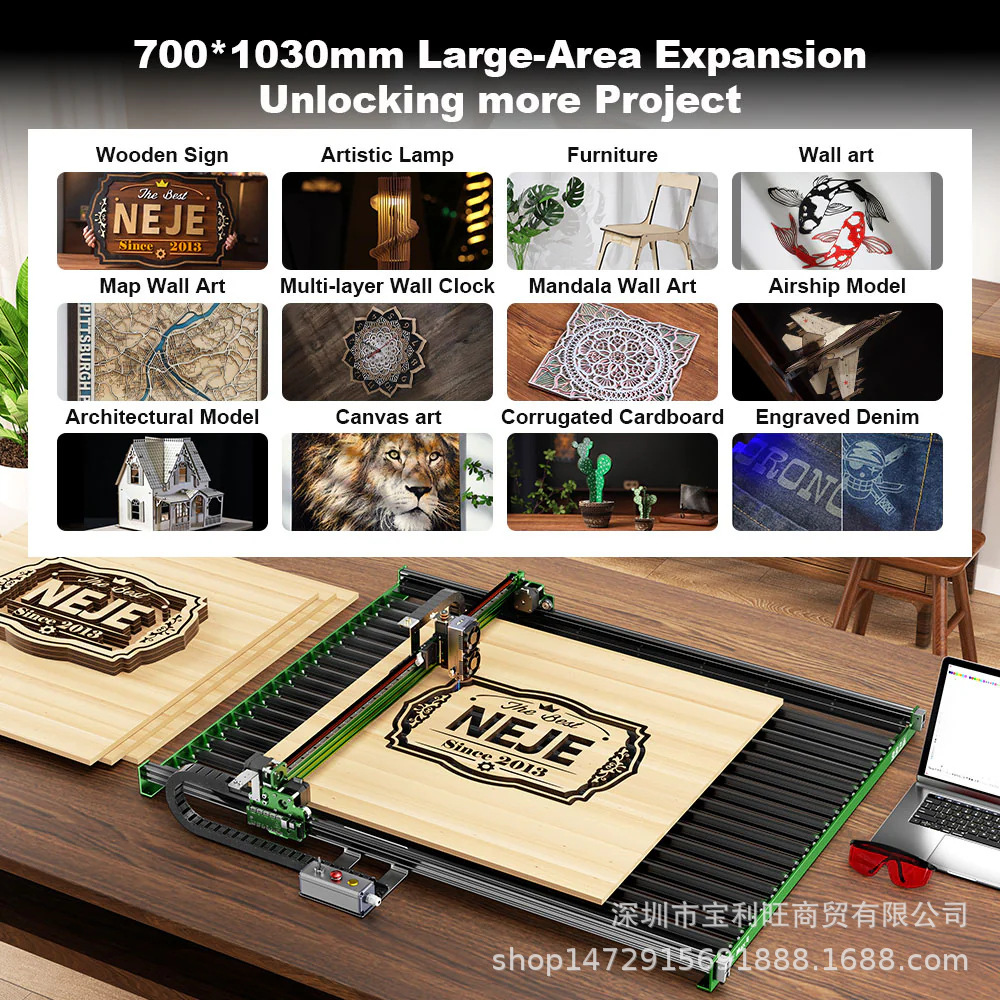

-扩展工作区域

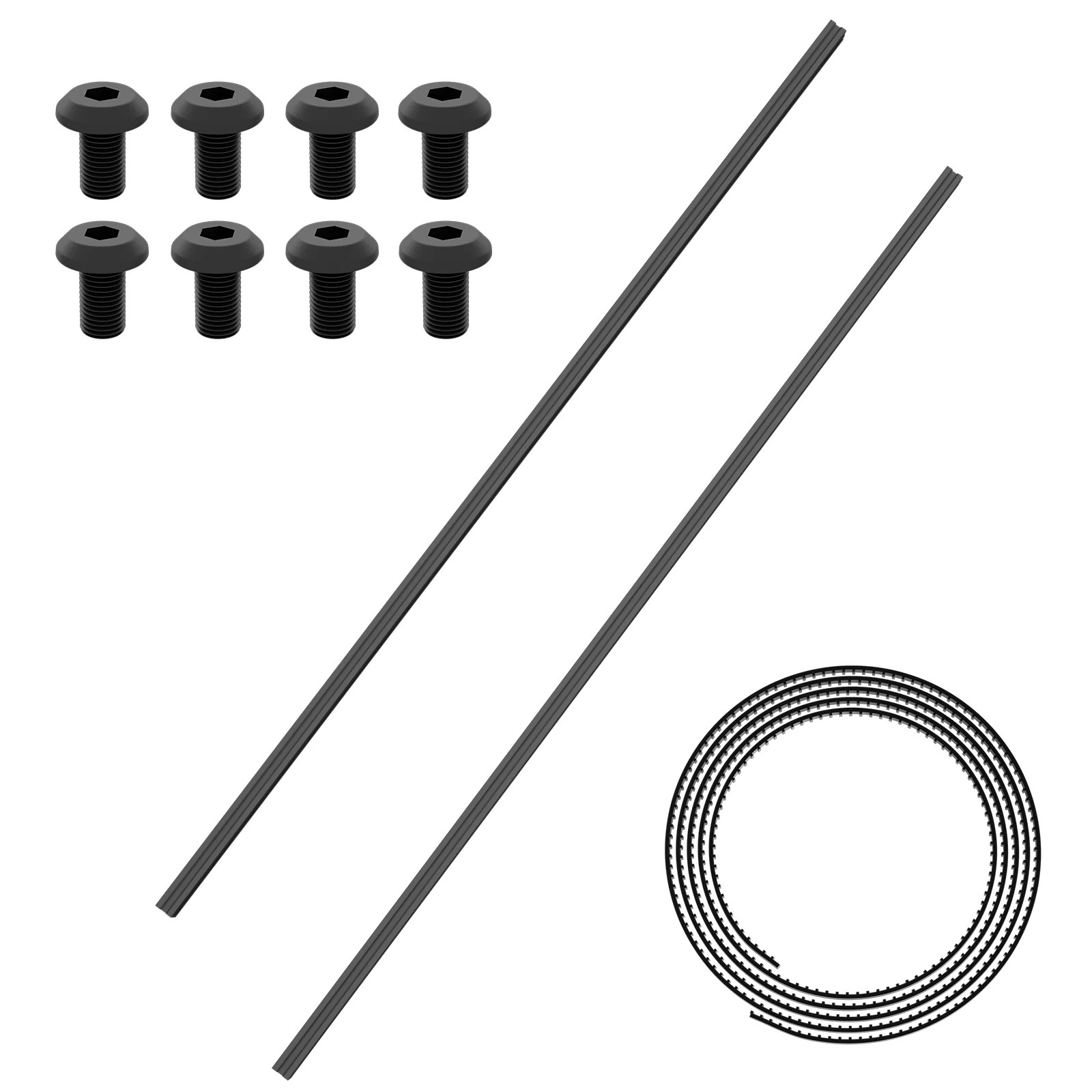

-标准 700×460mm + 可扩展至 700×1030mm
-支持大幅面项目：建筑模型、灯具艺术、织物/瓦楞纸/帆布/墙面艺术

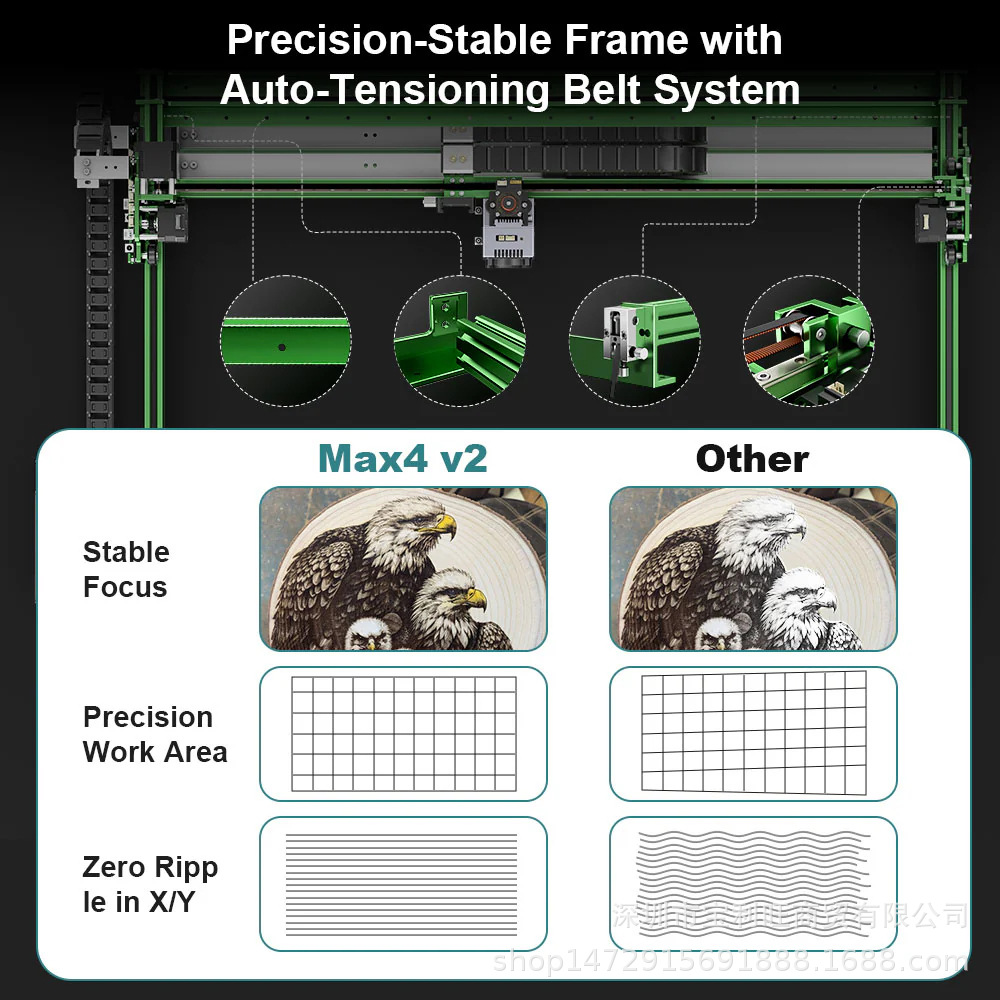

-一键式张力系统
-单螺杆张力调节，实现精确模型切割
-增强稳定性，实现航空级精度

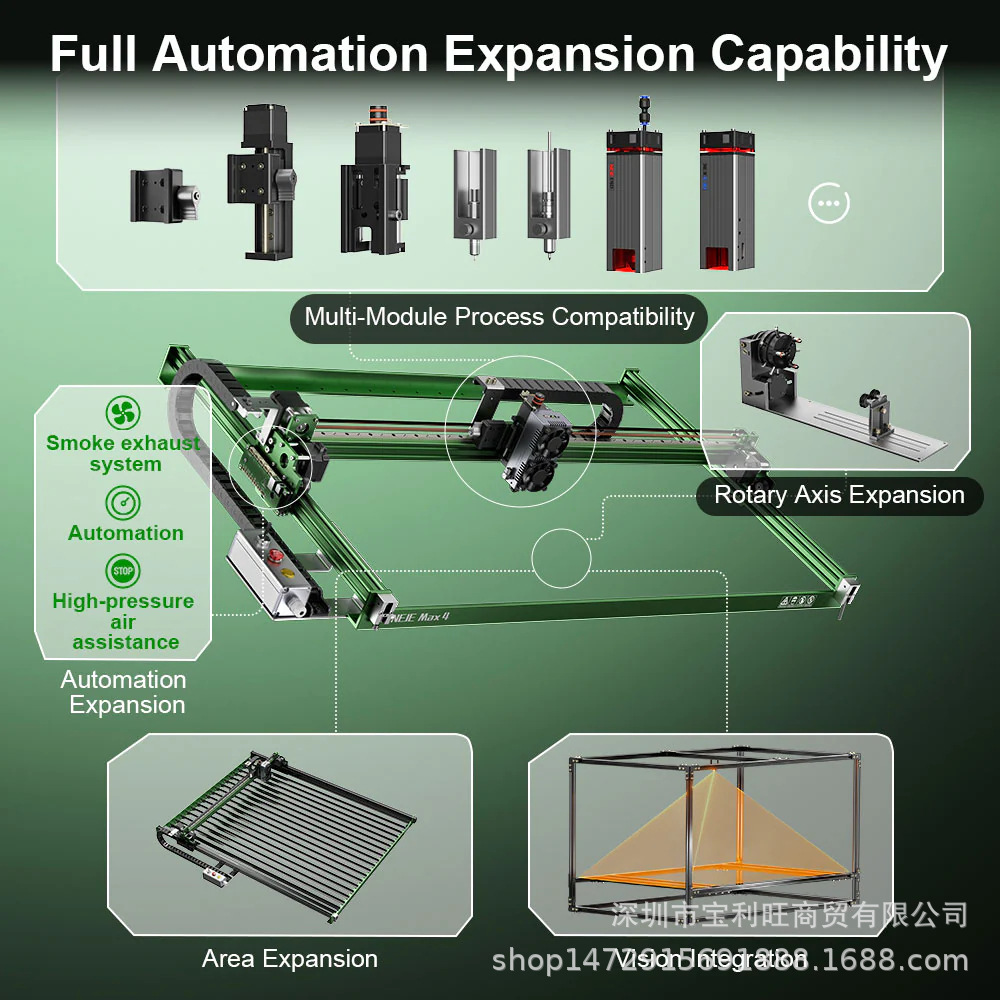

自动化扩展
-兼容 M8/M7 门外设控制
-继电器/高压阀模块，用于多工艺工作流程（切割+雕刻同步）
多工艺模块
-支持刀片、绘图笔、主轴和其他激光模块

规格

产品型号：NEJE Max 4 V2
设备尺寸：1034x607x180mm

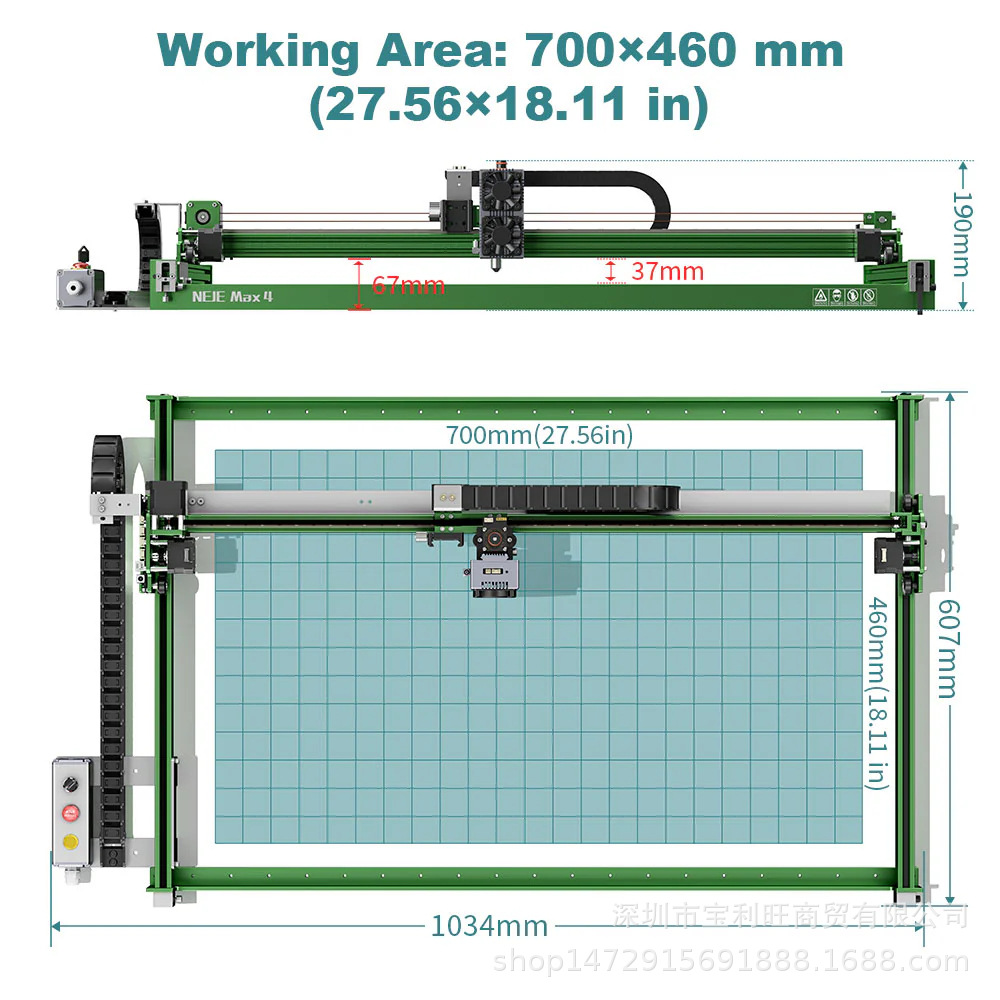

雕刻尺寸：700×460mm (27.6×18.1")，可扩展至 700×1030mm (27.6×40.6")
最大速度：1000mm/s，最大速度100,000 mm/s²
限位按钮：无，非接触式复位技术
重复精度：0.1mm
激光波长：455±5nm
调焦方式：电动Z轴，可自定义每个元素的焦点定位，手动调焦精度0.1mm。
光斑尺寸：90 µm*90 µm
激光输出功率：20W+

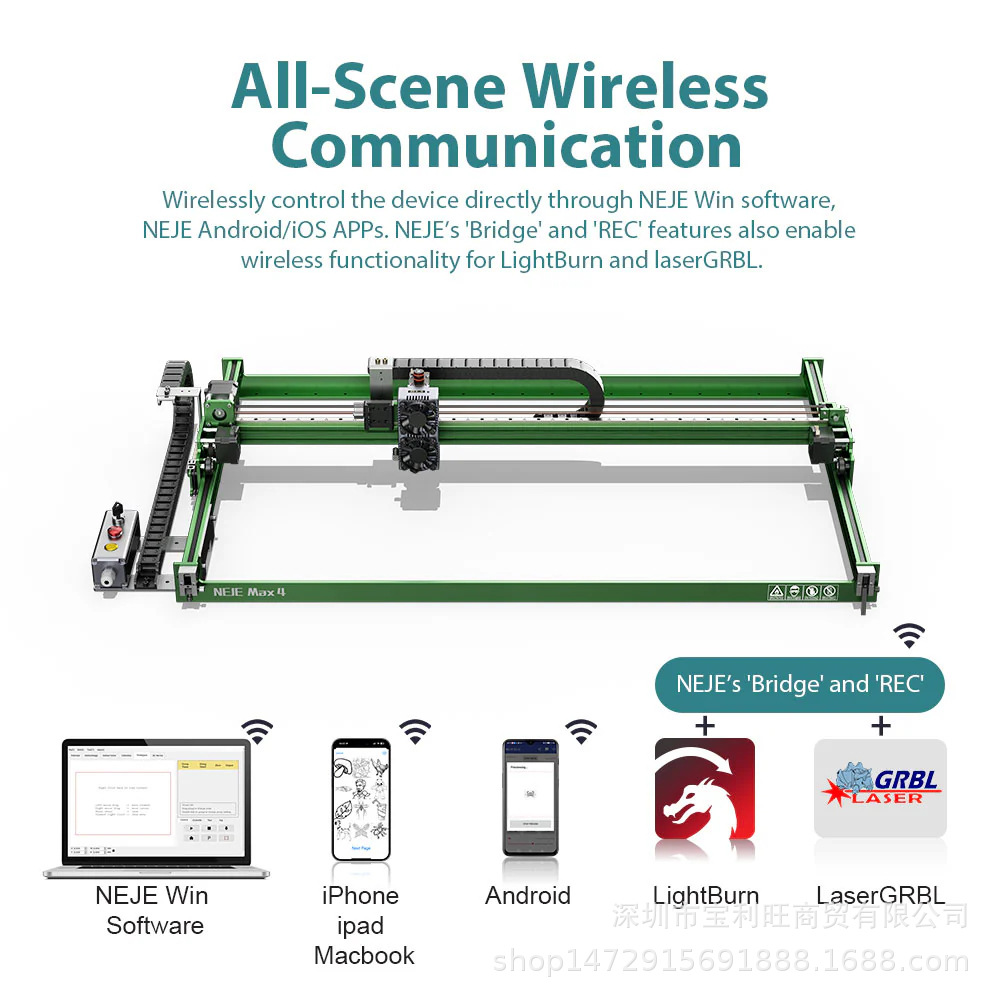

传输方式：BLE、USB
支持系统：iOS、Android、Windows、Mac
气流量：0-60 L/min
气流量电源：输入 100-240V AC，50/60HZ，输出 12V 3A
MEMS 防震保护：三级可调
内存：512MB
机器电源：输入 GaN 100-240V AC，50/60HZ，输出 24V 5A
质量认证：CE、FCC、RoHS、FDA、PSE
切割材料：0.15mm 钢板；木材和胶合板 < 30 毫米，中密度纤维板 < 10 毫米；皮革 < 4 毫米，PU/PVC 皮革 < 4 毫米；瓦楞纸板 < 18 毫米，硬纸板 3 毫米，刮纸、除草邀请纸、彩色 A4 纸、牛皮纸；乙烯基、无纺布、ABS 板 < 2 毫米 - 深色，彩色 PVC 板 2 毫米 - 深色；棉、亚麻、天鹅绒、帆布、涤纶织物、合成纤维织物；
软件与服务：LaserGRBL、LightBurn、NEJE Win Software（专业的多层控制软件，包含 NEJE“REC”功能和 NEJE“Bridge”功能）、NEJE App（安卓应用，安卓手机到电脑的无线传输工具；iPhone 和 Mac APP）、NEJE Cloud（内容服务平台）、NEJE OTA（无线软件和固件更新服务）

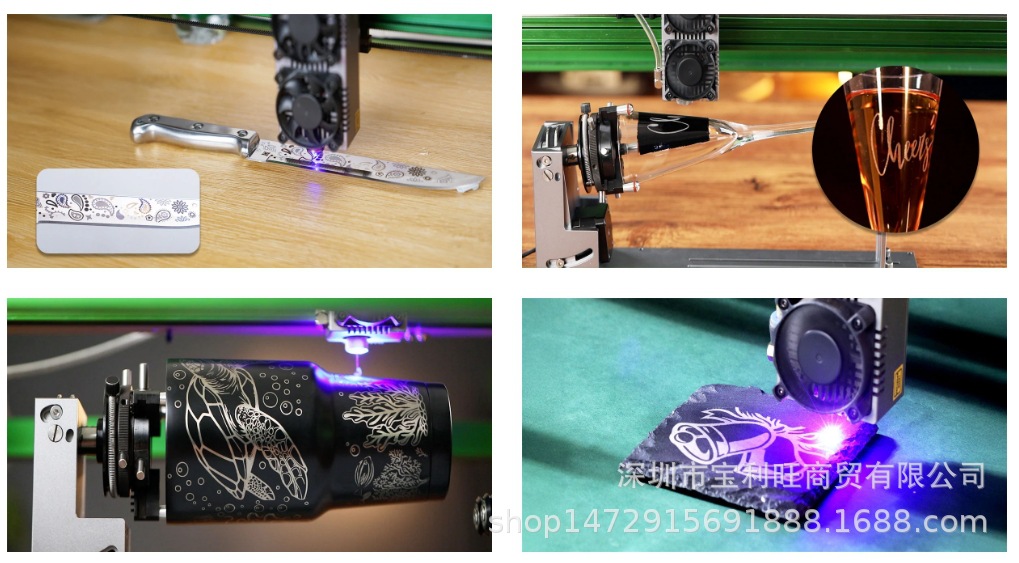

雕刻材料：木材、竹子、纸板、塑料、皮革、PCB 板、氧化铝、无反射电镀和喷漆金属、304 镜面不锈钢、玻璃、陶瓷、棉布、板岩；

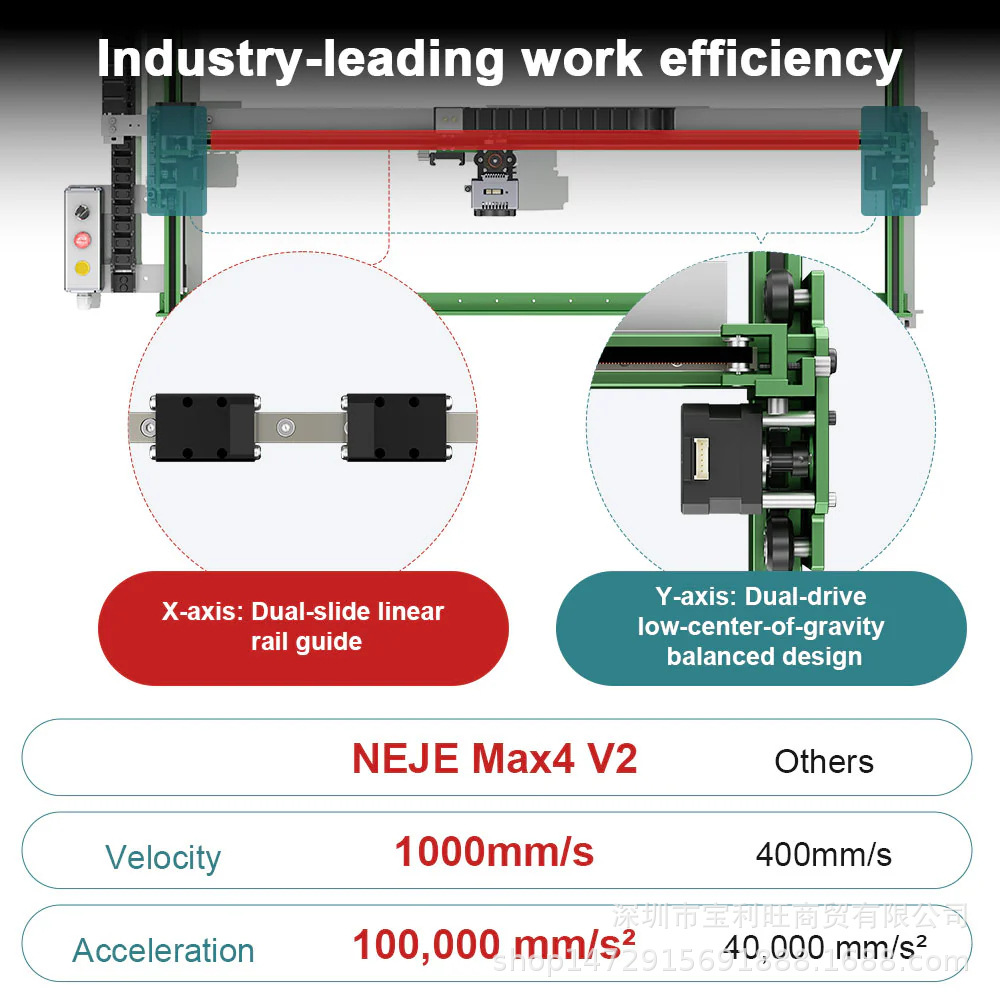

运动系统：X 轴：42mm × 42mm × 40mm 步进电机，Y 轴：双 42mm × 42mm × 30mm 步进电机（Y1 + Y2），Z 轴：28mm 步进电机，独立 A 轴参考接口，全 16 齿 2GT 同步带轮；

WHAT NEJE A40640 CAN BRING TO YOU?

A40640 (The most widely used module) is a classic creative master dual beam zoom laser module, it is the world's first 2 beam laser diode engraving and cutting module with zoom design, with the best metal engraving ability, fast groove engraving ability, thick material cutting compatibility, Make it the most widely used module. Due to the built-in NEJE unique fiber compression technology, It has a very strong energy density (0.04x0.06mm with 12W+ pulse and 11W continuous optical power),  There are very special and top artistic expressions on the carvings of stainless steel grayscale carvings, stone carvings, Glass Carving, hardwood reliefs, canvas art, and other materials.  The A40640 is the only high-power module with variable focus section, The optimized A40640 II has higher cutting reliability, The short focus is suitable for carving hard materials such as metal stone and cutting materials with high density such as mdf, The long focus has better depth of field and smaller included angle for cutting thick wood and other materials. The excellent design makes the A40640 have a very strong vitality from the first creator of high-power diode laser to today, Due to the high power density, it has an equivalent application higher than 20W (optical power) laser in large area image engraving, If you only consider 1 module to help you solve all the needs, it is the best choice.

E40‘S SPECIAL CAPABILITIES

E40(High Precision multi-function module) is a high-power dual beam fixed focus high-precision module. E40 module has extremely small incisions when cutting MDF boards, leather, acrylic, fabric, cardboard and other high-density materials less than 4mm, and the minimum gap between incisions is less than 0.06mm, At the same time, it can carve stainless steel, stone, glass, ceramics and other high-resolution materials with high-precision rendering capability, and the imaging effect is meticulous and accurate. It is a perfect high-power image rendering module. The NEJE E40 module adopts NEJE's unique external lens optical compression technology, which makes the focus energy density amazing, The energy density is 2 times higher than that of the 20W optical power module, so it has faster speed and precision in the actual engraving process. The incision in XY direction tends to be uniform, Therefore, you will get a more even effect when drawing lines. E40 module adopts more stable and reliable optical solution, which makes the service life of the E40 continuous cutting mode 40% longer than that of the ordinary laser module, and the service life of the E40 normal working mode (8 hours per day) even reaches 7 years. The NEJE team's goal for E40 is to become the next classic, You can always believe that it will constantly brings you more amazing projects.

E40 Laser Module
Focus: 0.06x0.06mm
Focus method: fixed focus( 3-5mm from the radiator )
Optical power: Pulse 11W+, CW 10W+
Max scanning speed: 1000mm/s (mdf material clear test results)
Compatible: compatible with any 24V or 12V equipment, independent power supply, controlled by ttl 2pin signal of the equipment
Wavelength: 450nm
Weight: 280g
Module Size: 40x48x130 mm
Input: DC 12V 4A
Interface: 4pin PH2.0 + ( 2pin DC12v extra power )
Compatible with: NEJE 3 Max, NEJE 3 Pro, NEJE 2s Max, NEJE 2s Plus, etc...
Power Control: PWM Power Modulation
Fan: Double Ball High Life Fan
Drive: NEJE Smart Quiet Drive, Built-in static elimination technology.
Surge Protection: Yes
Smart Feedback: Yes
Temperature Feedback: Yes
Temperature control: 45℃
Air pump: ACO 328+ air pump, or 30psi+ waterless air pump (used when cutting mdf / leather and higher density materials. Needle type air nozzle supports oily and water-containing air source, and sealed air nozzle can only use clean air pump)
Air interface: 4mm pvc trachea
Protective window lens: Yes ( withstand 1000℃ )
Original registered brand: Yes
A red copper efficient heat dissipation system is designed to effectively dissipate heat generated by electronic components, ensuring their optimal performance and longevity. The use of red copper in the heat dissipation system helps maintain stable and continuous power output.

Aresulting in high-quality laser engraving and cutting performance. The matrix photosystem design allows for precise control of the laser beam, ensuring that it is evenly distributed and focused on the desired area. This improves the energy efficiency of the system, as less power is wasted on unnecessary areas.

Additionally, the focus size of the laser beam is optimized to be as small as possible, allowing for intricate and detailed engraving. This is particularly important when working with small or delicate materials, as it ensures that the laser does not damage or burn surrounding areas.

The XY symmetry of the matrix photosystem design ensures that the laser beam is evenly distributed across the entire working area. This eliminates any inconsistencies or variations in engraving or cutting depth, resulting in a uniform and professional finish.

 Overall, NEJE's unique matrix photosystem design sets it apart from other laser engraving systems by maximizing energy efficiency, focus size, and XY symmetry. This leads to exceptional engraving and cutting performance, making it a preferred choice for professionals and hobbyists alike.

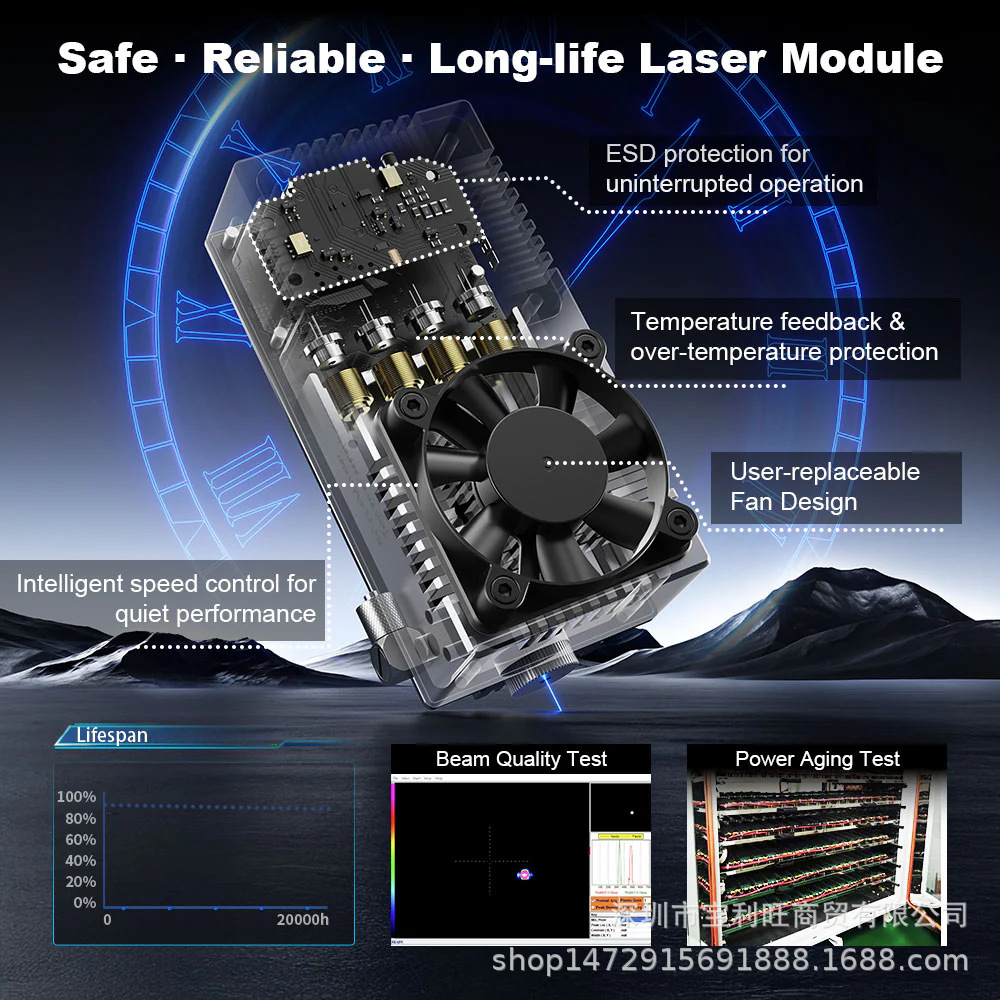

LONG LIFESPAN, HIGH PERFORMANCE, SAFER INDUSTRIAL MODULE

The design difference between NEJE 80 industrial modules and other high-power modules is that power is not the only criterion for a module’s performance.

NEJE E80 takes the pursuit of high life and absolute performance as the design concept, and chooses the most difficult manufacturing scheme. We believe that the life and performance of the module is the real value of the user to buy the E80 module, which makes the E80 have no advantage in power. The reason for stronger performance than other 6xLD and 8xLD; we did not choose 8xLD or 6xLD to release new products relatively quickly for marketing gimmicks. Destroying the original LD structure and reflective structure scheme can quickly manufacture new products, which may quickly win users. But this is against the values of the NEJE team.

The safety consideration of the high-power model is also a special emphasis of the NEJE team. The high-power model is particularly easy to burn during operation. It eliminates the need to optimize the focus and angle during the design process. NEJE Max 4 electric Z-axis control can be better. Safe control of high-power modules.

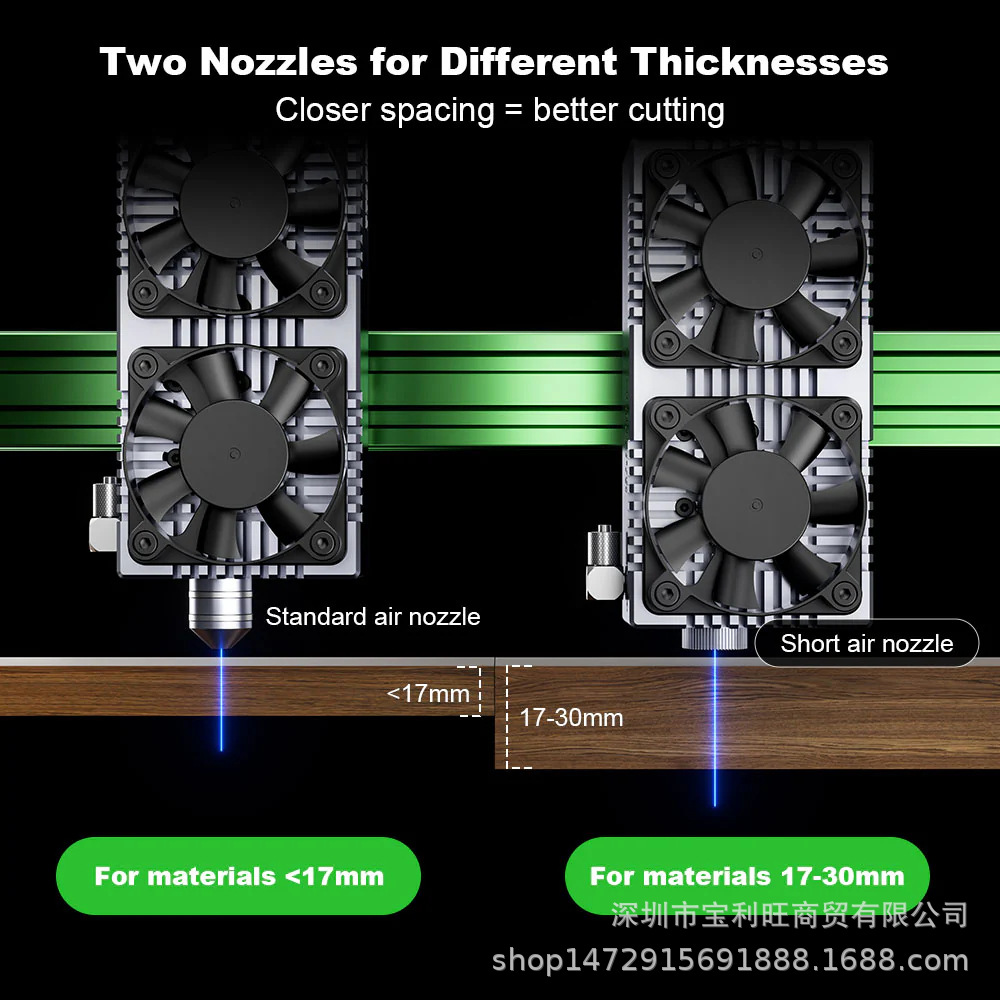

High-quality accessories designed to be compatible with various types of air sources and materials of varying thicknesses. These accessories boast a spare lens with 99.99% transmittance and exceptional resistance to temperatures up to 1000 ℃. The replaceable lens design enhances the durability of the module.

NEJE E80 - UNIQUE INDUSTRIAL PERFORMANCE AND DURABILITY MODULE

It adopts a unique solution that does not damage the original LD optical structure, retains the reliability and durability of the original LD, and has a service life up to 10 times longer than all other 20W output laser modules and CO2 modules. The production process of the E80 module is more complex, and currently only the NEJE team has completed batch manufacturing. It has a longer lifespan. Each module has an original SN registration number, and users can register SN registration information to enjoy after-sales protection of no less than 70% attenuation for up to 2 years. NEJE E80 has great advantages in terms of lifespan.

Hybrid compression technology makes the focal point of NEJE E80 0.06x0.06mm, the symmetrical XY shape make it achieve the ultimate in carving and cutting performance and the power density reaches 6666W/mm², Compared with 40W(output) module,power density:1777W/mm² (0.15x0.15mm,8xLD,Current highest power) , the performance of E80 is more higher than the 40W module. Due to the extremely strong power density and optical design (symmetrical XY shape), NEJE E80 has more excellent performance.

E80 Module

 特点

• 卓越的光学技术​ - 采用 NEJE 专有的复杂镜头光学系统，提供比 70W 激光器更高的焦点能量密度 - 轻松切割 0.15 毫米不锈钢，具有出色的精细切割精度。
• 优化的光束质量​ - 对称 XY 方形光斑图案可最大限度地减少碳化，从而实现干净、精确的切割，同时最大限度地减少热损伤。

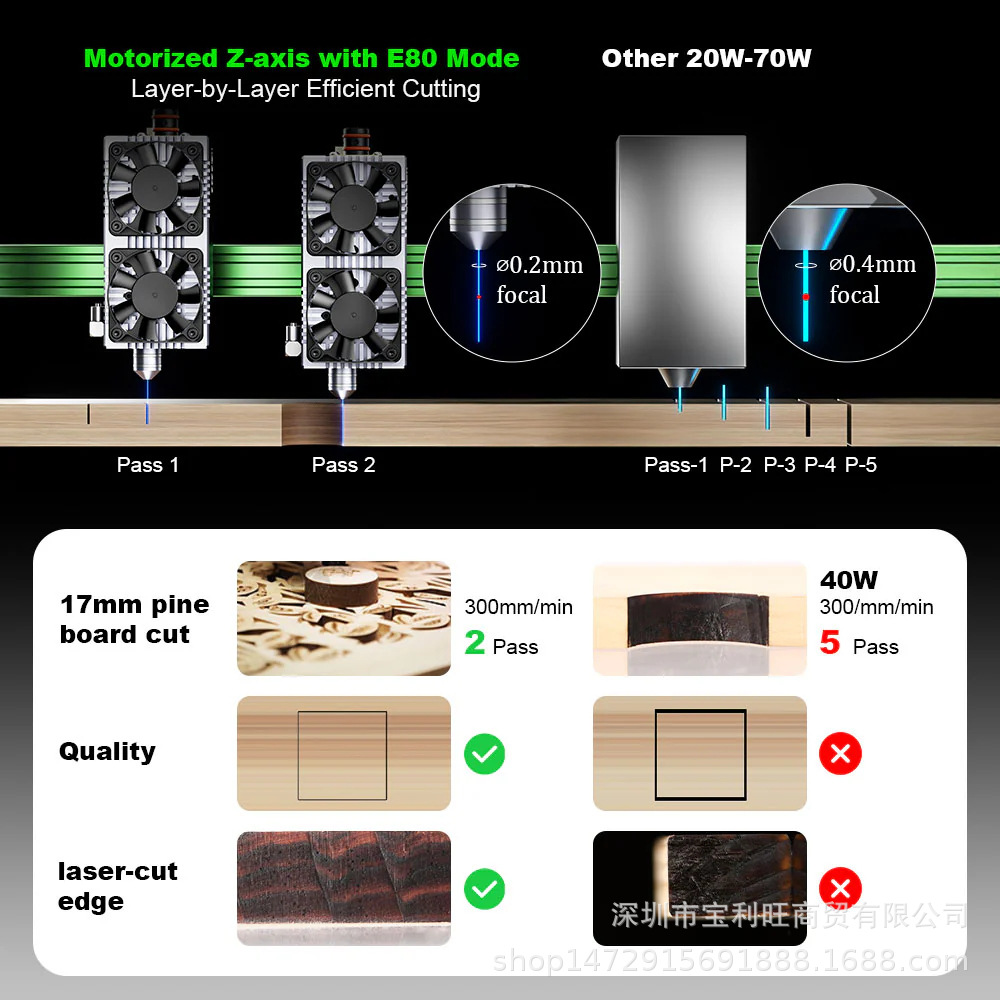

• ​​智能 Z 轴和多层切割​ - 具有多层切割模式的电动 Z 轴在 500 毫米/分钟的速度下对 20 毫米木材实现相当于 70W 的切割效率 - 无需高压辅助即可更安全操作并降低火灾风险。
• 卓越的工程和性能- 轻量化模块化设计，优化的机械结构和顶级的运动控制系统，可实现：
• 100,000 mm/s² 加速度
• 雕刻速度1,000mm/s
• 与体积更大的 70W 竞争对手相比，雕刻细节和质量更出色
• 工业级激光源​ - 原装日本日亚二极管激光器提供 100% 连续功率运行，性能不会下降。
• 增强耐用性和支撑性
• 现场可更换的冷却风扇设计
• 耐1000°C，99.9%光学镀膜保护窗
• 二极管行业唯一一家自主生产激光模块的品牌
• 2 年保修 + 终身零件支持
• 精密 CNC 结构- 全 CNC 加工框架，配有双直线导轨和经过特殊处理的龙门导轨，适用于：
• 运行平稳
• 高精度
• 使用寿命长
• 易于维护
• 多模块兼容性——支持各种应用模块，包括：
• 不同的解析系统
• 多波长模块
• 切割头
• 笔筒
• 主轴
• 等离子头

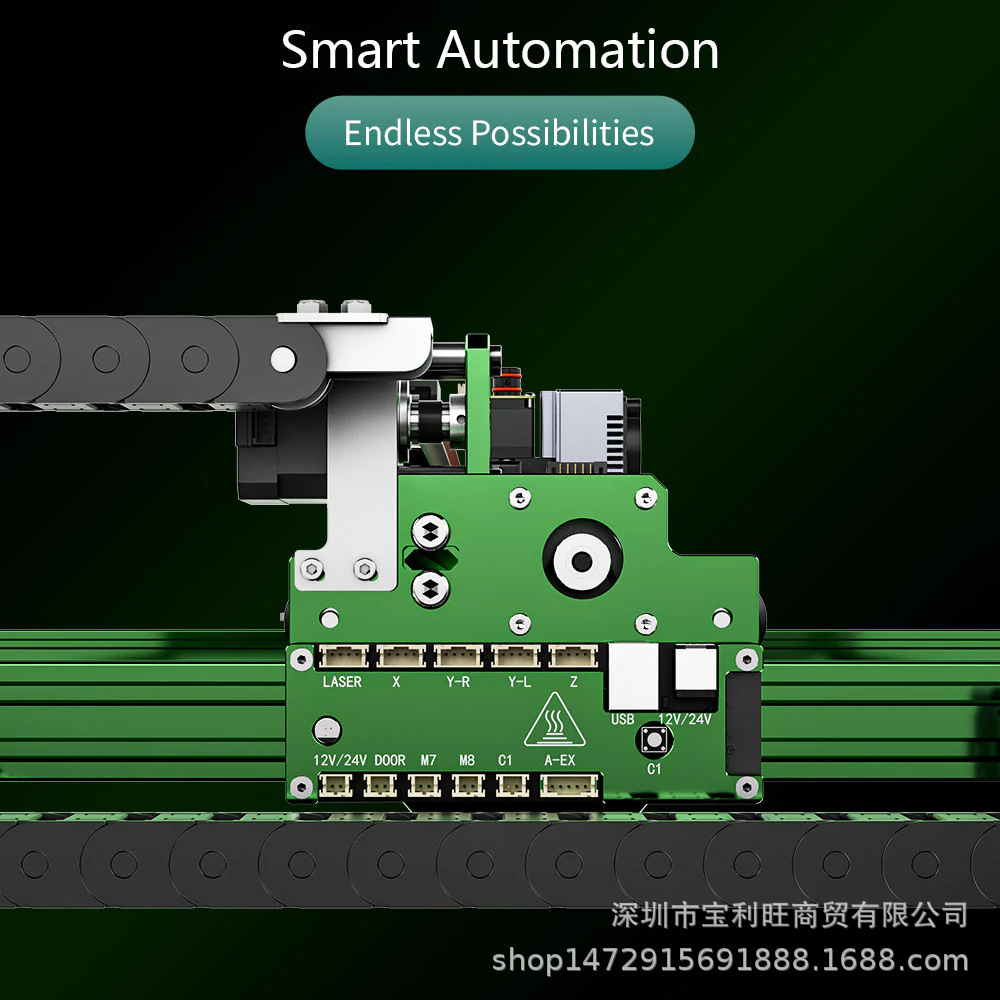

• 先进的自动化功能​ - 支持 M7/M8 门控制和独立 A 轴，以提高自动化能力。
• 用户友好型组装​ - 所有组件在发货前均经过工厂模块化测试，确保开箱即具有可靠的性能。
