M162 Высокоточный тестер LCR менее 1 евро сопротивление 15pF конденсатор 10 микро Heng индуктивность Быстрое измерение ЖК-дисплей

Описание

M162 LCR表是普通万用表的理想搭档，多数万用表欠缺对电容、电感和1欧姆以下小电阻的测量能力，而M162 LCR表正好弥补了这个缺陷。
M162有成品和套件2个版本，套件版的M162制作非常容易，不需要特别校准就可以达到大约1%的精度。
2.4'' 液晶显示屏。

产品重量：100克（含包装，不含外壳）
产品尺寸：105*65*15mm，
含外壳产品尺寸：111*76*25 mm (4.37"*3.0"*1.0")，
包装尺寸：115*95*27mm

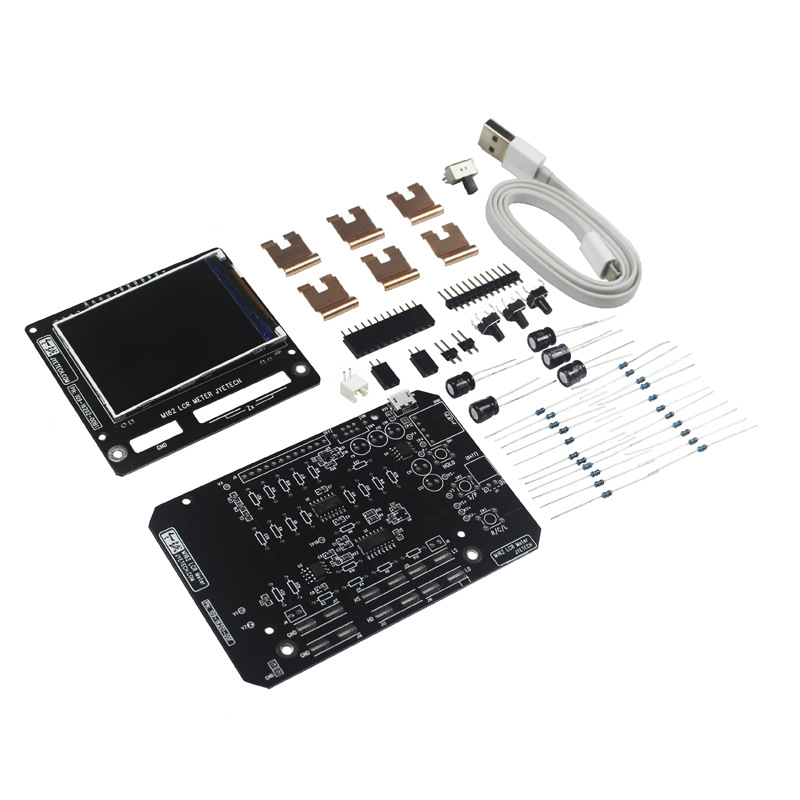

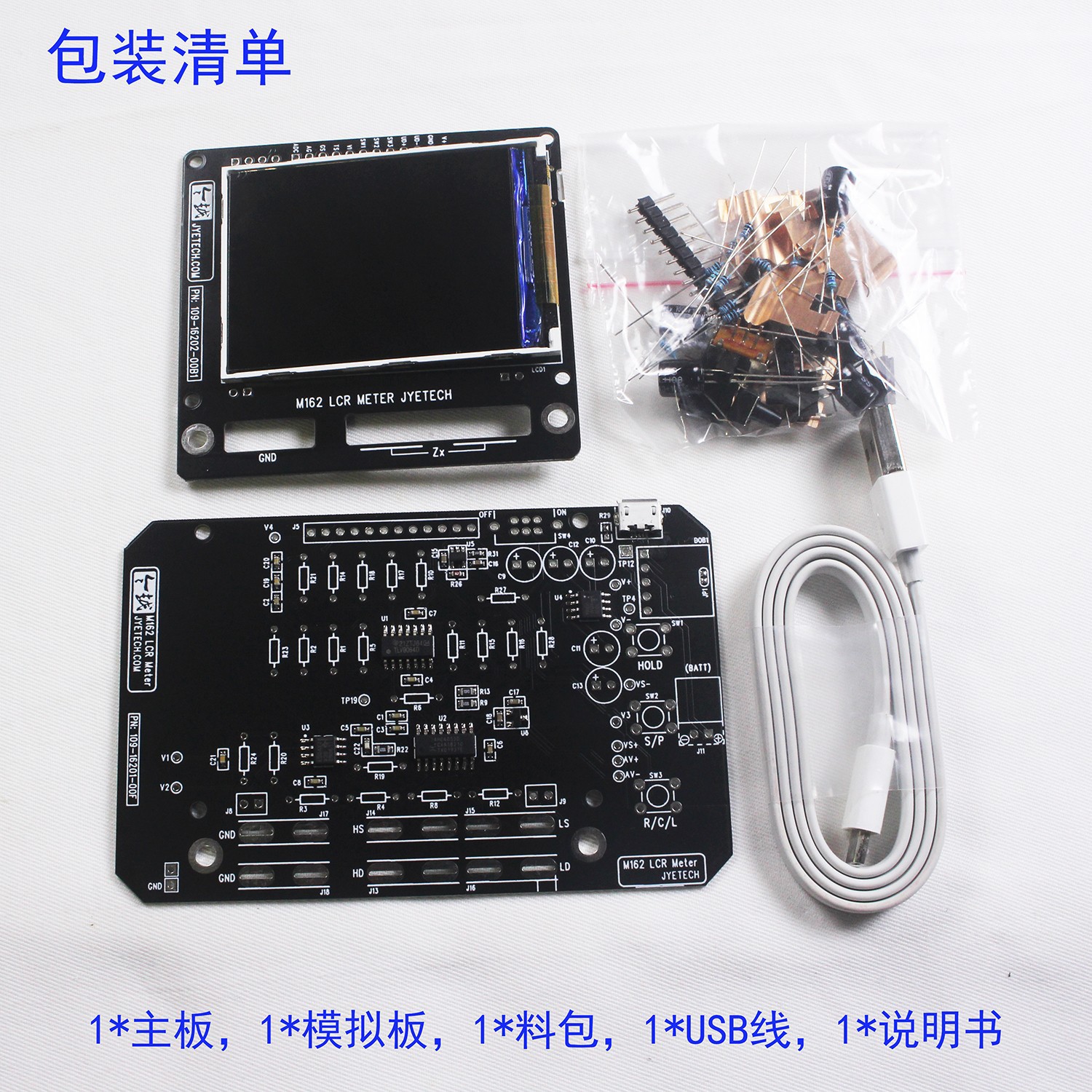

 发货清单：M162 套件

 ****************************************************

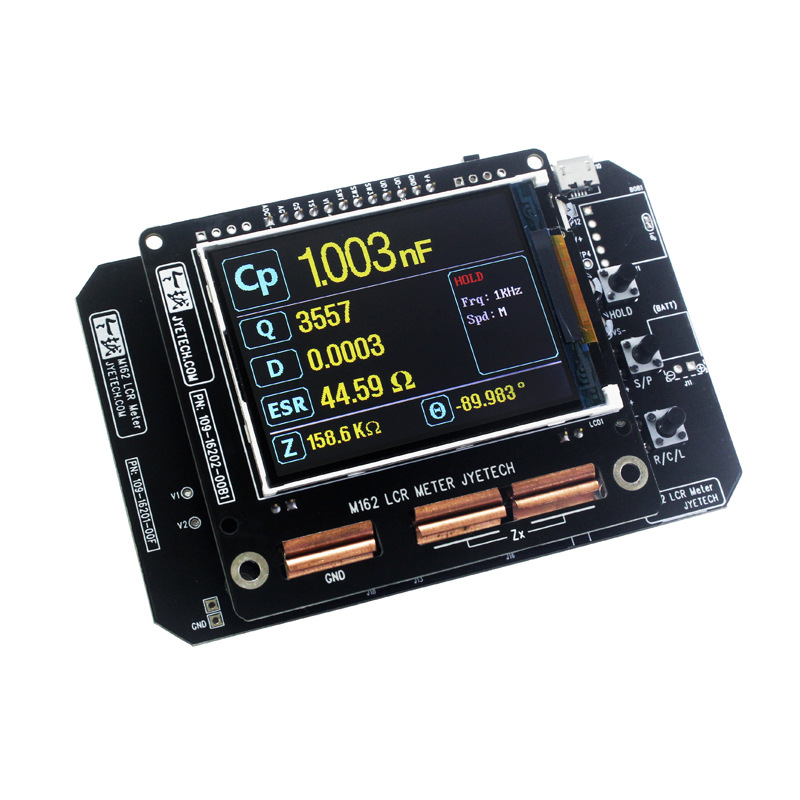

M162 LCR meter is a great complimentary tool to most multi-meters. Regular multi-meters are good in many way. But they usually have rather limited or even no ability for capacitance, inductance, and sub-ohm resistance measurement. The addition of a M162 LCR meter will overcome this deficiency. The DIY kit version of M162 is very easy to build. No special calibration is required to achieve ~1% accuracy.

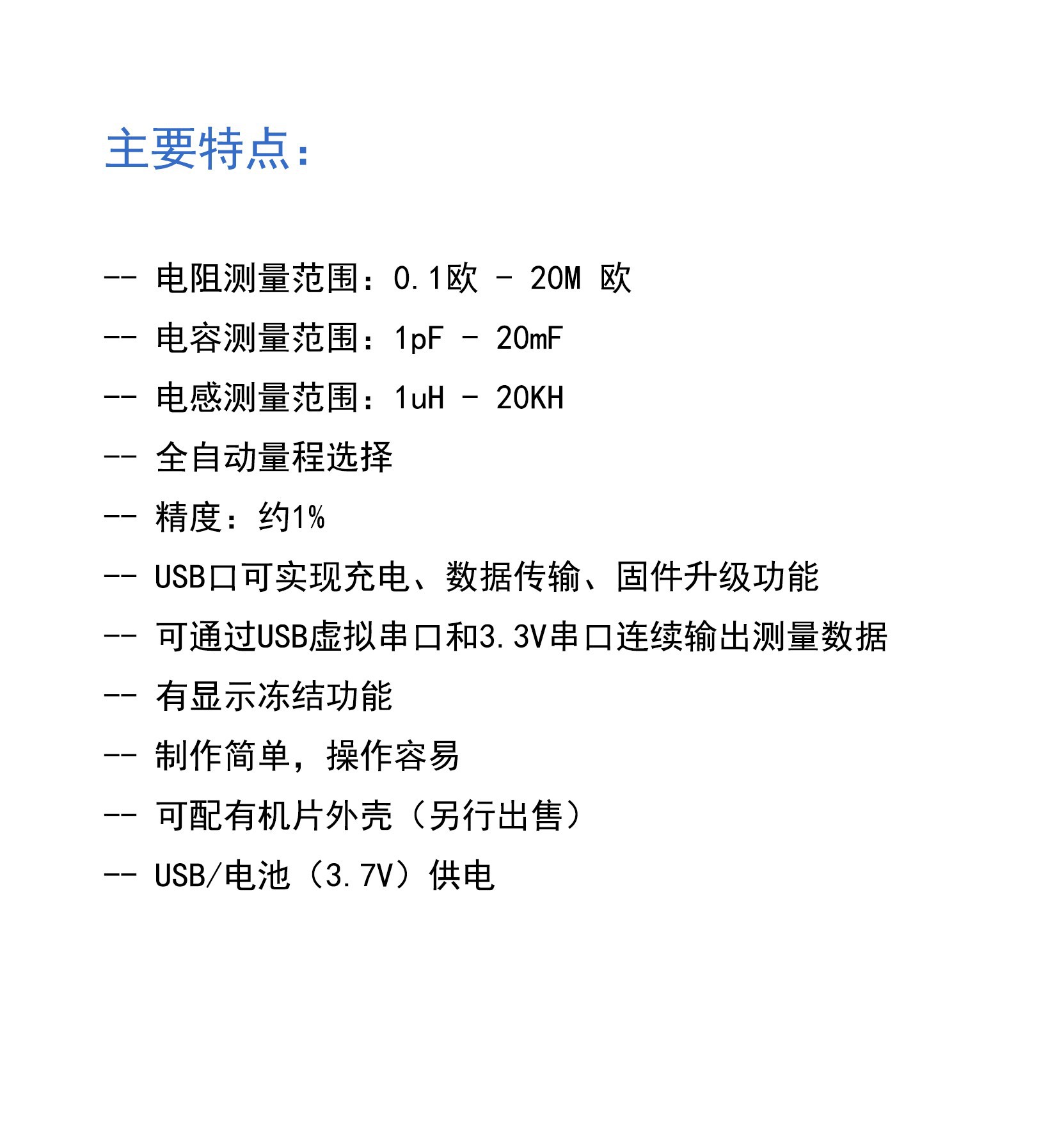

Highlights of M162 LCR Meter:

Resistance range: 0.1ohm — 20M ohm

Capacitance range: 1pF — 20mF

Inductance range: 1uH — 20KH

Fully automatic ranging

Accuracy: about 1%

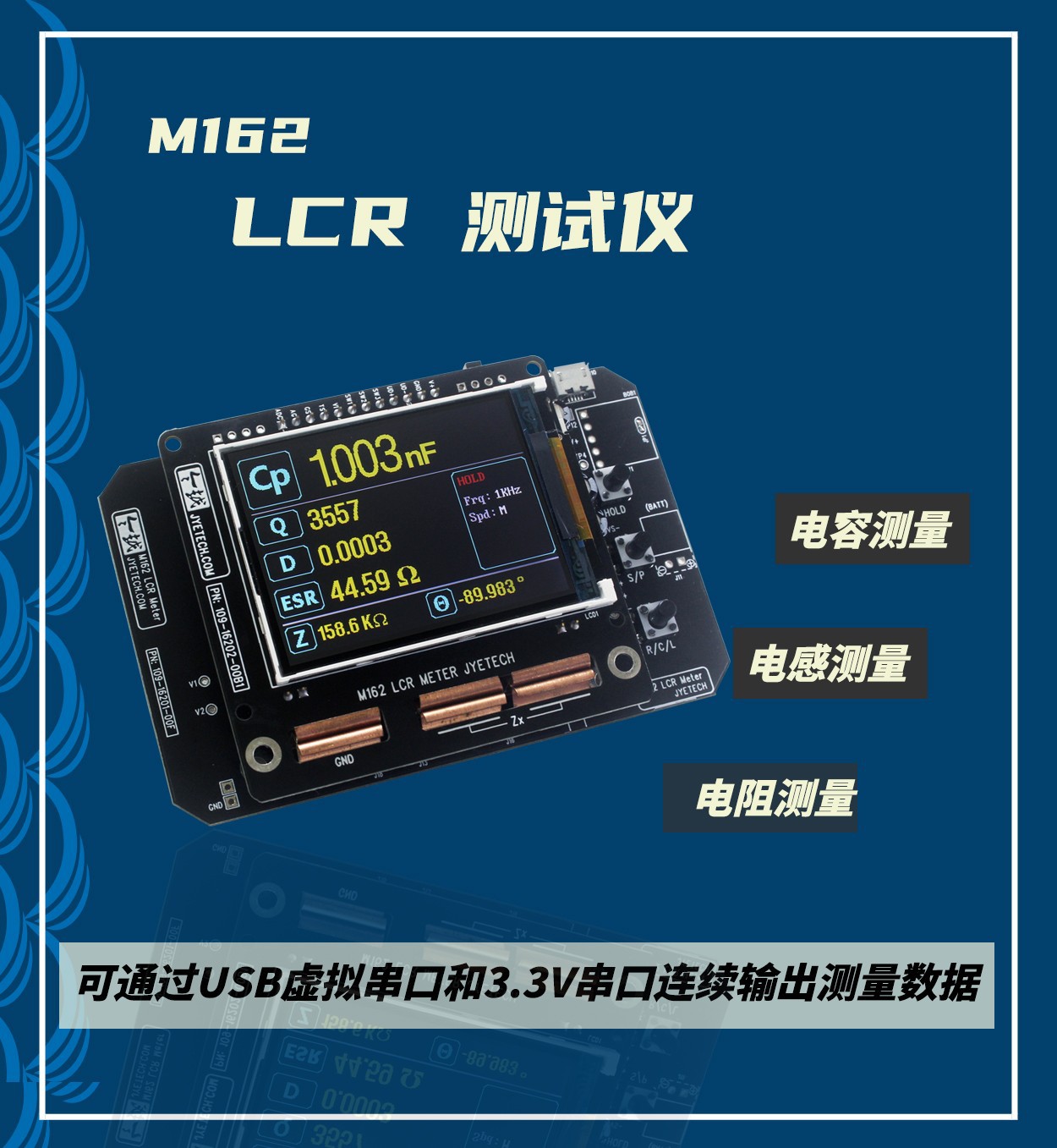

Built-in virtual USB comport for data output and firmware upgrade

Serial data output via USB comport or direct LVTTL

Display HOLD function

USB/Battery powered

Easy to build, easy to use

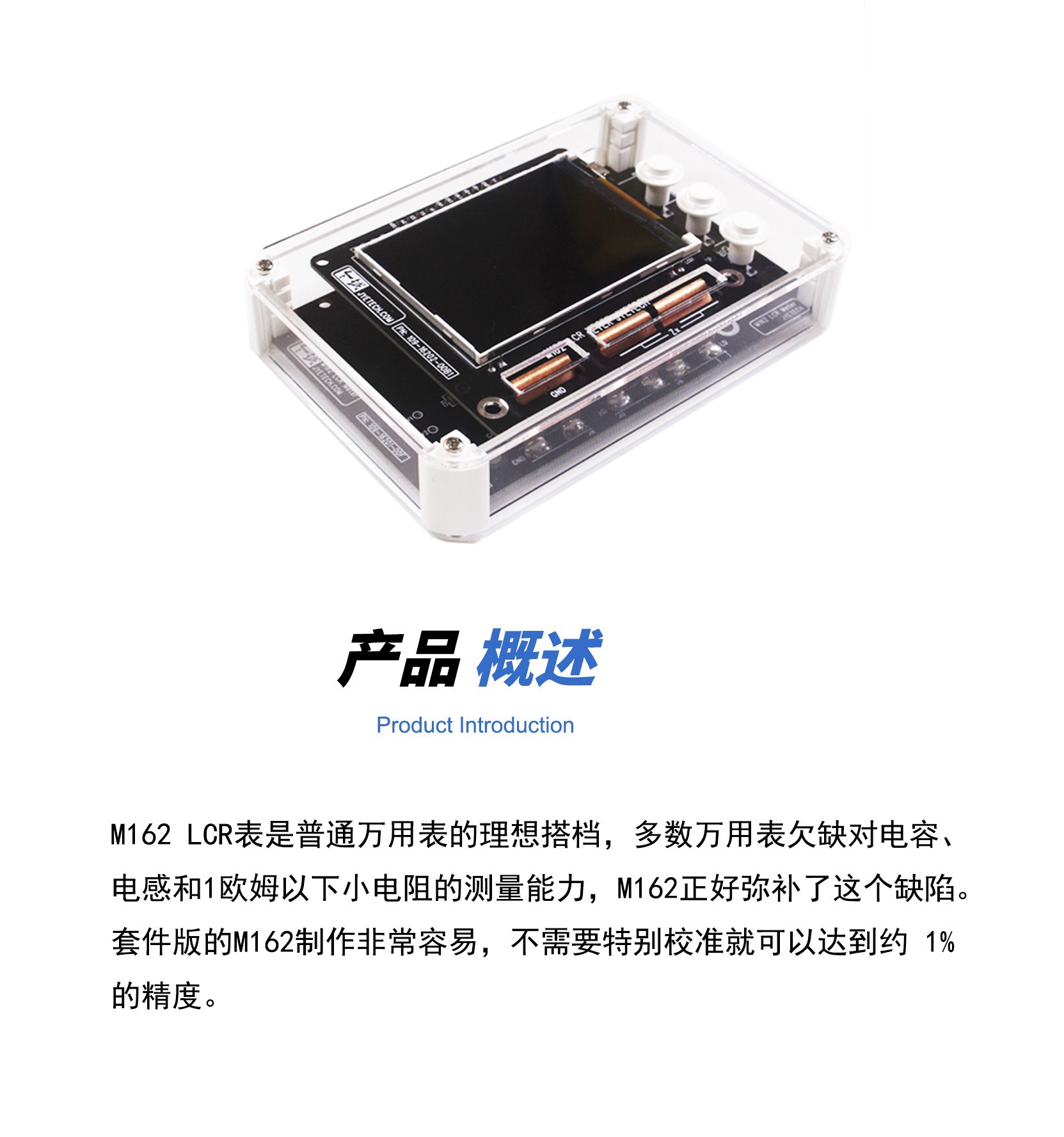

Optional acrylic enclosure (sold separately)

 Specifications

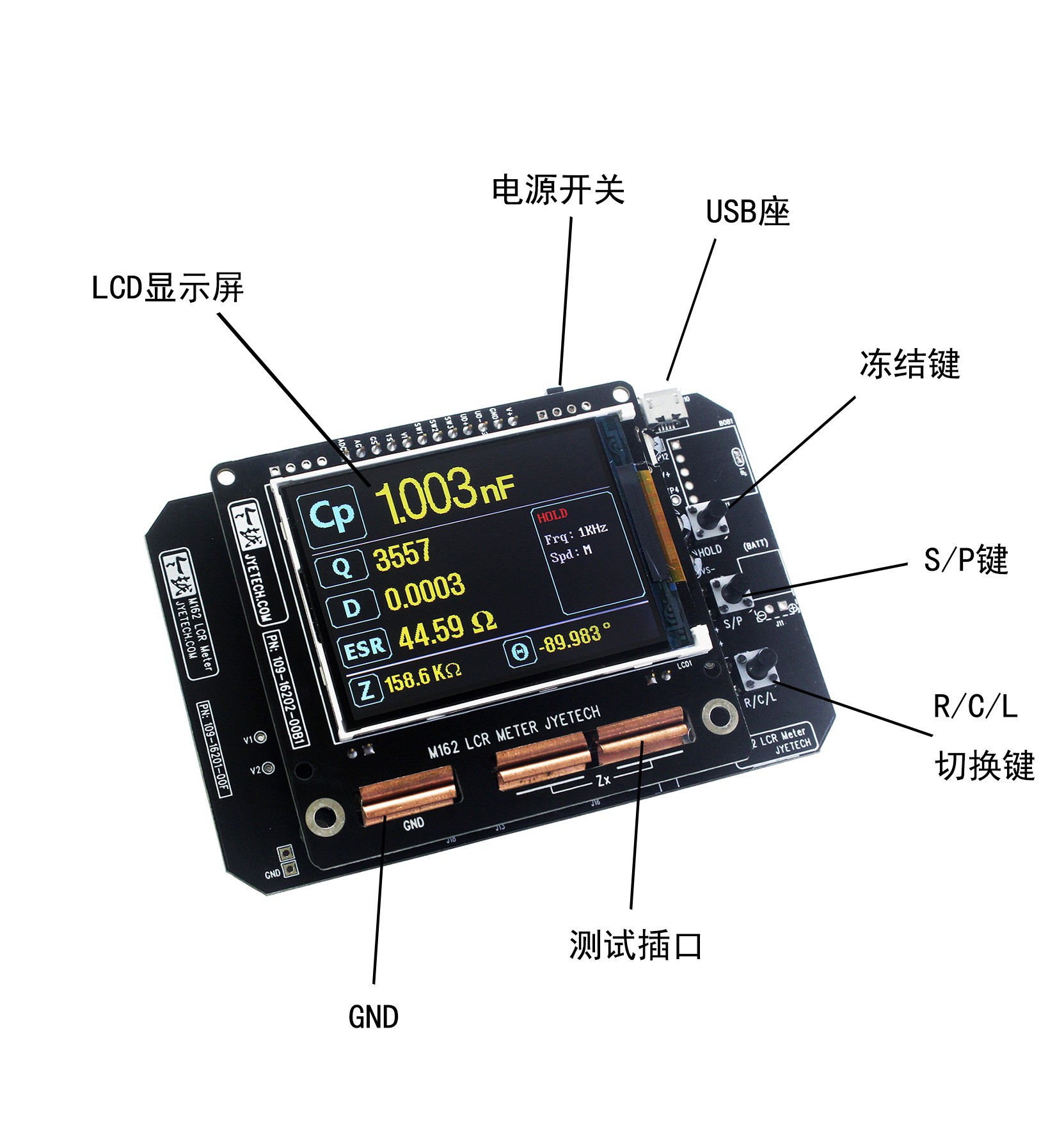

Display

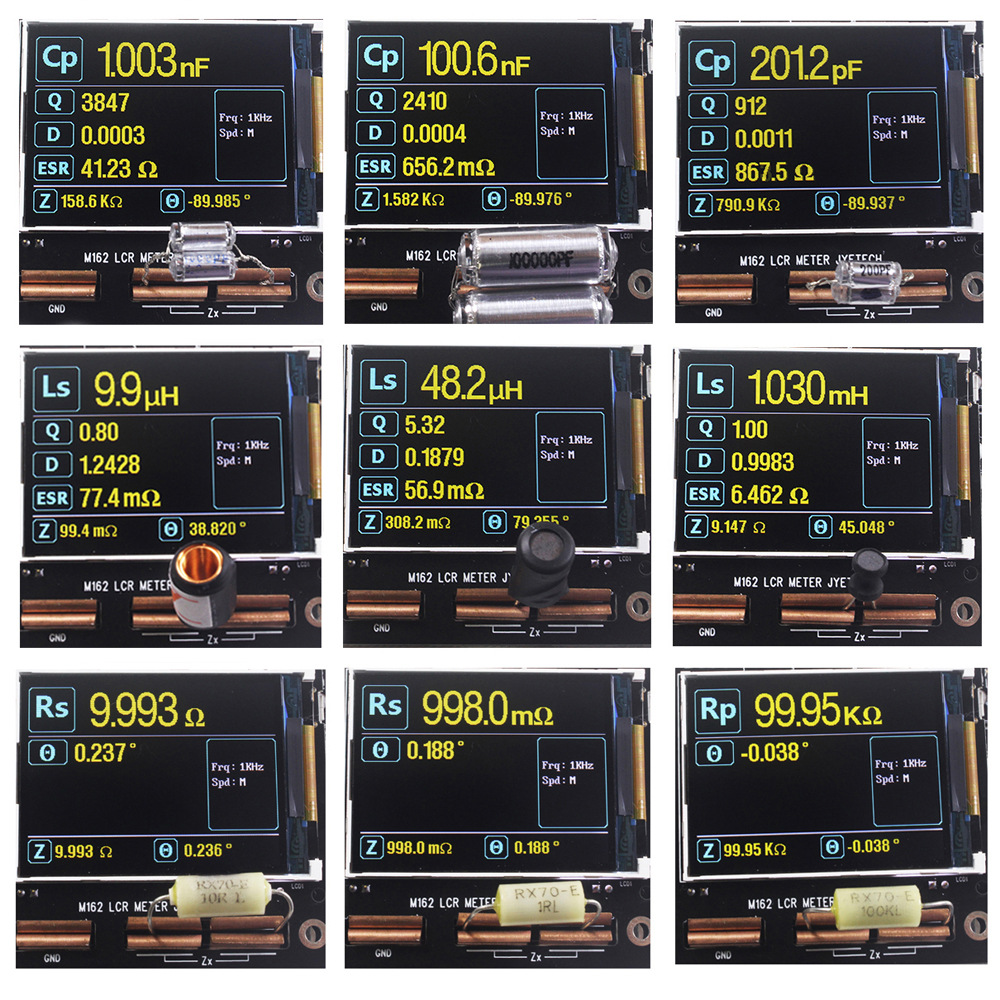

• Primary: R, C, L
• Secondary: Q, D, ESR
• Equivalent Circuit Mode: Parallel or Serial
• Primitive Data: |Z| and Θ, or Rs and Xs

 Measurement Range and Accuracy

• R, |Z|: 0.1Ω - 20MΩ
• C: 1pF - 20000μF
• L: 1μH - 20000H
• Q, D: 0 - 10000
• Θ: -90° - 90°
• Accuracy: About 1% (tested for resistance 1Ω - 1MΩ)

Measurement Conditions

• Test Frequency: 100Hz, 1KHz
• Open Voltage: 0.5Vpp

Miscellaneous

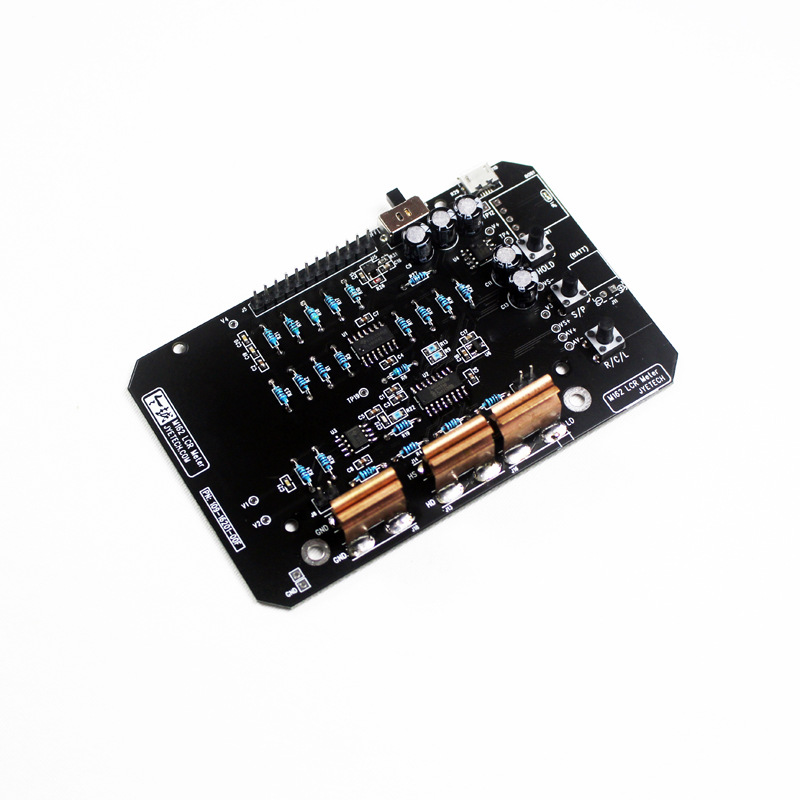

• Measurement Connections: 4 Kelvin wires on the test terminals
• Ranging: Fully automatic
• Compensations: Open, Short
• Serial Data Output: Yes
• Power Supply: USB or battery
• Power Consumption: < 100mA @ 5V

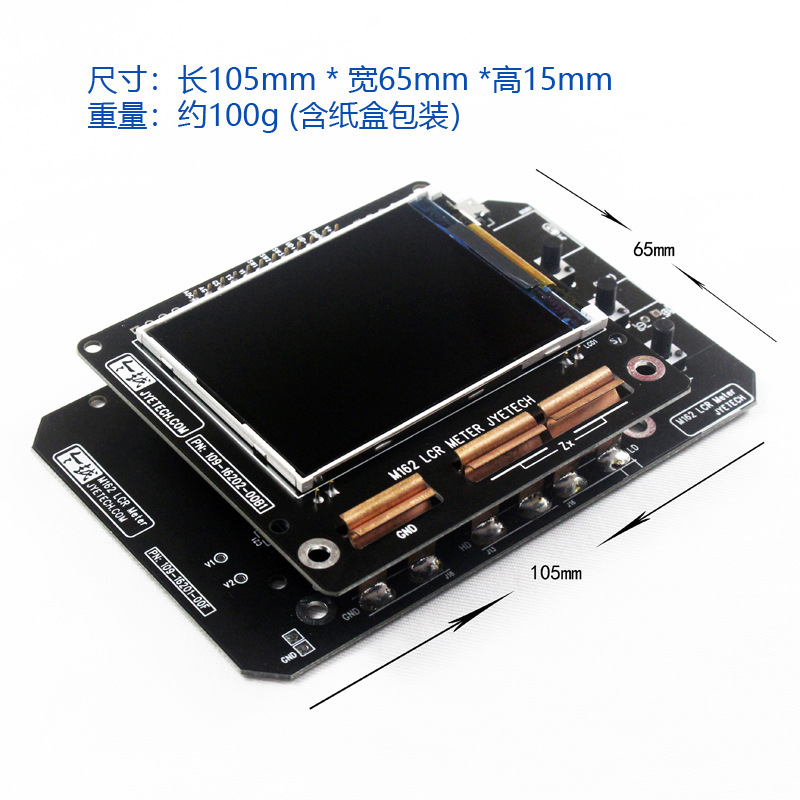

• Product size：105*65*15mm
• Including housing dimensions: 111 x 76 x 25 mm (4.37" x 3.0" x 1.0")
• Package size：115*95*27mm（Kit, without housing）
• Weight: 100g
