Описание
Scotchcal
Graphic Film Series 2008
Description
Advantages
•
Screen printable
•
High Gloss
•
Exterior, long term durability
•
Dimensionally stable
•
Permanent
Applications and Uses
Film series 2008 is intended only for use with the listed
Compatible Products and the following applications. Any
other application is NOT warranted by 3M or covered by
the worldwide 3MMCSWarranty unless 3M gives its
prior written approval for the application.
•

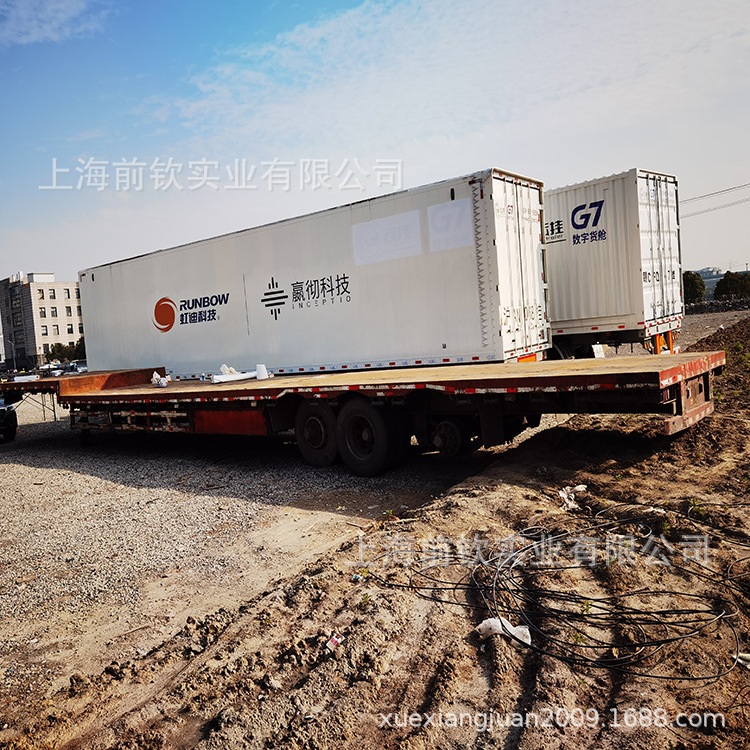

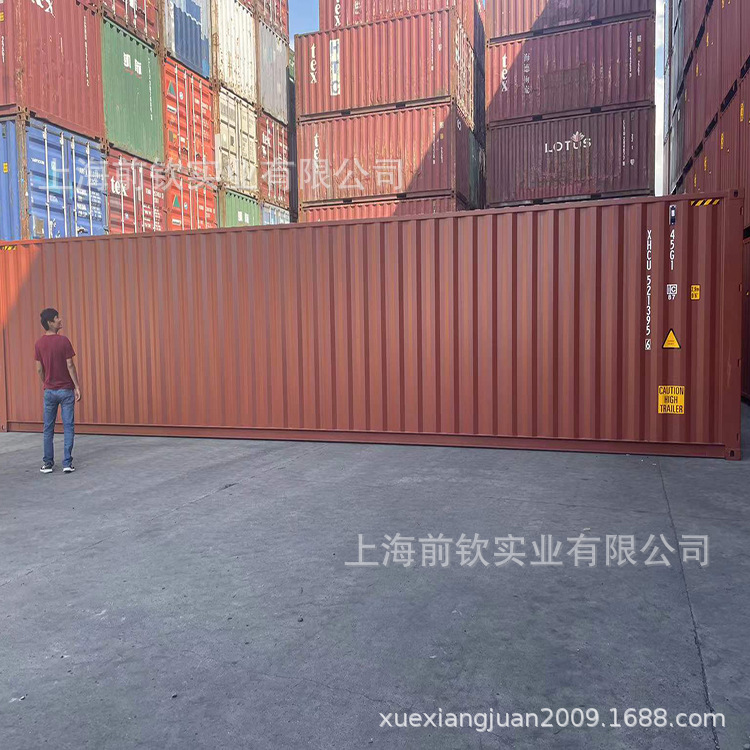

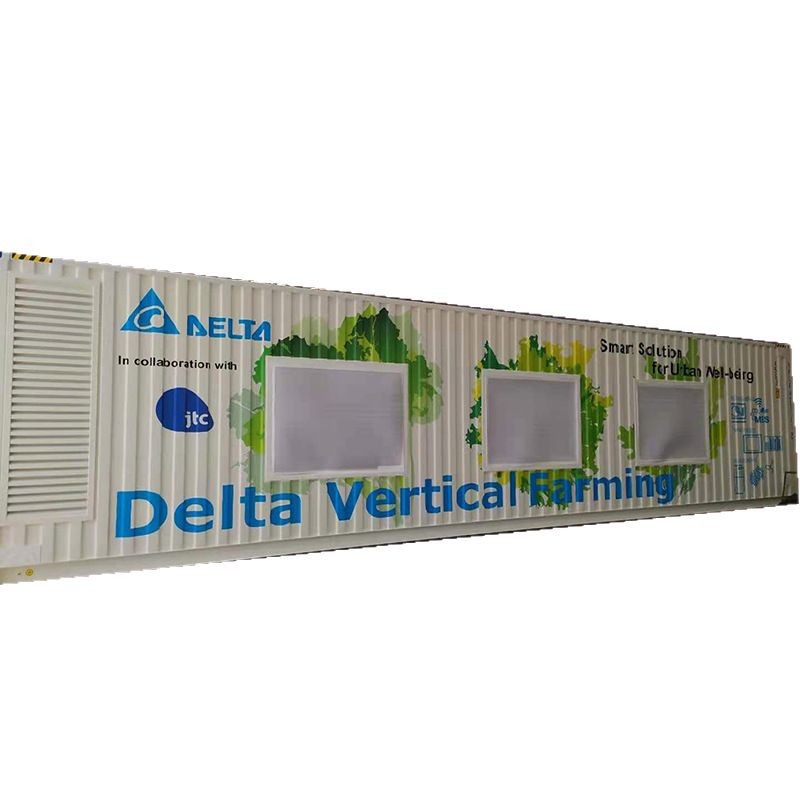

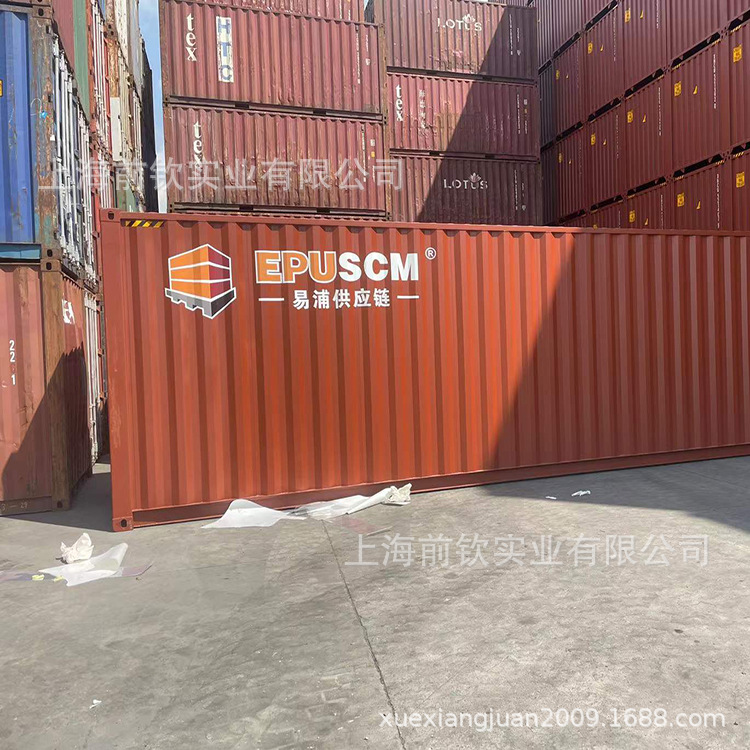

Shipping containers
•
Exterior graphics and signs
•
Interior graphics and signs
•
Information labels
•

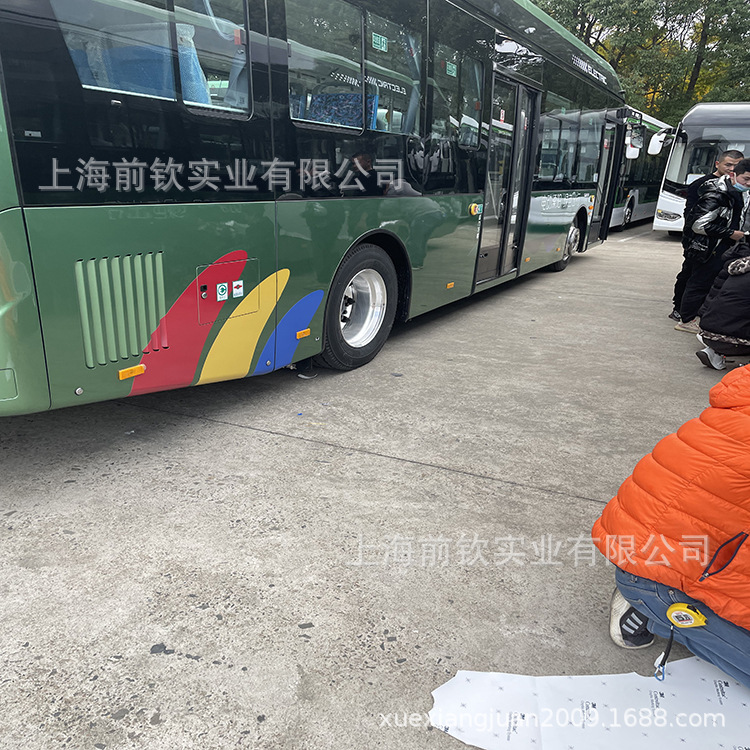

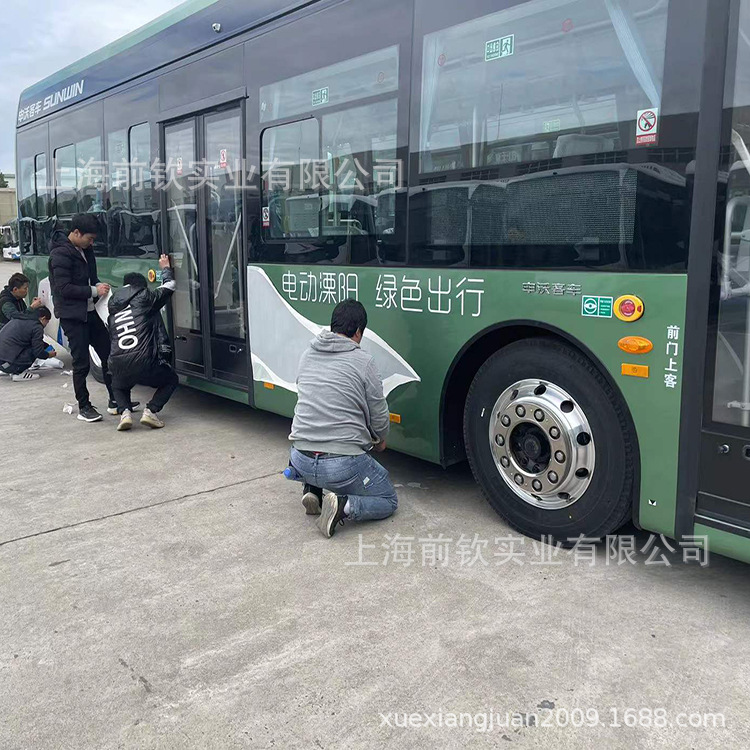

Commercial vehicle and fleet graphics and emblems
Limitations of Uses
The following uses and applications are specifically NOT
warranted.
•Application to severe corrugated surfaces
•
Graphics made for automotive Original Equipment
Manufacturers (OEM); contact 3M Automotive Divi
sion at 1-800-328-1684, Ext. 444, for alternatives.
Compatible Products
•
3MScotchcalScreen Printing Ink Series 1900
•
3MScotchcalScreen Printing Ink Series 9700 UV
•
3MScotchcalFour Color Screen Printing Ink
Series 9700 UV
•
Selected 3M application tapes
Characteristics
Characteristic
Description
Colors
2008–10 White
2008–12 Black
Film
4 mils (0.10 mm) vinyl
Thickness with
adhesive
5 to 6 mils (0.12 to 0.15 mm)
Adhesive
Pressure sensitive
Adhesive color
Clear
Liner
98.5 pound, polyethylene-coated
paper
Application sur
faces
Flat, with and without rivets, minor
surface welds and ribbing
Recommended
substrates
Glass, metal, paint, fiberglass rein
forced plastic, rigid plastic
Application tem
perature range
3°C to 38°C (37°F to 100°F)
(air and substrate)
Removability
Permanent2–Product Bulletin 2008
Note: For the full product names of the 3M products listed
on this page, please see page 1.
Effective Performance Life
The effective performance life is based on field experience
and exposure tests conducted globally by 3M. When the
graphics are processed and used according to the 3M rec
ommendations, they should have the performance life
shown in the table below. The actual performance depends
on the:
•Use of compatible products
•
Ink formulation and drying methods
•
Proper selection and preparation of the substrate
•Application methods
•Angle and direction of exposure
•
Environmental conditions
•
Cleaning methods
Warranted Durability
Container Graphics
Ink Series
Clear Coat
Film 2008–10
worldwide
Film 2008–12
worldwide
Unprinted
None
7
7
1900
1920 air dried
1920 oven dried
5
6
NR
NR
9700UV, line color
9720UV
7
NR
9700UV metallic
9720UV
7
NR
9700UV, four color
9720UV
7
NR
Vehicle or Sign Graphics
Film 2008–10
Film 2008–12
Ink Series
Clear Coat
U.S.1
U.S. Desert
Southwest2
U.S.1
U.S. Desert
Southwest2
unprinted
unprinted
5
3
5
3
1900
1920 air dried
1920 oven dried
5
5
3
3
NR
NR
9700UV, line color
9720UV
5
3
NR
NR
9700UV metallic
9720UV
5
3
NR
NR
9700UV, four color
9720UV
5
3
NR
NR
NR = Not Recommended
1For warranty periods outside the United States, contact the 3M sales organization for that country.
2The U.S. Desert Southwest includes Arizona, New Mexico, and the desert areas of California, Nevada, Utah, and Texas.
A detailed map is available by request.
Screen Printing
To get the durability given in the Effective Performance
Life section, use the correct combination of ink and over
print clear. Carefully follow the processing directions.
Check the appropriate Product Bulletins and Instruction
Bulletins for the limitations of each particular ink. Refer to
the 3M Related Literature section on page 4.
Compatible Inks
Refer to Compatible Products on page 1.
Exceptions
•Unprinted film 2008–10 may chalk in some severe ex
terior applications. If possible chalking is critical, the
film must be overprinted with overprint clear 1920DR
or 9720 UV. The expected durability is the same as for
the ink being applied to the film.
•
Graphics exposed to abrasive washing conditions,
harsh cleaners or chemicals required an overprint clear.Product Bulletin 2008 –3
Note: For the full product names of the 3M products listed
on this page, please see page 1.
Cutting
The following are common cutting methods for this film.
See Instruction Bulletin 4.1 for details.
•
Bandsawing
•
Hot kiss cutting
•
Drum–typee electronic
cutting
•
Flat–bed electronic
cutting
•
Guillotine
•
Hand cut
•
Cold and hot steel–rule
die cutting
Premasking and Prespacing
The type of application tape to use depends on the type of
graphic produced and the ink or clear coat that was applied
last. See Instruction Bulletin 4.3 for details.
•Use a prespacing application tape if the graphic has
large amounts of the liner exposed.
•Use a premasking application tape if very little of the
liner is exposed.
Clear Coayt
Prespacing
Tape
Premasking
Tape
Unprinted
SCPS–2
SCPM–3
1920DR
SCPS–2
SCPM–3
9720 UV
9700 UV(no overprint clear)
SCPS–53X
SCPM–44X
Application
Refer to the 3M Related Literature section for a list of avail
able application bulletins. The following are application
details specific to film series 2008.
Temperature
The air and substrate application temperature range for this
film is 3°to 38°C (37°to 100°F) for flat and riveted sur
faces.
Positioning
This film has a pressure–sensitive adhesive. On vehicles
and shipping containers, do not use detergent and water or a
commercial application liquid to position the graphic.
Finishing
If an application requires edge sealing, use edge sealer
3950.
Removability
Film series 2008 is not a removable film. Removal requires
a solvent–based, heat or mechanical remover system.
Shelf Life, Shipping, and Storage
•Unprocessed film has a shelf life of two years after
receipt. Processed film has a shelf life of one year.
However, the total shelf life of a graphic before and
after processing cannot exceed two years.
•
Store the film in a clean, dry area in the original con
tainer.
•
Store the film out of the direct sunlight and at less than
38°C (100°F).
•
Ship the finished graphic lying flat or in a roll. To roll
the graphic, roll it film side out onto a core that is 5
inches (127 mm) or larger in diameter. These methods
help prevent the film and premask from wrinkling or
popping off the liner.
Health and Safety
!Caution
When handling any chemical products, read the
manufacturers’ container labels and the Material Safety
Data Sheets (MSDS) for important health, safety and
environmental information.
To obtain MSDS sheets for 3M products:
•
By fax, call 1-800-364-0768 in the US and Canada
or 1-650-556-8417 for all other locations.
•
Electronically, visit us at http://www.3M.com/
MSDS.
•
By mail, or in case of an emergency, call
1-800-364-3577 or 1-651-737-6501.
When using any equipment, always follow the
manufacturers’ instructions for safe operation.
Product Data
Values given are typical for film series 2008 and are not for
use in specifications. For a custom specification, submit a
request to your 3M sales representative. The data given be
low is for unprinted film.
Physical Characteristics
Property
English Units
Metric Units
Tensile strength
(minimum)
2000 lbs. Sq. In.
15 N/mm2at
23°C
Applied shrink
age
< 0.019 inch
< 0.5 mm
Service tem
perature range
–12°to +176°F
–30°to +80°C
Chemical Resistance Characteristics
•
Resists mild alkalis, mild acids and salt.
•
Excellent resistance to water.4–Product Bulletin 2008
Adhesion Characteristics
Substrate
English Units
pounds/inch
Metric
Units
N/25mm
ABS
3.6
16
Acrylic enamel
3.6
16
E&D A1
3.6
16
Chrome
4.0
18
Fruehauf prepainted
panels
3.6
16
Warranty and Limited Remdy
The following is made in lieu of all other express or implied
warranties, including any implied warranty ofmerchant
abilityor fitness for a particular purpose:Film series 2008
is warranted to be free of defects in materials and manufac
ture at the time of shipment and to meet the specifications
stated in this Product Bulletin. 3M will replace or refund
the price of any 3M materials that do not meet this warranty
within the specified time periods. See the worldwide 3M
MCSWarranty Bulletin, which gives the terms and limi
tations of the warranty.
These remedies are exclusive. In no case shall 3M be
liable for any direct, indirect, or consequential damages,
including any labor or non–3M materials charges.
Related 3M Literature
Listed below is related 3M technical literature that may be
of interest. You may view and print these Bulletins from
our Web site at www.scotchprint.com, or order them via our
Fax-on-Demand (FOD) system. Call one of these phone
numbers to order the desired bulletins, and specify the FOD
document number provided in the chart.
United States or Canada: 1-800-364-0768
International: 1-651-732-6506
Subject
Bulletin
No.
FOD
No.
Product Bulletins
3MScreen Printing Ink Series 1900
1900
2501
3MScreen Printing Ink Series
9700UV
9700
2507
Instruction Bulletins
Screen printing with ink series 9700 UV
- line color
- 4-color
3.4
3.13
6004
6013
Screen printing with ink series 1900
- line color
- 4-color
3.11
3.12
6011
6012
Using 3M application tapes; premasking
and prespacing for films
4.3
6503
Application, substrate selection,
preparation and substrate-specific
application techniques
5.1
7001
Application, general procedures for
interior and exterior dry applications
5.5
7005
Storage, handling, maintenance, removal
6.5
8505
