EM415PRO заводской прямой апгрейд искатель линии обрыва цепи тестер короткого замыкания прибор для диагностики неисправностей автомобиля

INTRODUCTION

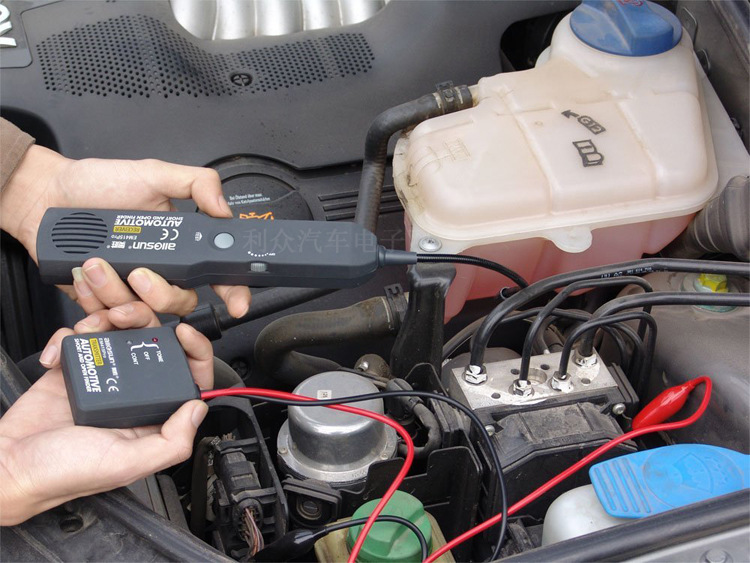

This automotive wire tracer and short finder tool is designed to identify and trace wires or cables without damaging the insulation. You can also use it in Checking Short Circuit, Locating Open Circuit,Wire Tracing, Wire Identification and so on. There are a Sender and a Receiver included in the instrument.

HOW TO USE THE PROBE?

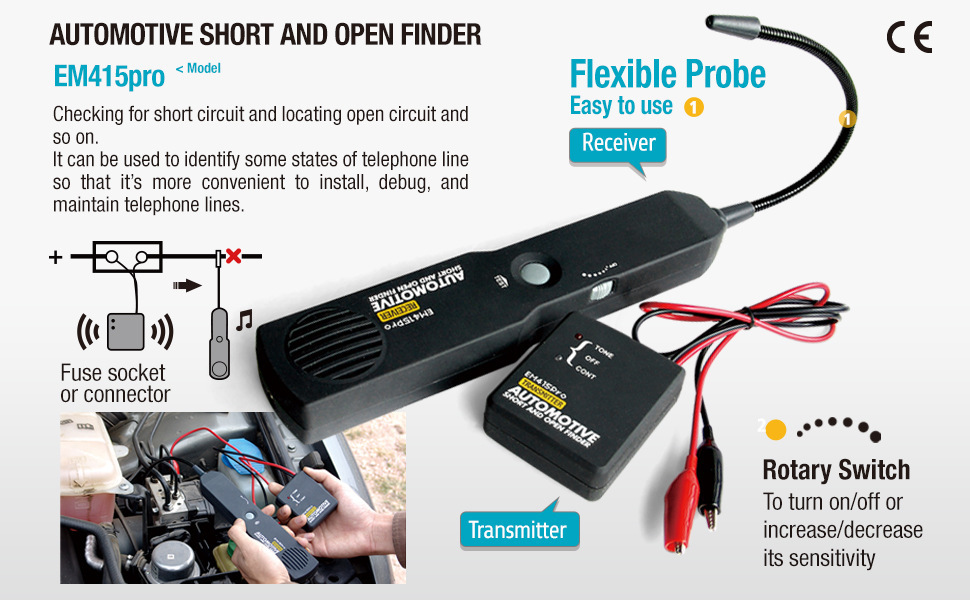

The probe of the Receiver is built of coiled steel and may be bent as needed, in order to reach wires in congested or difficult areas. Depending on the circuit characteristic and sensitivity settings, the probe will pick up the signal from the wire in a range of positions. However, for the best possible range the Receiver’s probe tip (black cap) should be positioned perpendicular to the wire being traced and either above or below it.

SPECIFICATIONS:

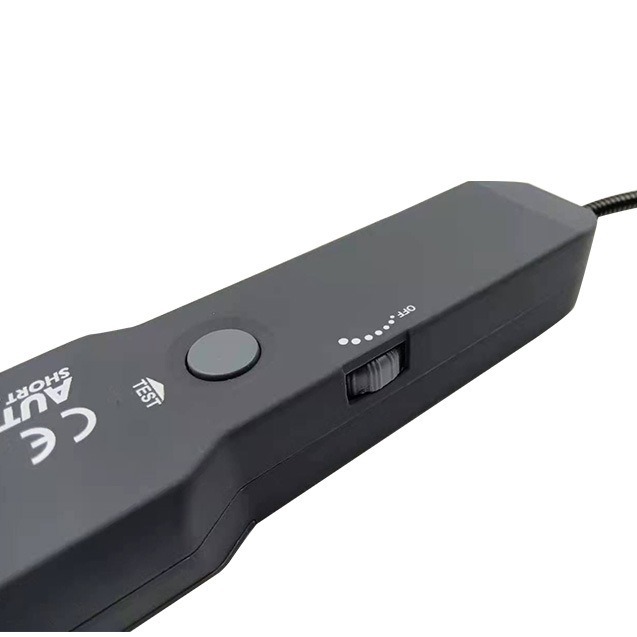

Receiver: On/Off button Test button

Probe length: 7 inch flexible probe

Sender: Tone/Off/Cont (Continuity) switch Tone/Cont (Continuity) LEDs Red and black test leads cable (61cm length, approximate)

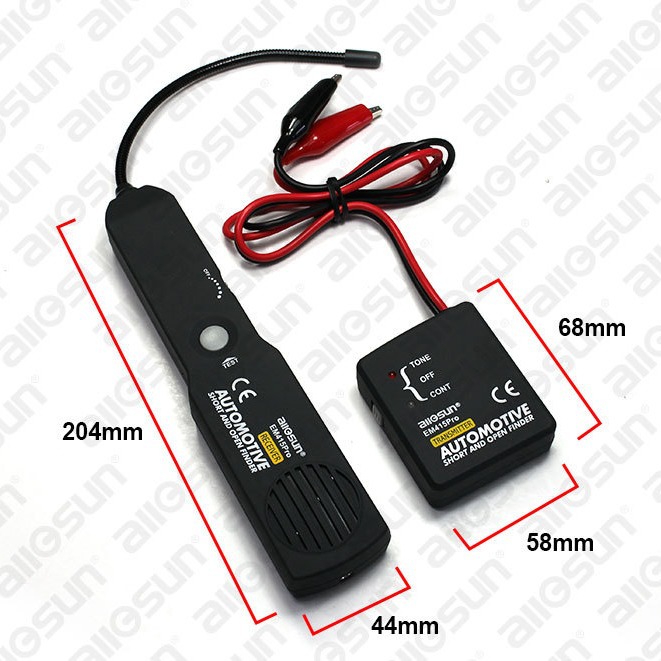

Receiver Dimensions: 38.5 x 4 x 2.3cm (H x W x D, approximate)

Sender Dimensions: 6.5 x 5.6 x 2.1cm (H x W x D, approximate)

DC Voltage: Operates from 6 to 42 volts Power : 2x9V battery (6F22)

Please Note: This product set needs two batteries. Please install 9V 6F22 battery in both Receiver & Transmitter.

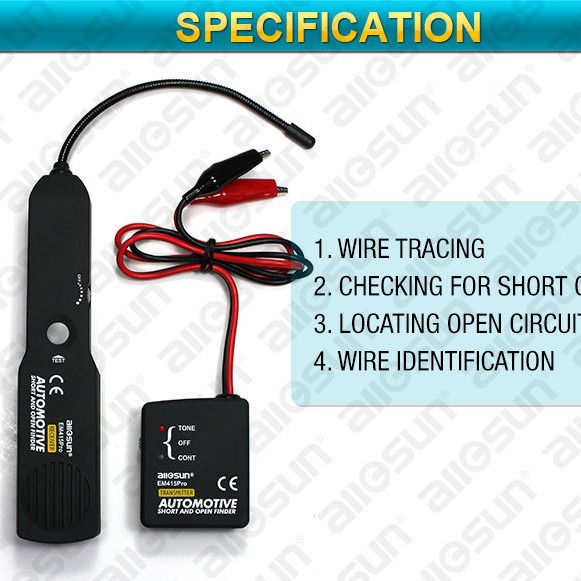

APPLICATION: Checking for short circuit,Locating open circuit,Wire identification, Wire tracing,etc.

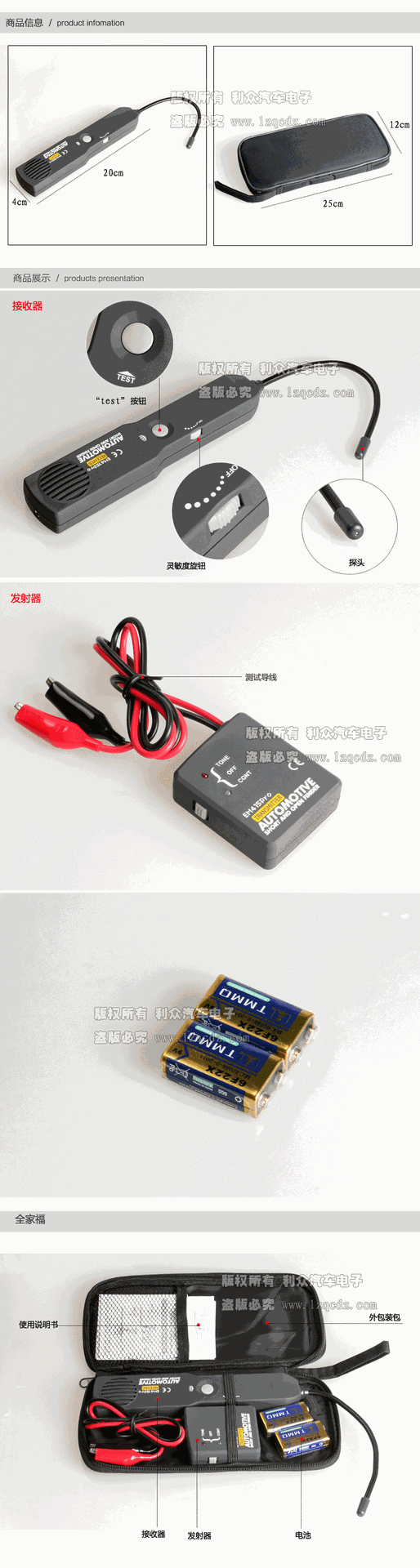

PACKAGE: Inner-Carrying Case,Outer-Carton

• 1 x Automotive Short and Open Finder Sender
• 1 x Automotive Short and Open Finder Receiver
• Carrying bag
• English User Manual
• 2 PCS 6F22 9V battery
