Арт. 658474465332

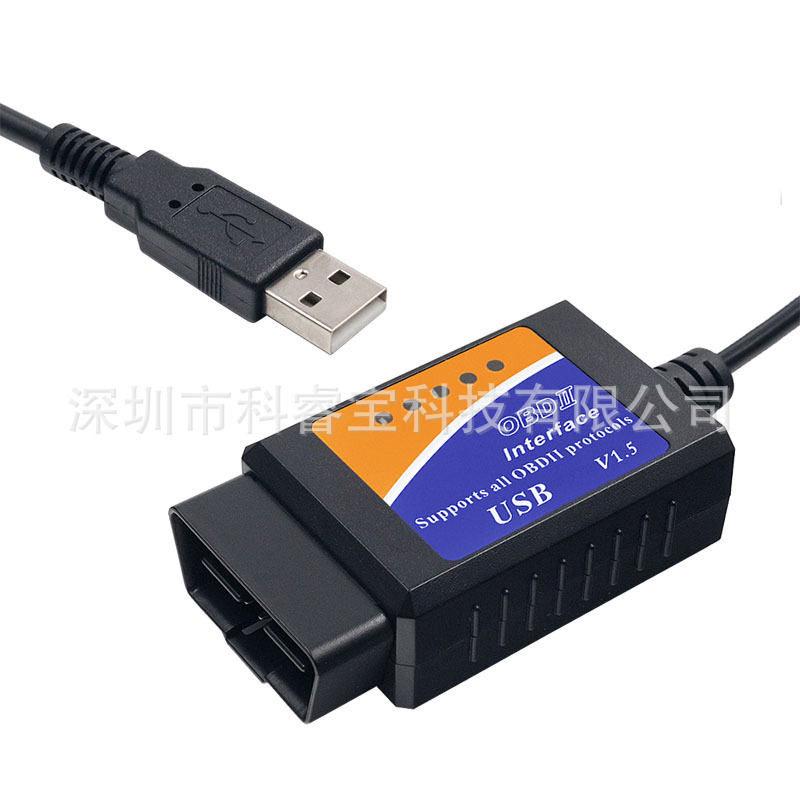

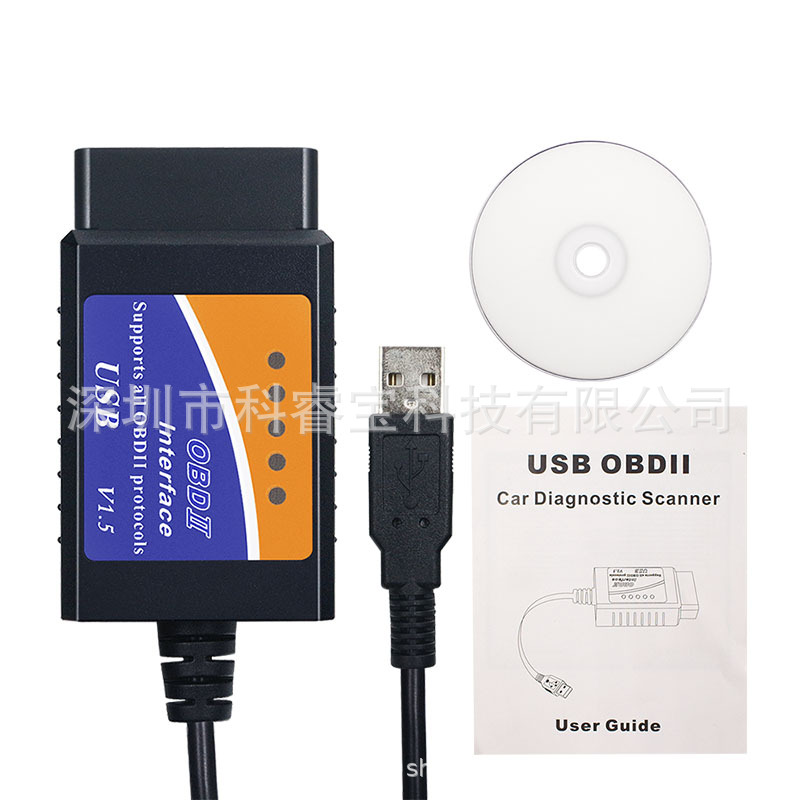

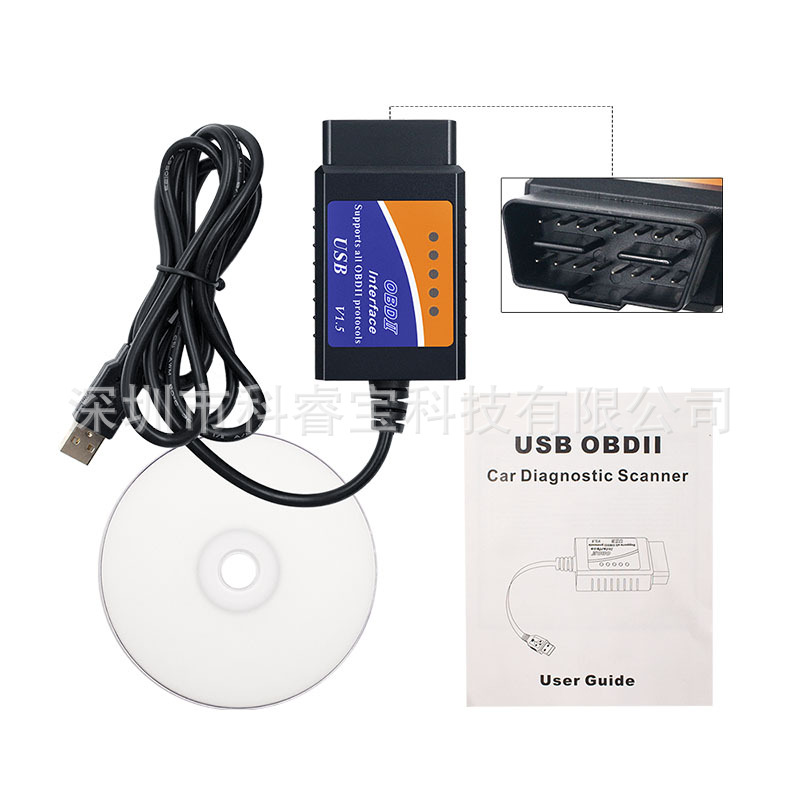

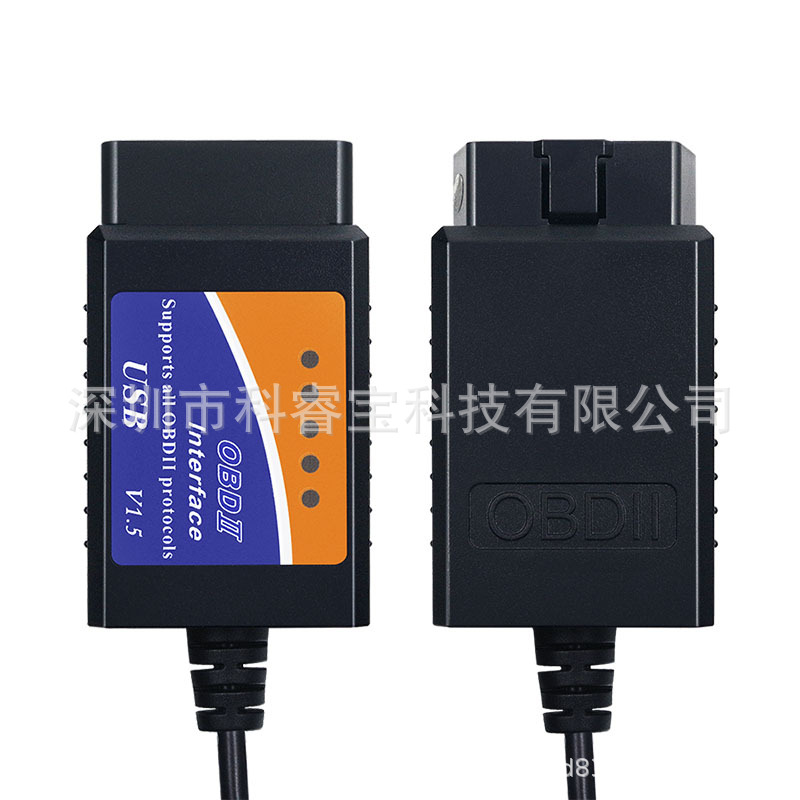

ELM327 USB V1.5 OBD2 сканер с CD ручной OBDII автомобильный детектор неисправностей

Ссылка на оригинал

Технические характеристики:

USB с кабелем 327

Вес:

0.34 кг

Продано за 30 дней:

2130 шт.

Всего продаж:

105814 шт.

Минимальное количество для заказа:

1 шт.

ELM327 USB V1.5 OBD2 сканер с CD ручной OBDII автомобильный детектор неисправностей

Ссылка на оригинал

Доставим до Москвы: 10.12 - 20.12

от 175.00 ₽ за 1 шт.

175.00 ₽

Для расчета доставки до Москвы обратитесь к менеджеру

Оптом

от 1 шт.

175.00 ₽

от 500 шт.

162.50 ₽

от 1000 шт.

156.25 ₽

Описание

Newest ELM327 USB V1.5 OBD2 Car Diagnostic Scanner ELM 327 V 1.5 OBD 2 OBDII Interface PC-Based Auto Diagnostic-Tool OBD-II Scan

Top 4 Reason To Get ELM327

1. Software Version: 1.5

2. It supports all OBD-II protocols

3. User-friendly, and easy to learn

4. Support two platforms - DOS and Windows.

Description:

1.ELM327 is the latest PC-based scan tool. It is dispatched with a number of compatible programs. The processor is an ELM327. The output protocol (connection to laptop) is USB.

2.Processor: ELM327.

3.OBD-II Software for ELM327 is a free program that allows you to use your PC and a hardware interface to get the information from your car's computer.

4.The program is very easy to install:simply extract the files into a folder on your computer's hard drive, and you're ready to go. To uninstall the program, simply delete the entire contents of the folder where the program resides.

ELM327 Functions:

1.Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).

2.Clear trouble codes and turn off the MIL ("Check Engine" light)

3.Display current sensor data, including:

Engine RPM;Calculated Load Value;Coolant Temperature;Fuel System Status;Vehicle Speed;Short Term Fuel Trim;Long Term Fuel Trim;Intake Manifold Pressure;Timing Advance;Intake Air Temperature;Air Flow Rate;Absolute Throttle Position;Oxygen sensor voltages/associated short term fuel trims;Fuel System status;Fuel Pressure;Many others..

4.Upcoming Function: Data graphing and logging;Freeze Frame data;Continuous and Non-Continuous Oxygen Sensor test results

Specifications:

1.OBD-II Protocols:

ISO15765-4 (CAN);ISO14230-4 (KWP2000);ISO9141-2;

2.Output Protocol:RS232

Baud rate:9600 or 38400

Indicator LEDs:OBD Tx/Rx, RS232 Tx/Rx, Power

Operating voltage:12V, internal protection from short circuits/overvoltages

Nominal idle current:45 mA

ELM 327 USB V1.5 Technical Specification:

ELM327 Based - Datasheet

OBDII Plug: J1962 16-Pin Male (to Car)

USB Port : (to Computer or PDA)

High quality UL certified USB Cable (equivalent to CE).

CAN (ISO 15765-4)

ISO 9141-2

ISO 14230-4

Automatically searches for the correct protocol or can be configured manually.

USB Port

Serial Interface uses AT commands to look like a modem.

Status LED

Supports All OBDII Protocols:(please check your car prtocols if supported or not )

SAE J1850 PWM (41.6 kbaud)

SAE J1850 VPW (10.4 kbaud)

ISO 9141-2 (5 baud init, 10.4 kbaud)

ISO 14230-4 KWP (5 baud init, 10.4 kbaud)

ISO 14230-4 KWP (fast init, 10.4 kbaud)

ISO 15765-4 CAN (11 bit ID, 500 kbaud)

ISO 15765-4 CAN (29 bit ID, 500 kbaud)

ISO 15765-4 CAN (11 bit ID, 250 kbaud)

ISO 15765-4 CAN (29 bit ID, 250 kbaud)

Install of ELM 327 USB Plastic:

Simply extract the files into a folder on your computer's hard drive, and you're ready to go.-
Touninstall the program, simply delete the entire contents of the folder where the program resides.
The software supports two platforms - DOS and Windows.

The program lets you perform the following operations:
1. Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).
2. Clear trouble codes and turn off the MIL ("Check Engine" light)
3. Display current sensor data, including:
4. Engine RPM
5. Calculated Load Value
6. Coolant Temperature
7. Fuel System Status
8. Vehicle Speed
9. Short Term Fuel Trim
10. Long Term Fuel Trim
11. Intake Manifold Pressure
12. Timing Advance
13. Intake Air Temperature
14. Air Flow Rate
15. Absolute Throttle Position
16. Oxygen sensor voltages/associated short term fuel trims
17. Fuel System status
18. Fuel Pressure
AND Many others...

CAN:

New J1939 protocol

Two user-definable CAN protocols

Improved error handling and recovery

Extended addressing support

Характеристики

Импортировано ли оно?:

Нет

Обработка и настройка:

Да

тип:

прибор для диагностики неисправностей автомобиля

напряжение:

12-24

Рабочая температура:

Бренд:

AERMOTOR

модель:

ELM327

Применимые модели:

Различные модели

Основная нижняя платформа:

ebay; Амазонка; wish; Алиэкспресс; Независимая станция; LAZADA

Основные регионы продаж:

африканский; Европа; Южная Америка; Юго-Восточная Азия; Северная Америка; Северо-Восточная Азия; Ближний Восток

Это специальный источник поставок для трансграничного экспорта?:

Да

Технические характеристики:

USB с кабелем 327
