Сетевой фильтр HDMI с защитой от молнии заземляющий провод Электростатическая защита

Описание

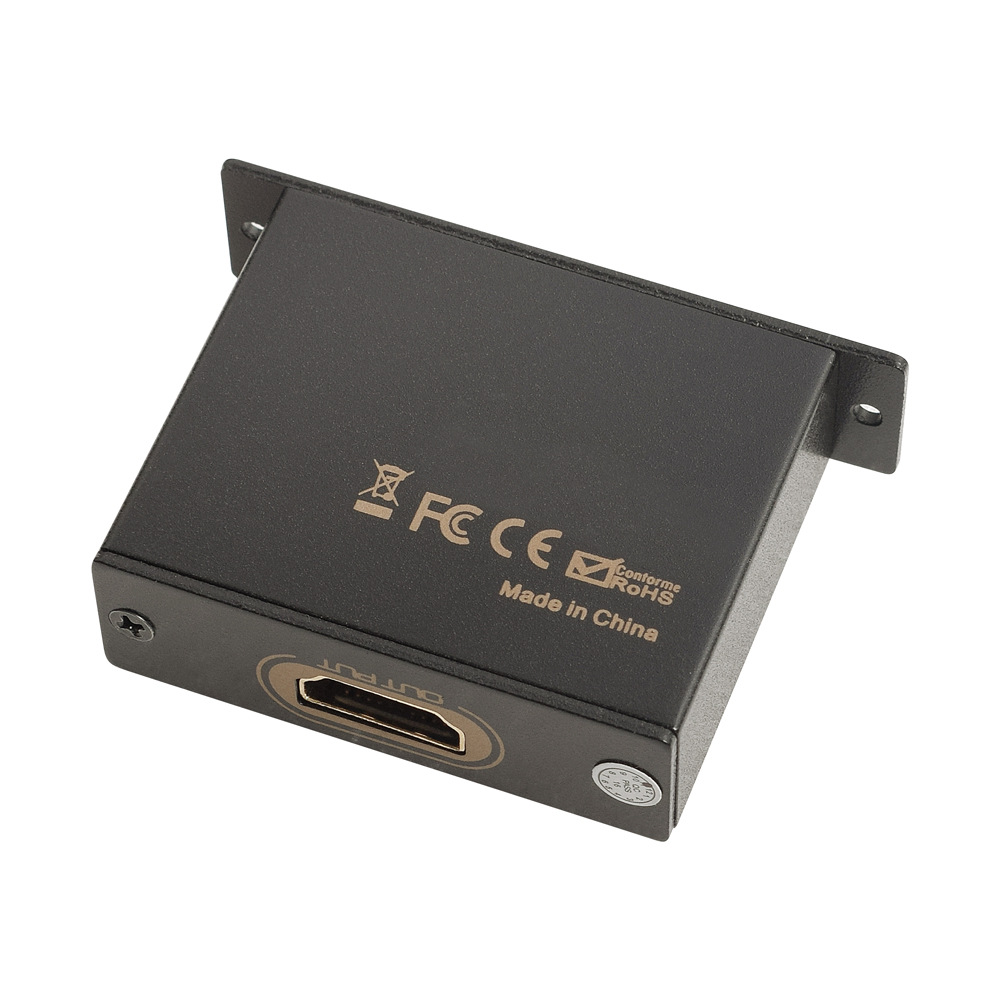

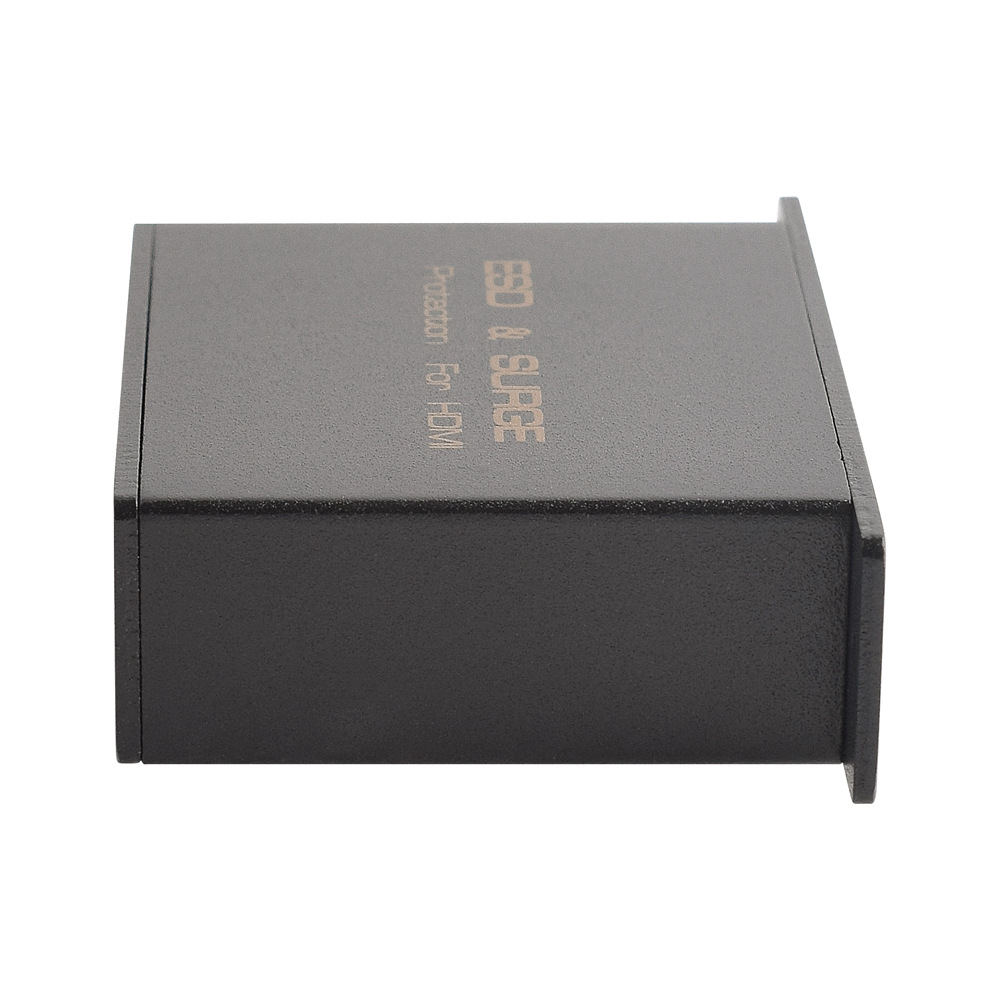

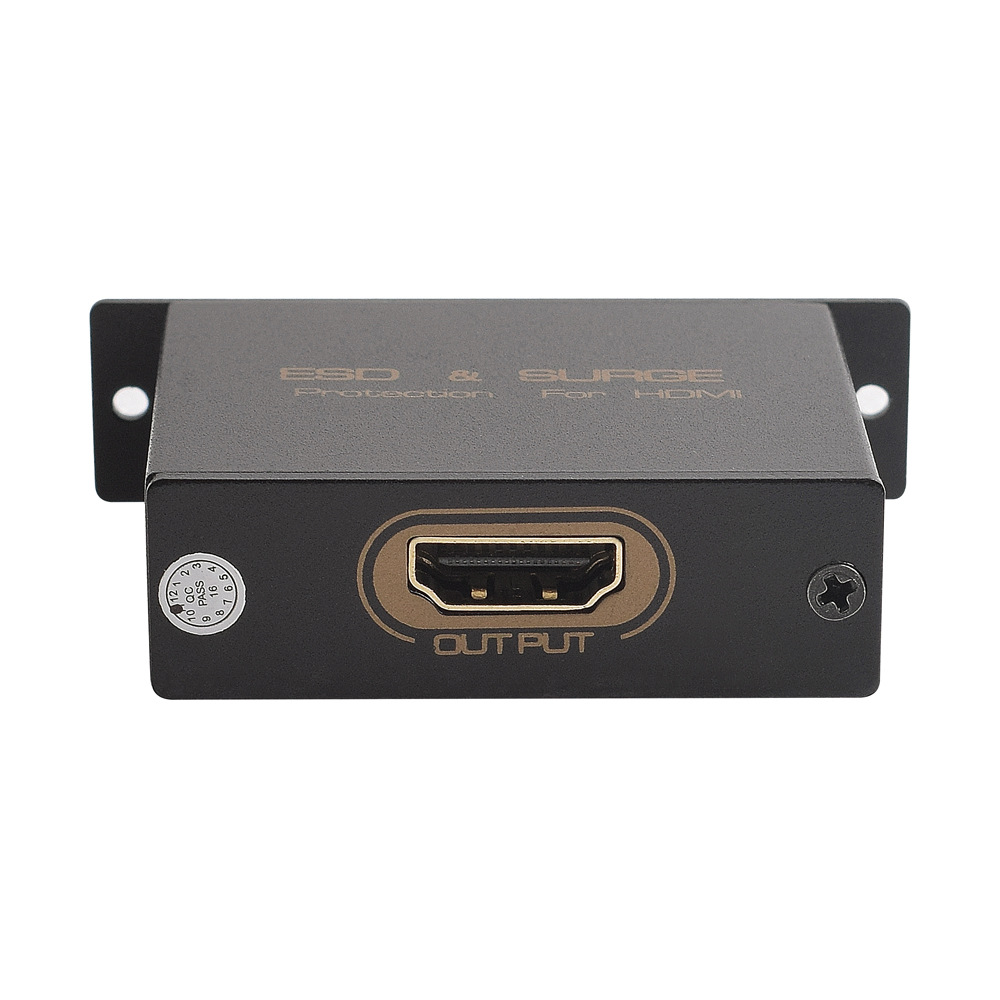

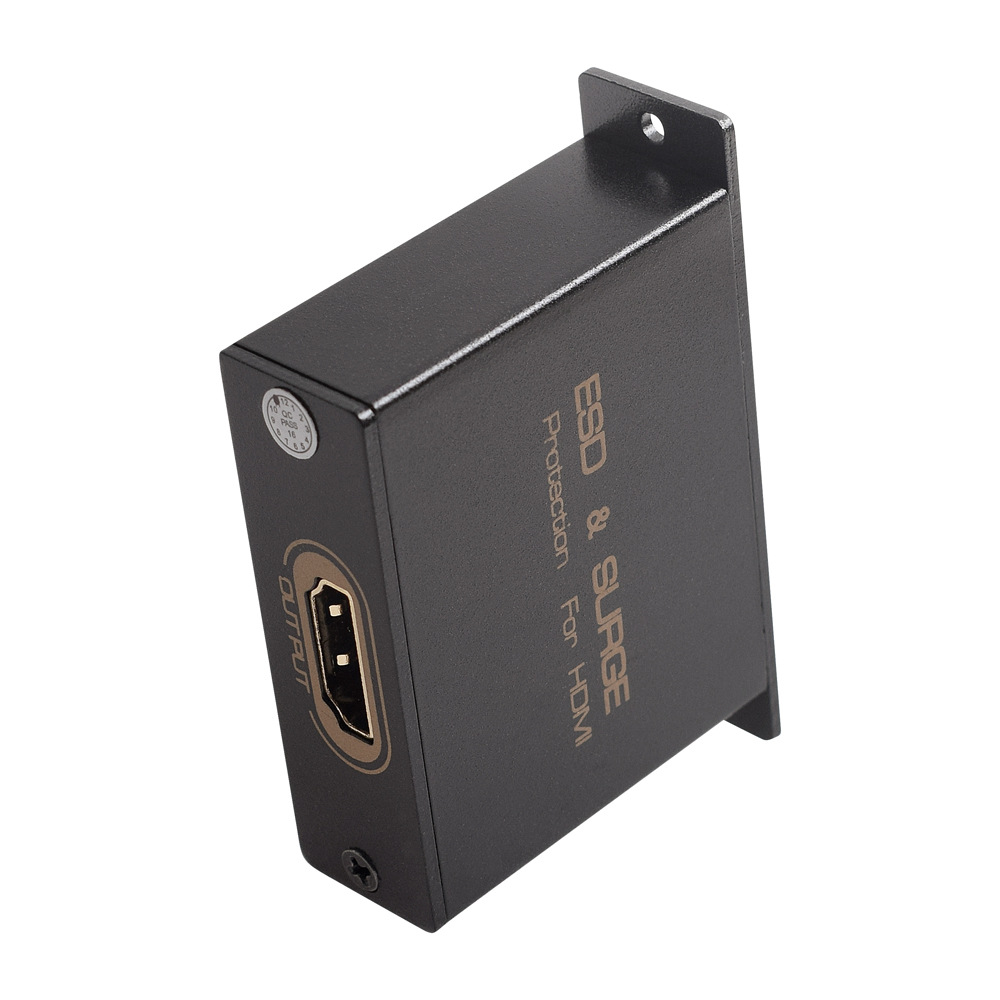

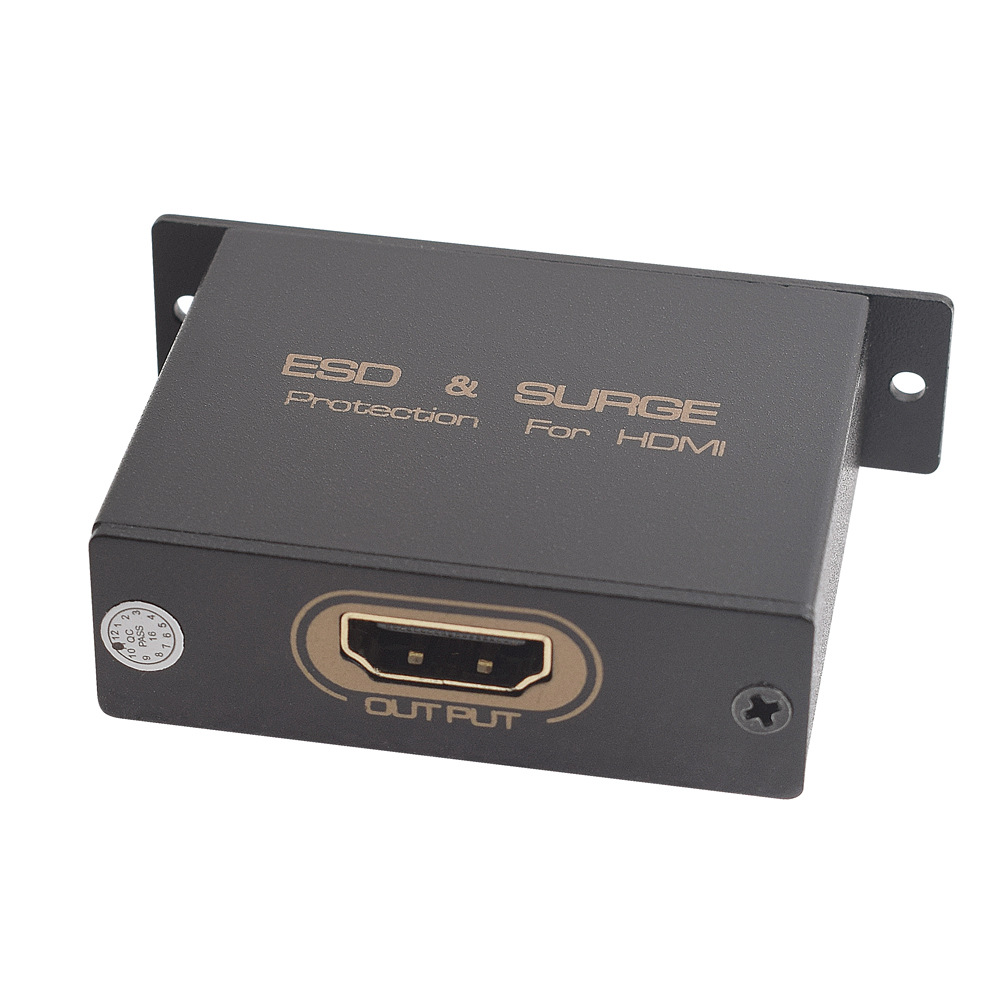

HDMI Surge Protector

带包装重量： 66g

ESD, Lightning, Surge, EFT Protection

The HDMI surge protector is designed forprotect the HDMI device that against with the staticdischarge, lighting surge,electrical fast transient burst. It is all active at all TMDS/DDC/HPD and CEC channels of connected HDMI signals and it can do final defense for ESD and Lighting Surge.

FEATURES

l Protect HDMI input and output for ESD and Lightning Surge

l Meet IEC 61000-4-2 (ESD) ±15kV (air), ±8kV (contact).

l Meet IEC 61000-4-4 (EFT) 40A (5/50ns).

l Meet IEC 61000-4-5 (Lightning) 5A (8/20µs).

l Support HDMI 1.4 with 3D,4KX2K and HEAC.

l Solid-state silicon-avalanche technology.

l Support HDCP

l No loss of quality

l Installs in minutes

l No Need Power Adptor

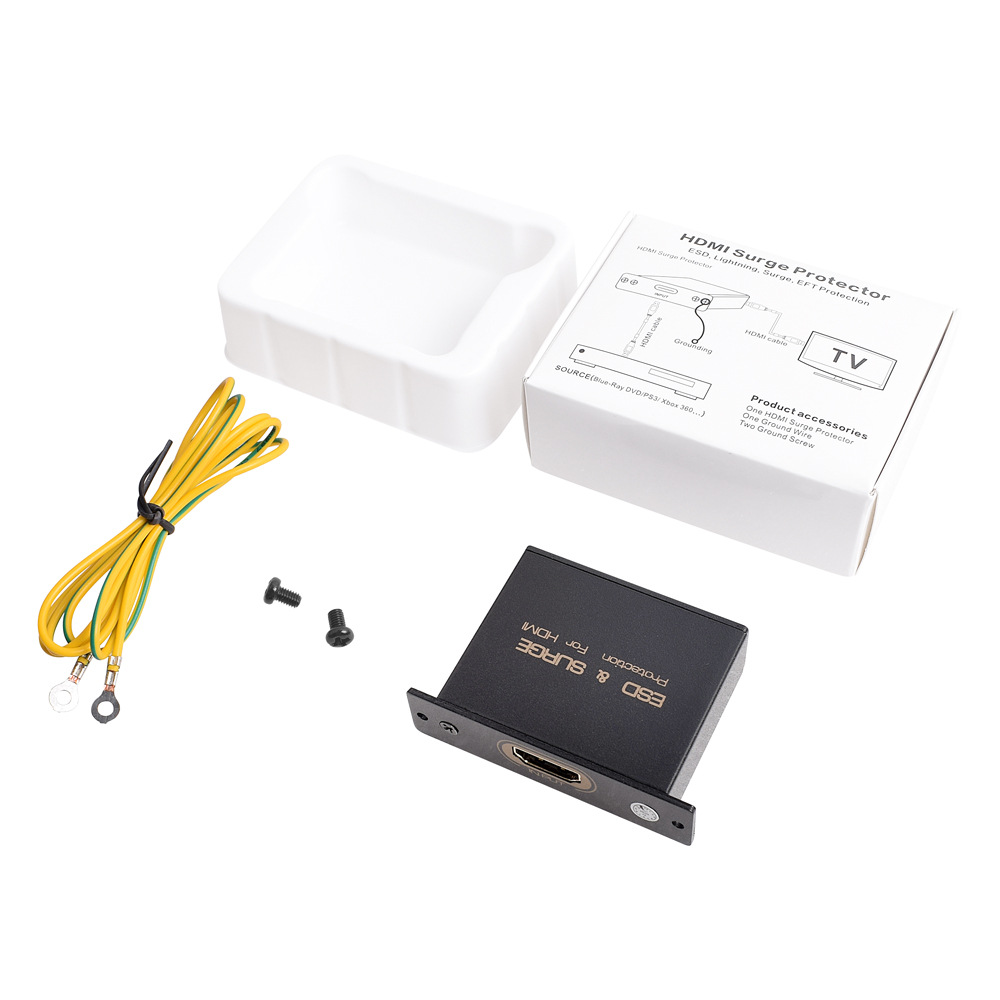

The accessories with the machines lists as picture：

1、One HDMI Surge Protector       1PCS

2、one pc of Manual               1PCS

3、One Ground Wire               1PCS

4、Ground Screw                  2 PCS

产品规格:

HDMI version………………………………………………….. HDMI 1.4 with 3D、4Kx2K、HEAC

HDMI resolution …………………………....24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i

Support video color format ……………………...….….……..24bit/deep color 30bit,36bit, 48bit

Support audio format……..DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD HD(HBR)

Max bandwidth………………………………………………..….………………………….340MHz

Maxbaud rate…………………….………………….……………………………………..10.2Gbps

Input/Output TMDS signal ………….………………………..………... …..0.5~1.5Volts p-p(TTL)

Input/Output DDC signal …………………………………………..……...……… 5Volts p-p (TTL)

Max working current………………………………..……………………………………….....50mA

Operating Temperature range……..…………….………………………………… (-15 to +55℃)

Operating Humidity range………………………….….………..5 to 90%RH (No Condensation)

Dimension (L x W x H)……………………………….………………...……43.5x64x16.5 (mm)

Weight…..………………………………………………………..…….…………………..………40g
