Индикатор положения AIS, локатор положения сети, локатор положения сети HAB-120, локатор рыболовных сетей Matsutec

Описание

AIS示位标 网位仪定位仪,HAB-120 网位仪 Matsutec 渔网定位仪

产品介绍：

1.产品特点及适用范围

• HA-ANT渔网跟踪仪采用先进的AIS技术，发射色信号可以被往来装有AIS避碰的船只自动辨别，从而避免碰撞的事故，同时它可及时跟踪渔网的功能，在渔网脱离控制范围时及时报警，让渔民根据具体方位将渔网迅速找回，避免经济损失。
• 该渔网跟踪仪具有信号传送距离远、易于辨别、操作简易。该产品可用于海上的渔网上，以及其他需要传送定位资讯的场合。

2.

产品使用说明

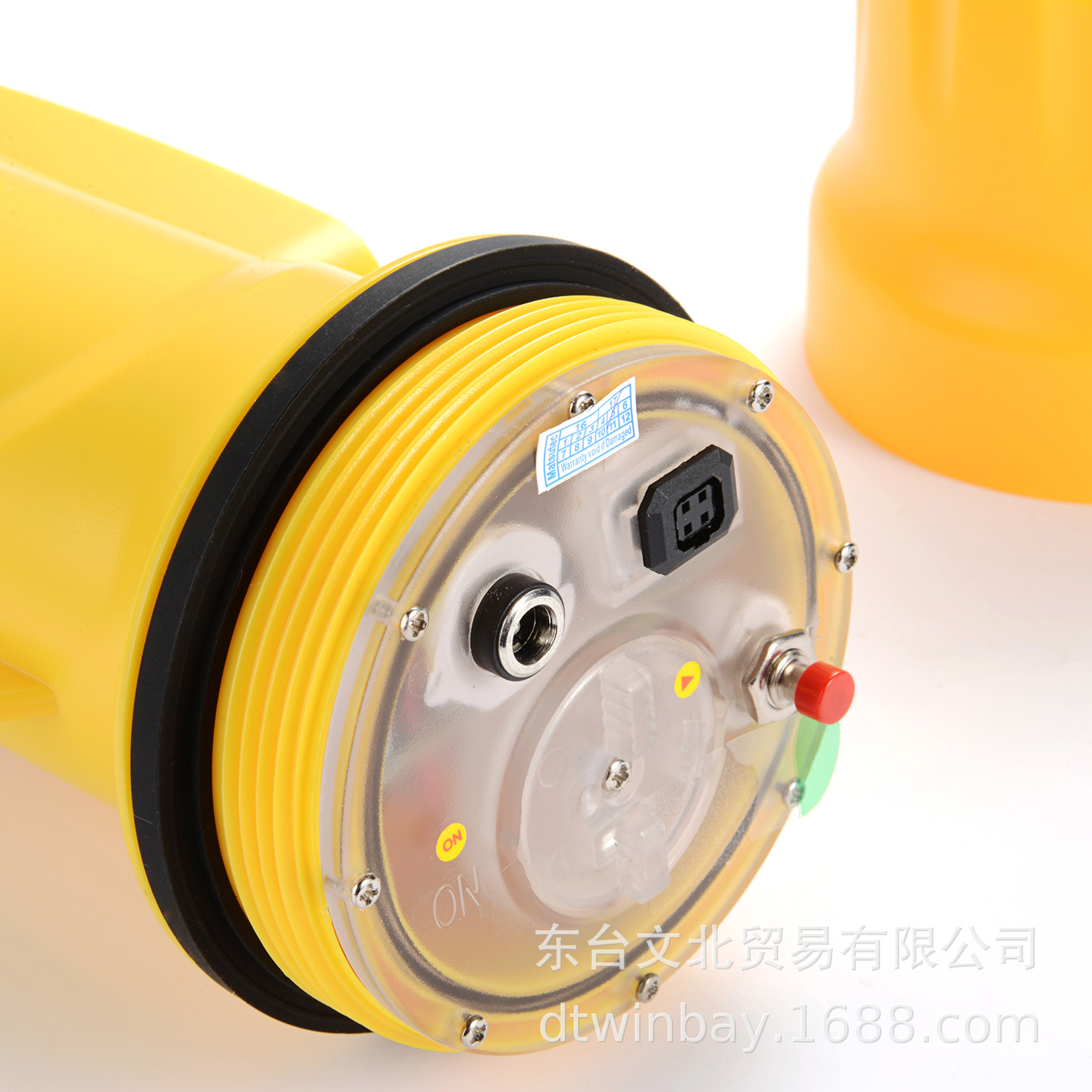

• 一：将网位仪的底座旋开取下
• 二：将电源开关拔到开位置，指示灯会亮起
• 三：将底座盖上旋紧，收到卫星信号，GPS定位后网位仪会让自己的静态资讯发射出去，每3分钟发射两次。如果指示灯不息表明不能定位。
• 如何对网位仪充电？
• 将网位仪的底座旋开取下，将电源开关拔到开位置，这时将充电器插入充电即可，充满电了，充电器的指示灯由橙色变成绿色。

3.  主要性能和参数

• 型号：HS-ANT
• 功率：3W
• 外部颜色：橘色
• 工作时间：≧240h
• 电池类型：锂电池
• 工作电压：7.4V
• 信号传送距离：可达10NM（海里）
• 材质：ABS
• 指示灯颜色：红色
• 工作温度：-20 to 60 摄氏度
• 特别说明：SOG的小数部分代表电池量，0至9分别指示电量从小到大，9代表电池电量充足。

4.标准配置：

• 渔网跟踪仪一个
• 锂电池
• 锂电池充电

• Mfr Part Number:HAB-120S

  Mfr Part Number:HAB-120



  Feature:



  *Professional reliability RF performance


  *Intergrated GPS antenna and VHF antenna sealed inside toughened outer shell


  *Transmits Full AIS messages


  *Configurable transmit intervals,Can Connect to PC to program the MMSI data,


    Vessel name etc. data with programming kit.


  *Can set up password,the MMSI and vessel name can't be changed without the


    password, in ase the product was lost or stolen, it can be easily find out once


    it be used.


  *Built-in rechargeable battery with more than 240hours


  *High-level waterproofing protection up to IPX7


  *SOS button for Safety Boardcast Message"MAYDAY MAYDAY MAYDAY"


    (For HAB-120S only)





  Proved Performance



  *up to 12nm range long distance for tracking, idea for tracking small vessel or fishing net

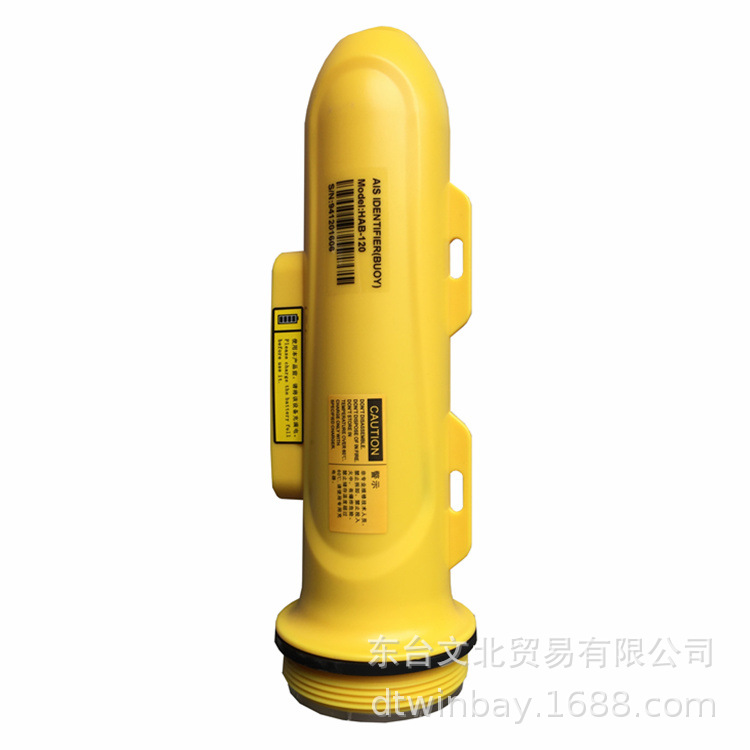

  marine fishing net AIS buoy



  FEATURE:

  1. Long time battery, more than 240 house each time

  2. Smart GPS antenna module allows an excellent GPS signal receiving

  3. Stable and reliable RF performance

  4. High-level waterproofing protection up to IPX7

  5. Self developed AIS Fishing Net Tracking Buoy, allows you to get an accurate location at night, in rain, and fog.



  Proved Performance

  Up to 12nm from a ship with AIS A or B transponder



  Application

  Wanting for an accurate location of your fishing net? Wanting to save your time and fuel to find your net?



  Self developed AIS Fishing Net Tracking Buoy, allows you to get an accurate location at night, in rain, and fog. Don’t worry about losing your fishing net anymore!



  HAB-80 AIS Fishing Net Tracking Buoy unit uses advanced AIS technology to transmit the combined data that include the unique ID and the position of a net. And the data can be received effectively by the vessel equipped with AIS device, then easily recognized and find back the nets with HAB-80. Also it can avoid collision accidents by other boats.



  Specification

  Standards:EC62287-1: 2006-03

  IEC60945: 2002

  ITU-R M.1371-2



  Position update:                 every 3 minutes

  Working frequency:          161.975MHz / 162.025MHz

  Output power:                   34.8dBm±1.5dBm

  Channel bandwidth:         25 KHz

  Modulation mode:            GMSK

  Bit Rate:                               9600b/s±50ppm(GMSK)

  Dimension:                          330 mm x 90mm

  Weight:                                0.5 KGS

  Battery:                                8.4V, 4000mAh; rechargeable

  Working time:                    More than 240 hours

  Antenna:                             Built-in VHF/GPS antenna

  GPS Module:                      IEC61108-1 standard

  Working Environment:     -20C – 55C

  Waterproofing:                        IPX7

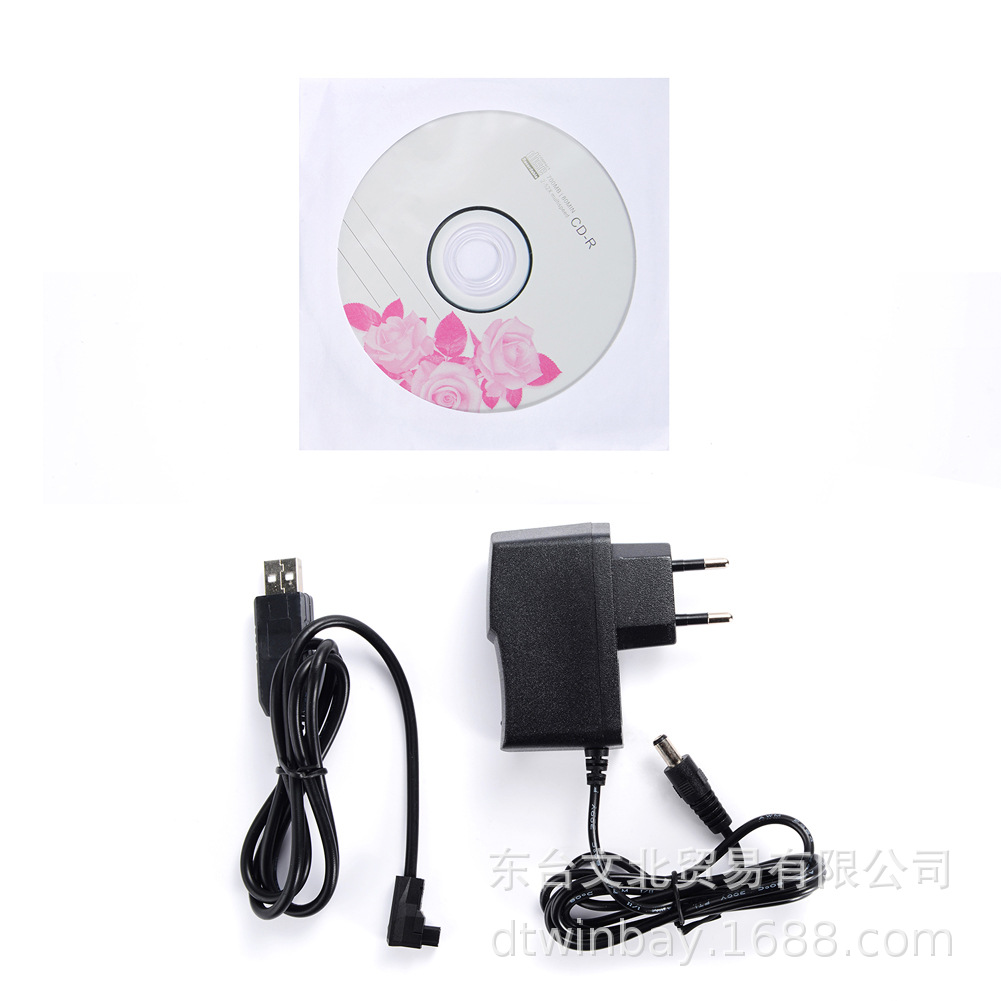

  Equipment List:Tracking Buoy unit      Battery recharger
