Экспортный доступ без ключа, автомобильные цифровые аксессуары, противоугонное устройство, центральный замок M616-8110, поставка платформы для электронной коммерции

Описание

 出口免匙进入汽车电子配件防盗器中控锁M616-8110电商平台货源

本品仅供外贸电商平台英文说明书英文包装盒子，内销客户请联系其他版本

本品重量为0.22KG。

SKU M616-8110（电商版）
car keyless entry system

Main Features:

Keyless entry system

Specification:

1.LOCK: Press the"lock" button of remote once, parking light will
flash once, siren sounds once, central door lock automatically.
LED indicator flash once per second.( Default no siren no sound)

2.UNLOCK: Press the "unlock"button of remote, parking light will
flash twice, siren sounds twice, central door unlock automati-
cally, LED indicator will be closed.

3.CAR SEARCH: Press"bell"button of remote once, parking light
will flash 30s, the siren sounds, press the same button again
will stop; if no this button press lock button many times.

4.ELECTRONIC DOOR LOCK/PNEUMATIC DOOR LOCK :
The main unit default electronic lock .

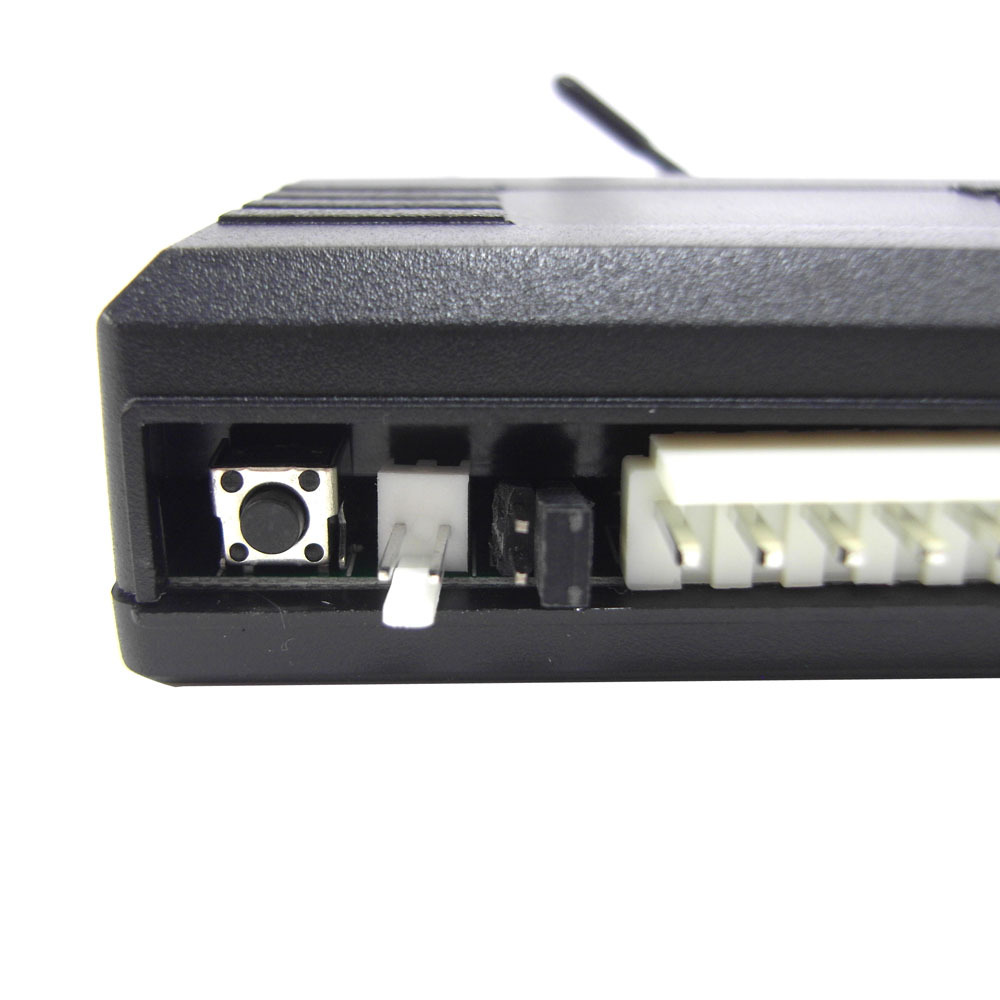

5.CODE LEARNING: Code learning: press learning switch once,
turning light flash once, after press remote any button, the
code was learned, if need to learn more remote ,repeat it
again.

6.CLEAR CODE: press the learning switch 3 seconds turning
light flash 3 time it was cleared.

7.POWER WINDOW OUTPUT (-25s)
Press" lock " button once, turning lights flash once and door
lock, now the power window signal output negative
trigger 25s ,the function depend on the car circuit delay.

8.TRUNK RELEASE (-3s,50mA)
Press the button "unlock/ trunk /mute" on the remote transmitter
3 seconds to release the trunk while the parking lights
will flash three times. it assisted by an actuator & a relay.

Specification:

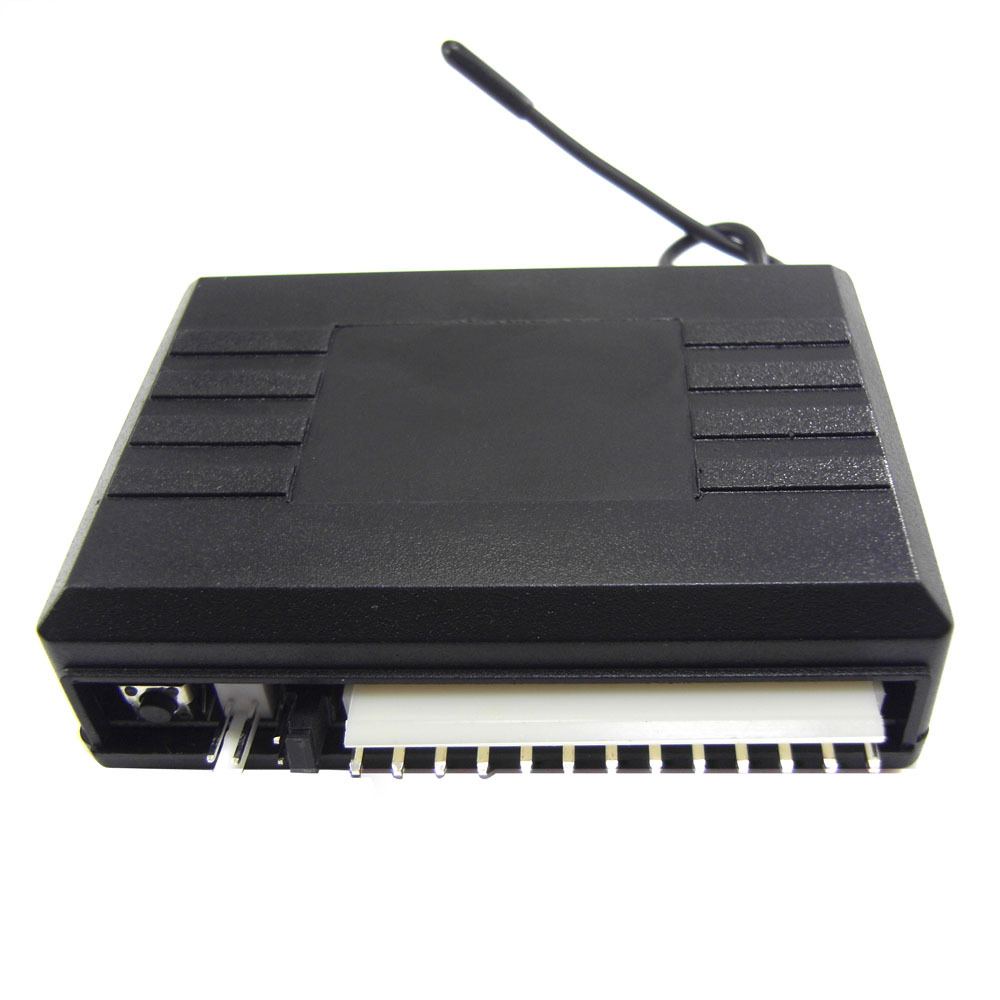

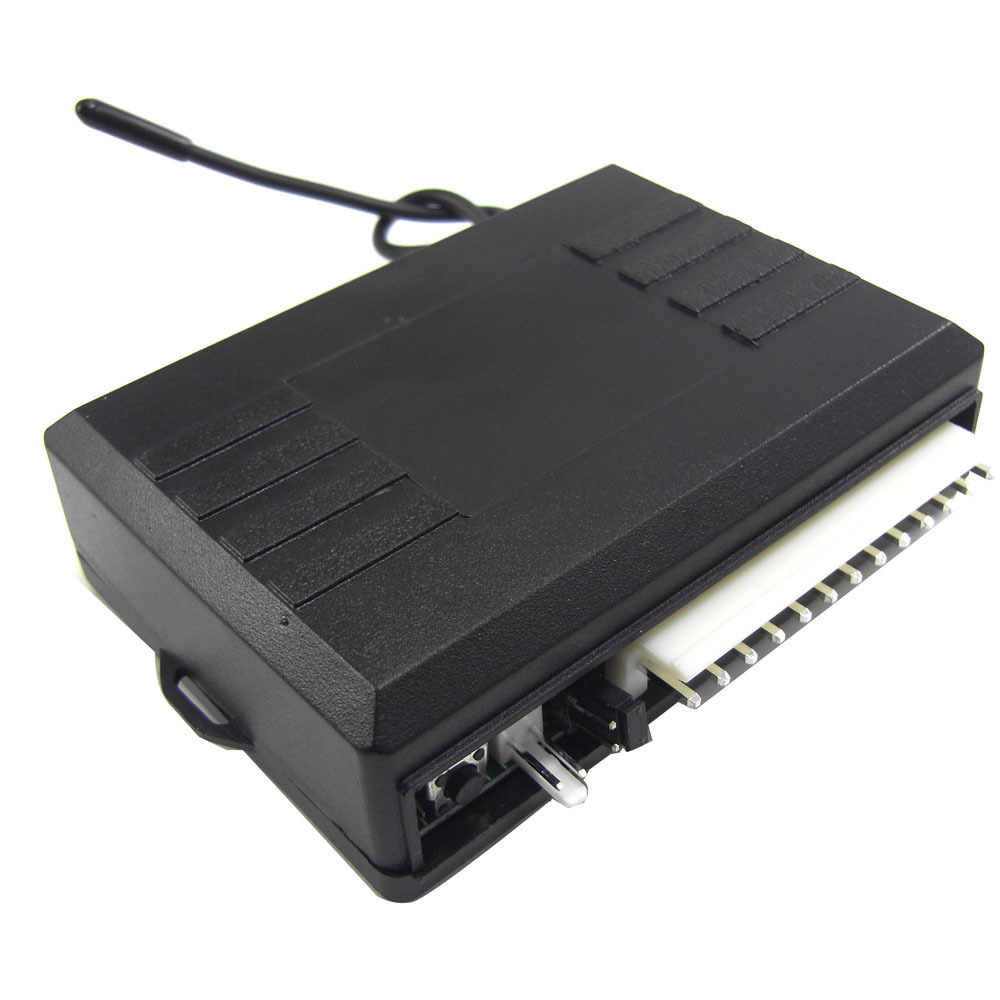

Main unit:
Working voltage: DC 12 ±3V
Static current:8.5 mA
Turning light:7.5 A x 2
Central locking:10A/433.92
Working frequency:433.92MHZ

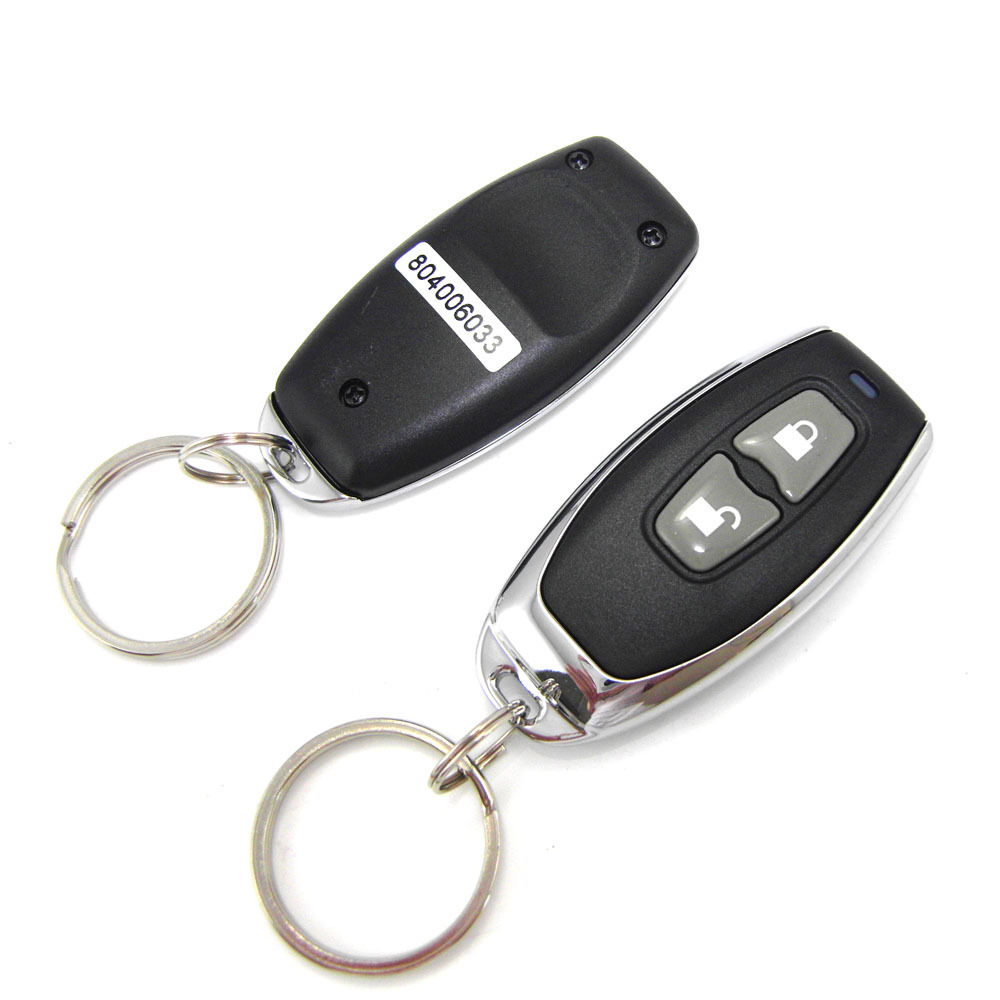

Remote control:
Working voltage: DC 12V
Average static current:0 mA
Control box size: 8.6 x 6.6 x 2.6 cm (L x W x H)
Remote Controller size: 9.8 x 3.8 x 1 cm (L x W x H)
Weight:0.22KG
Packing size:125*92*75mm ,50PCS/canton ,canton size:MEAS:41*34*40CM

About installation:
The product need installed by the Profesionales with Car electrician
certificated
For 12V DC car which have central door lock
The item without actuator of central door lock

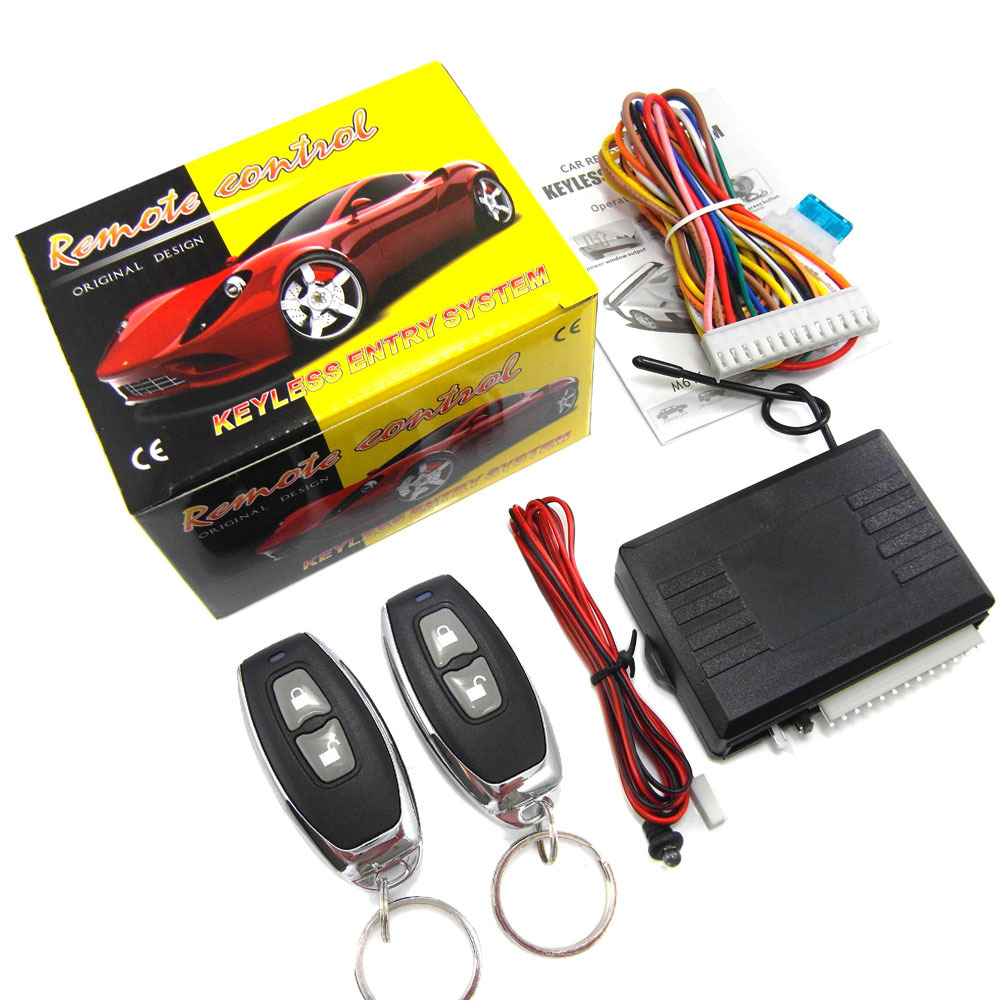

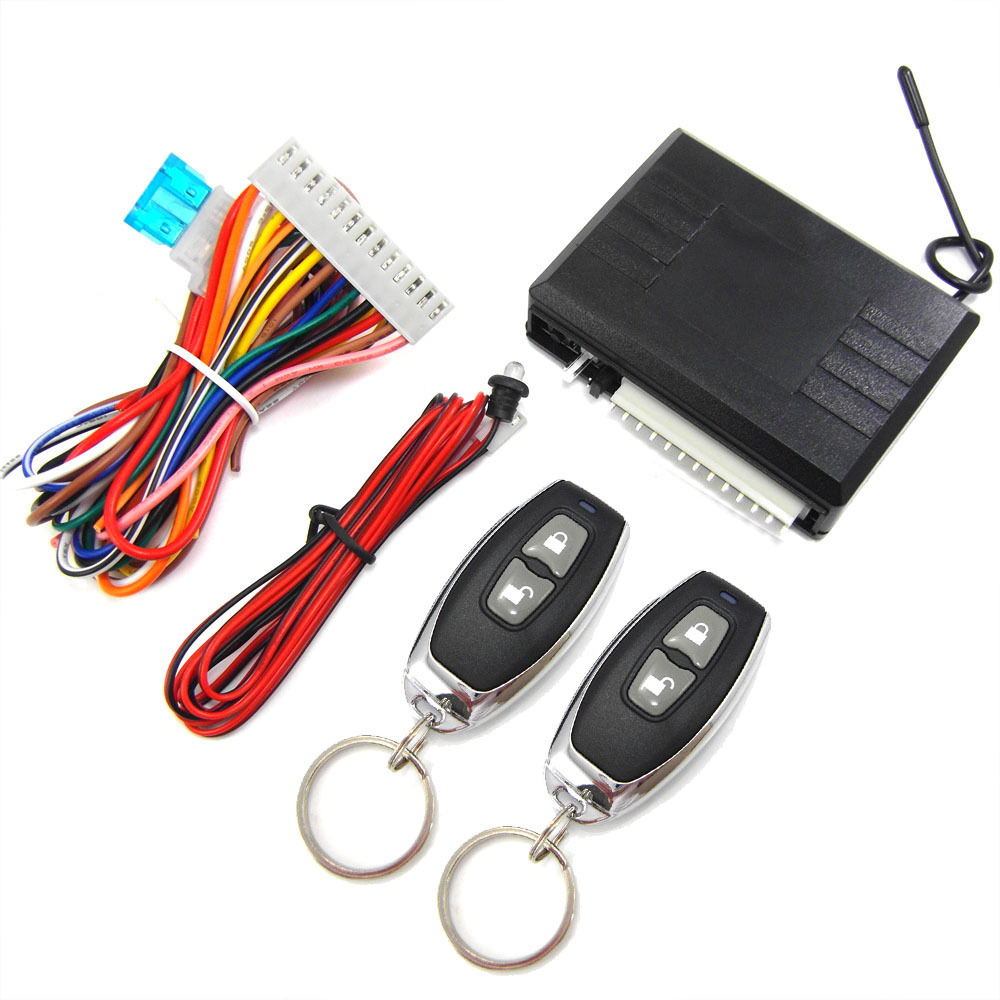

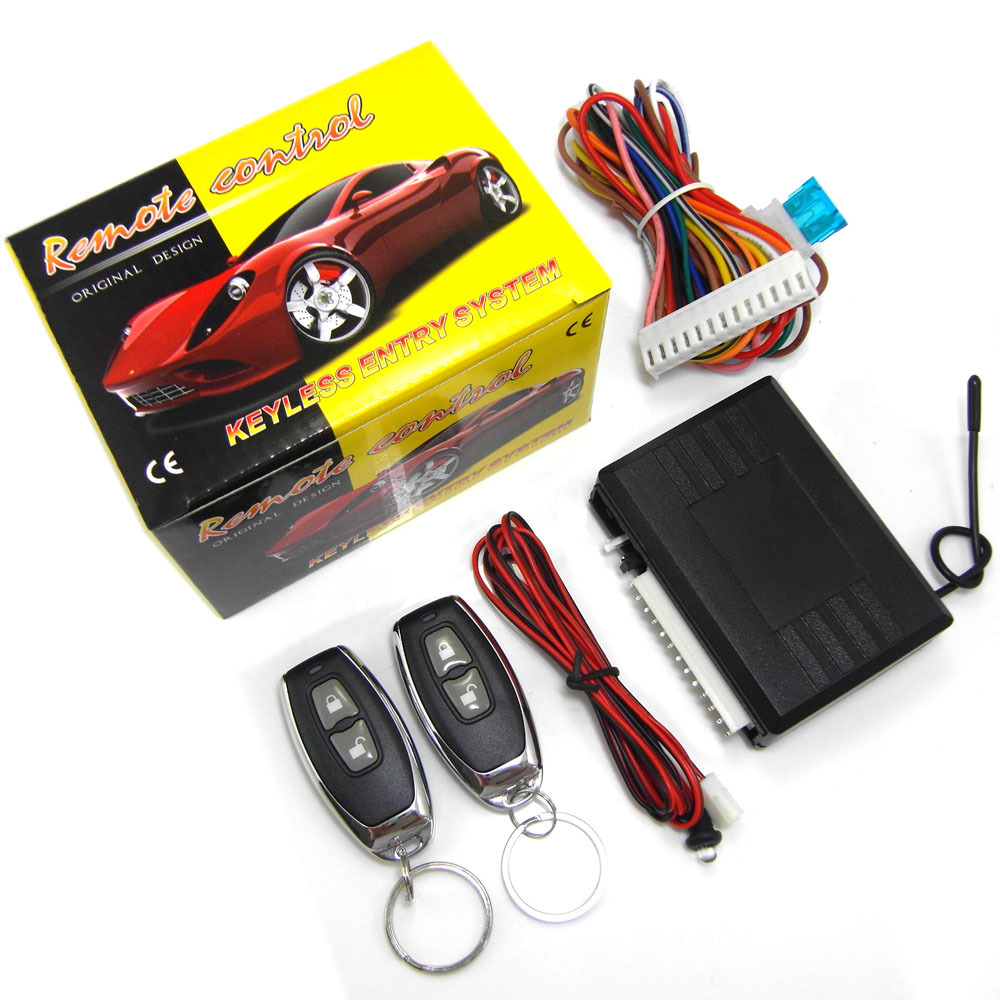

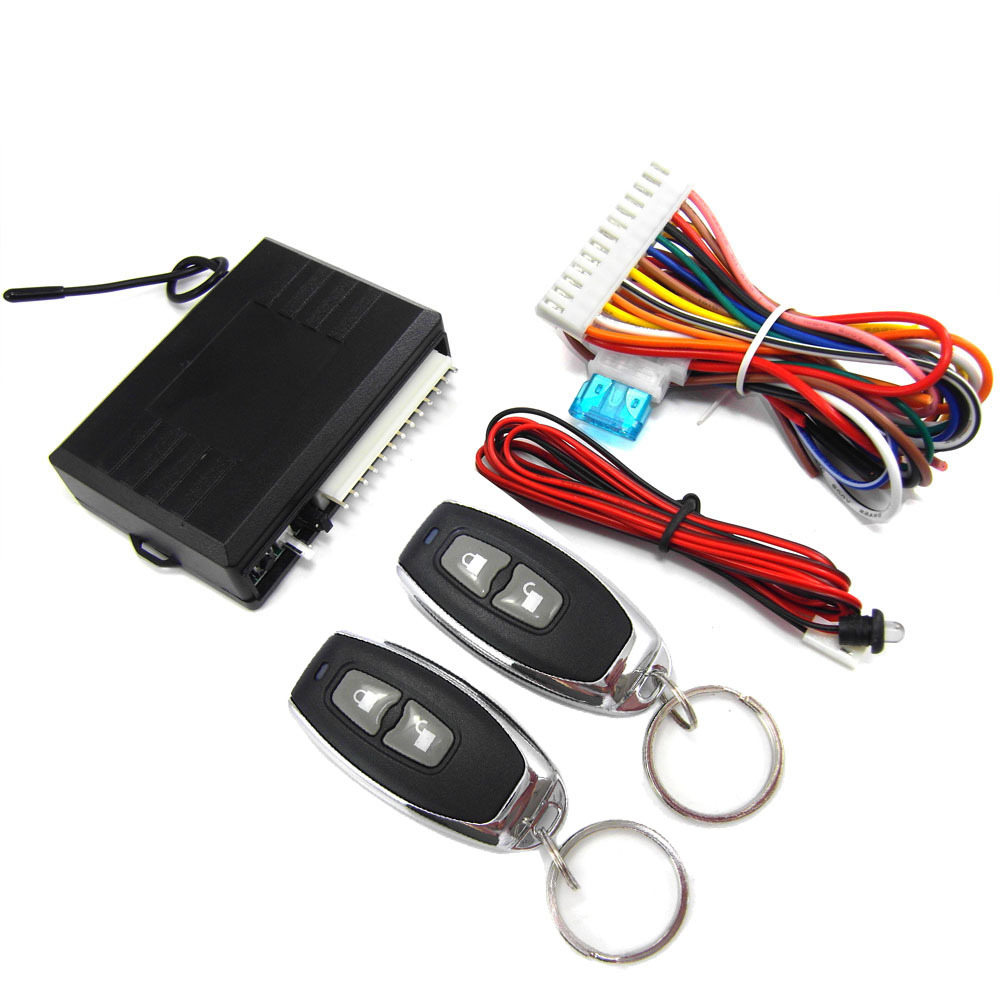

Package Include:

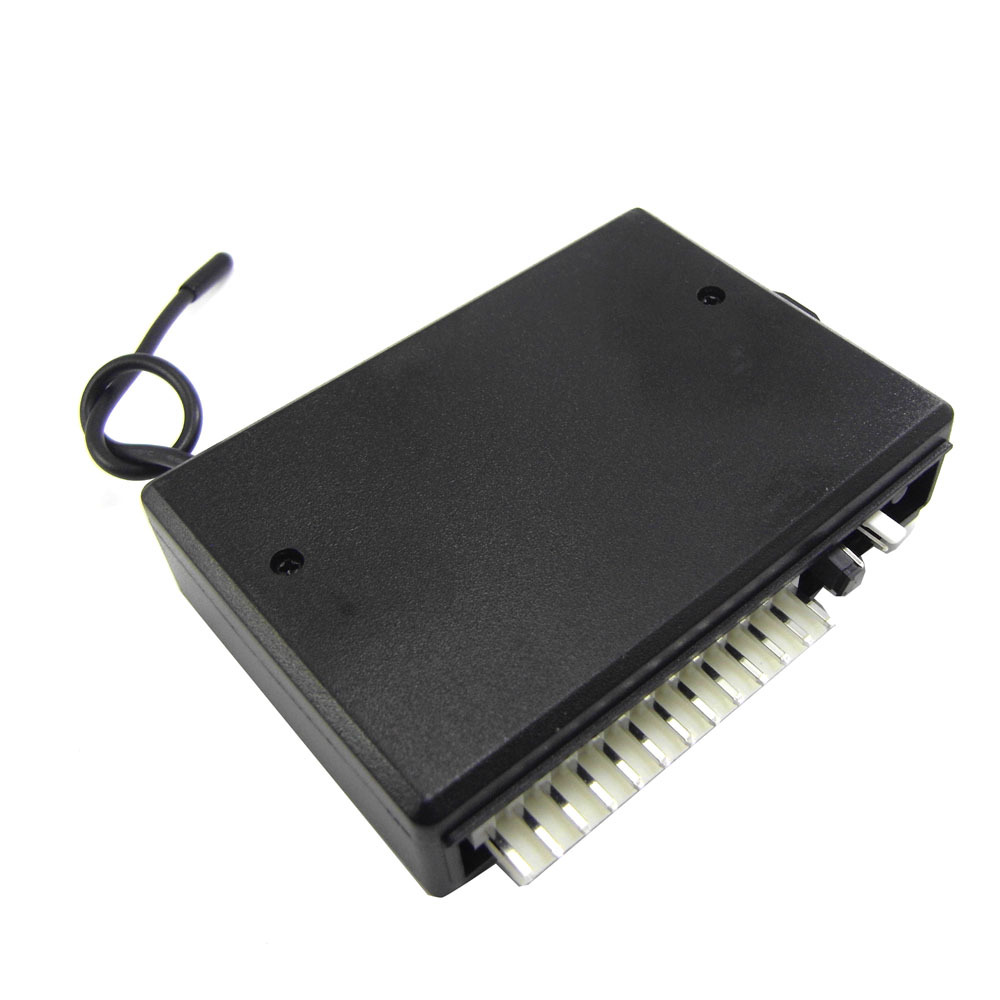

1x Main Control Unit

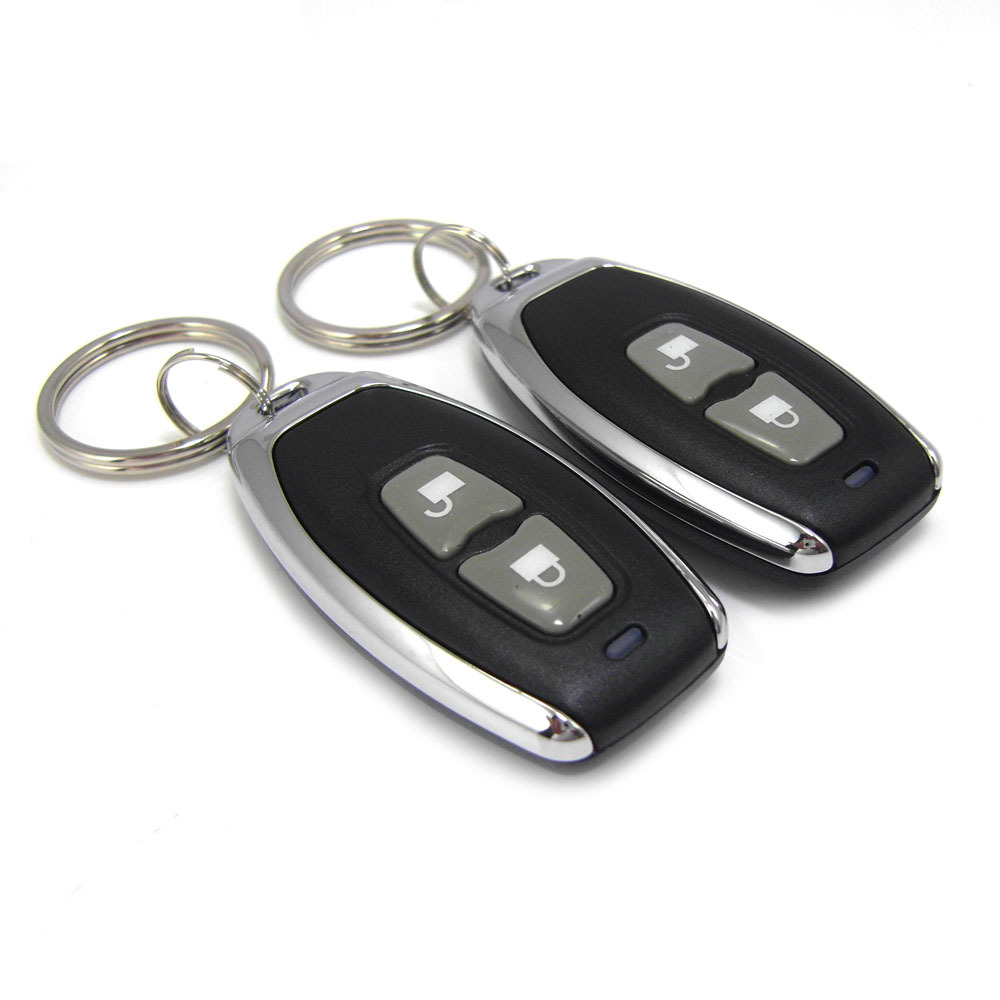

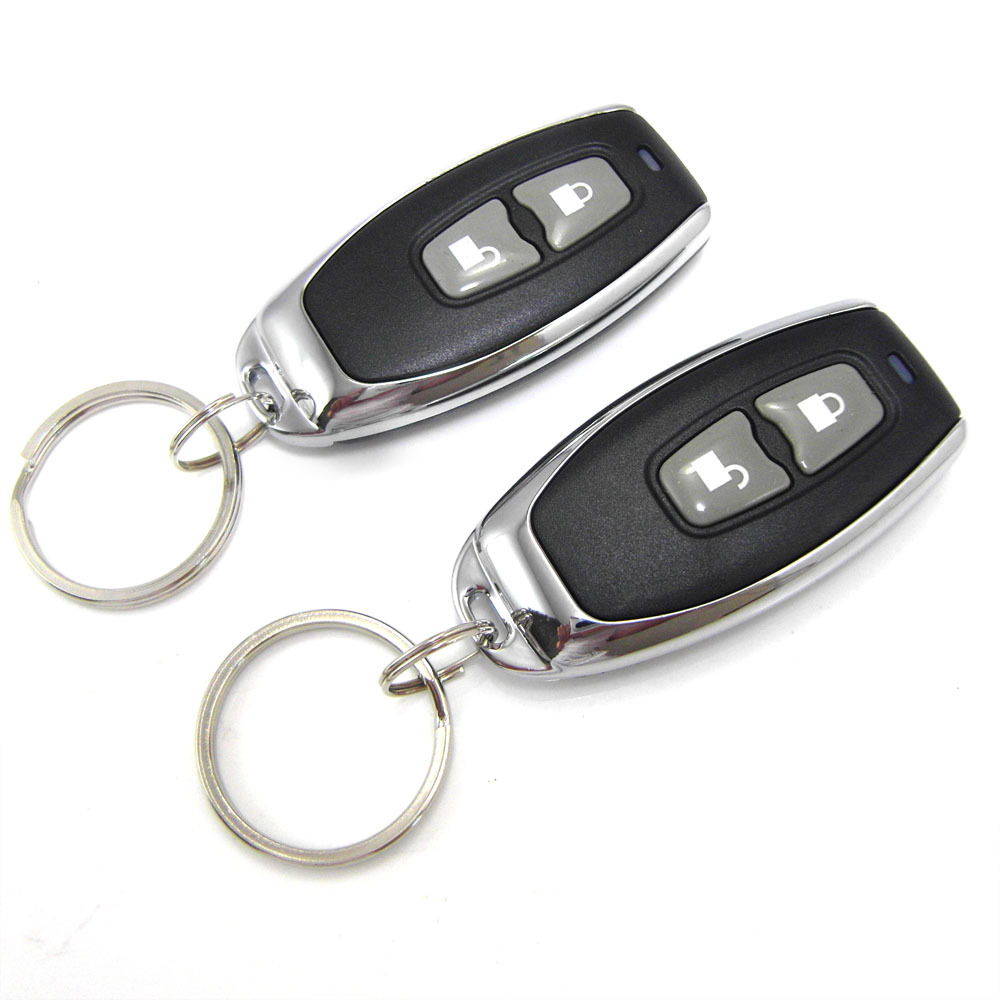

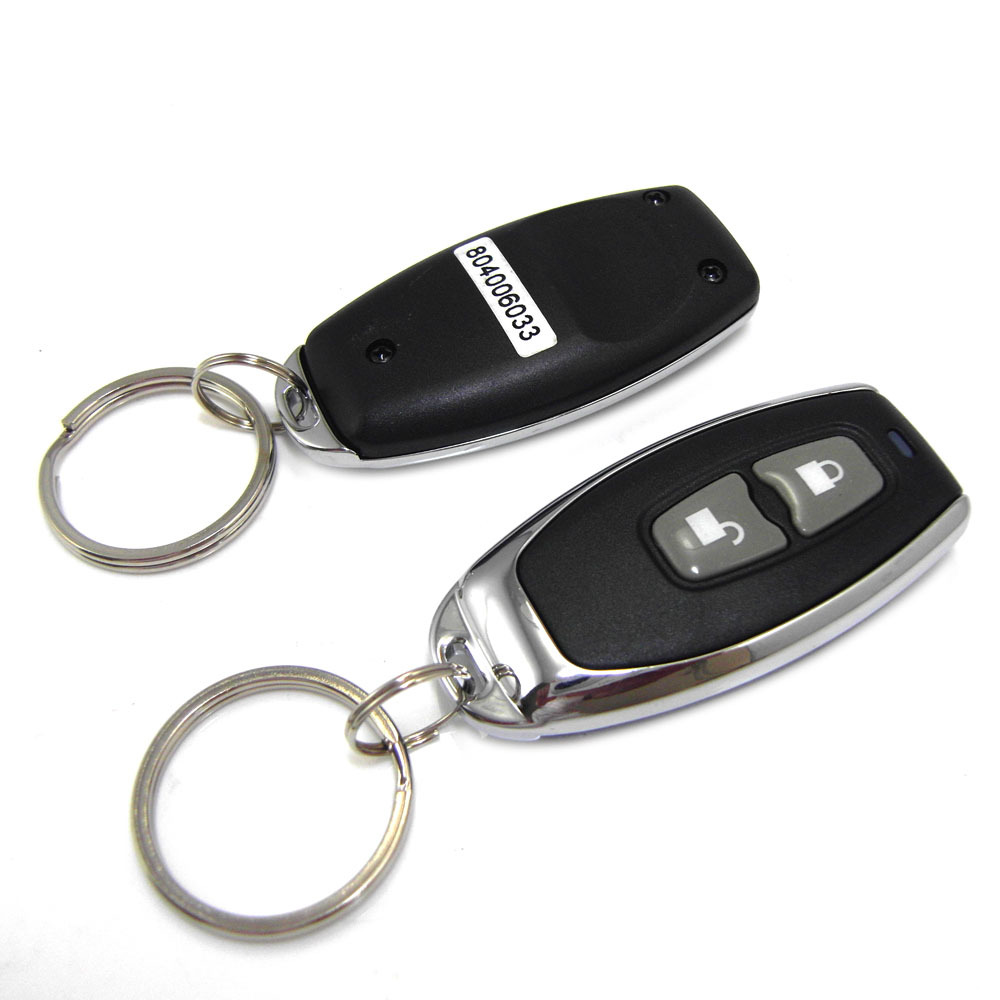

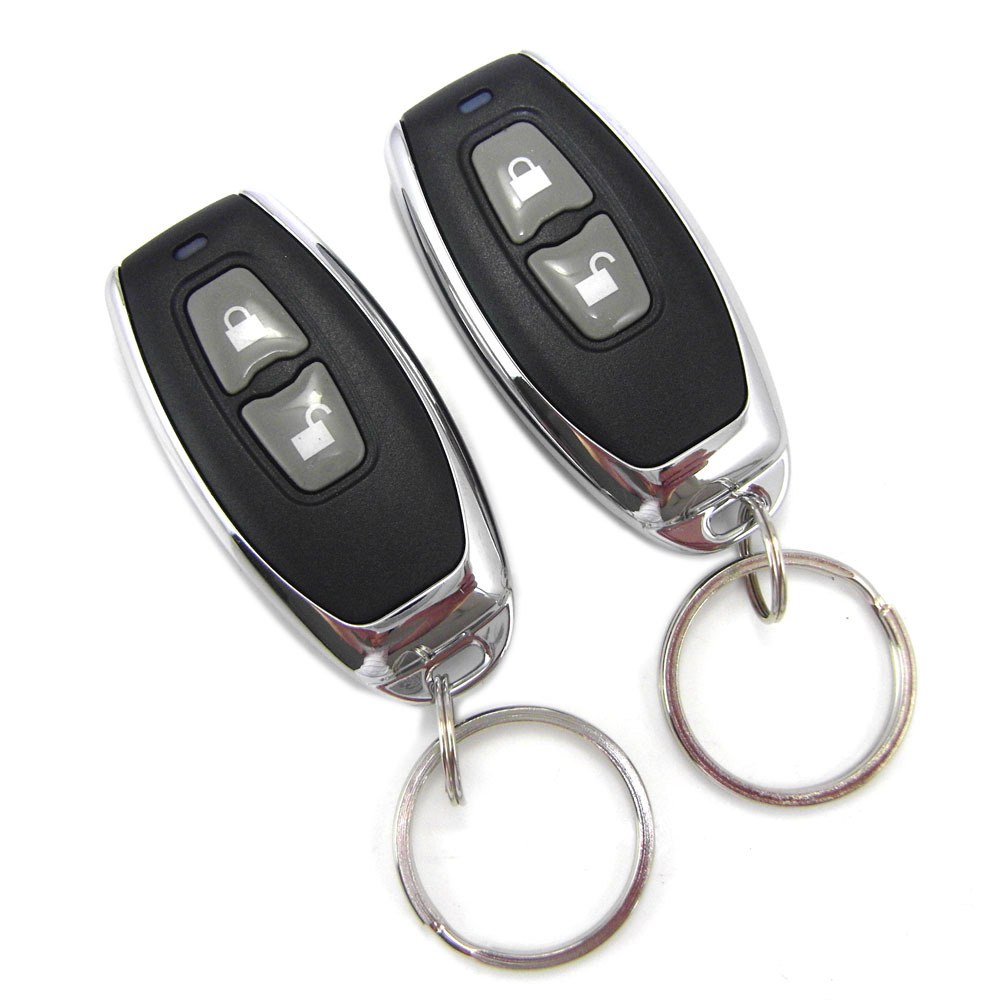

2x Remote Control

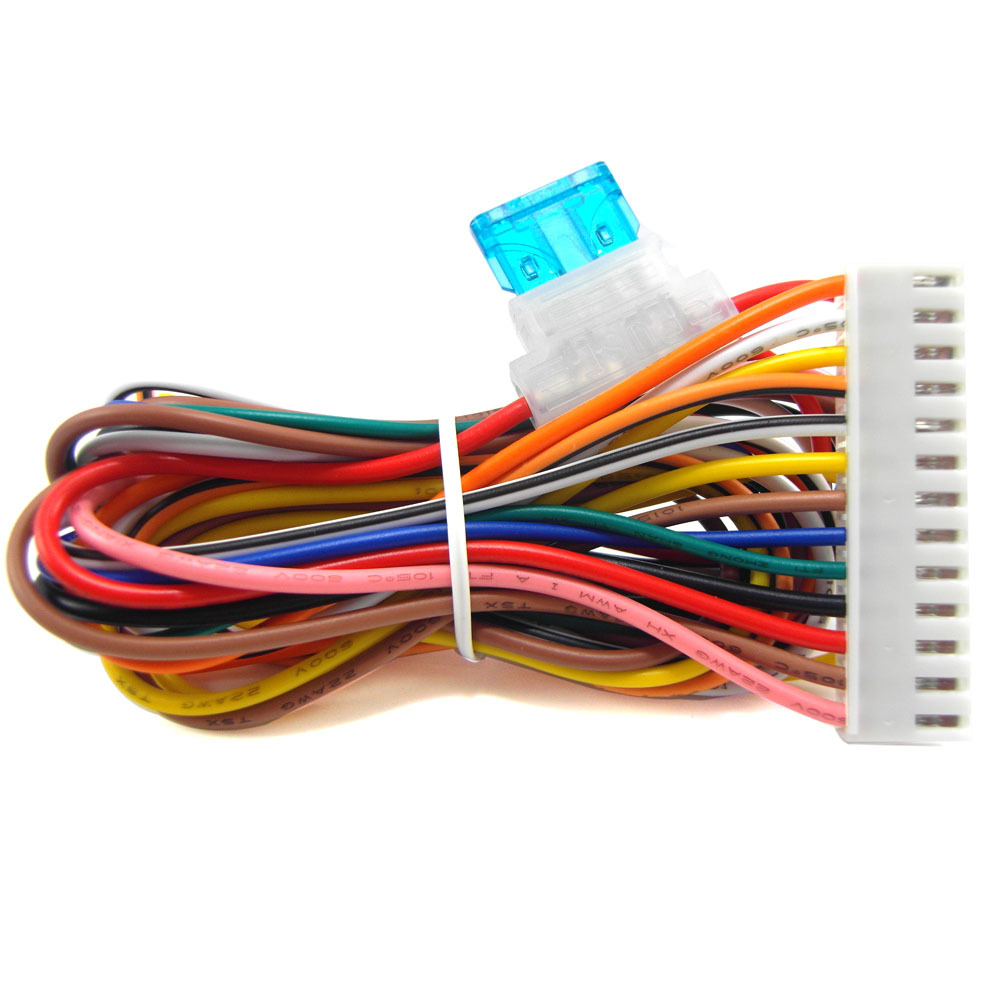

1x Wiring Set

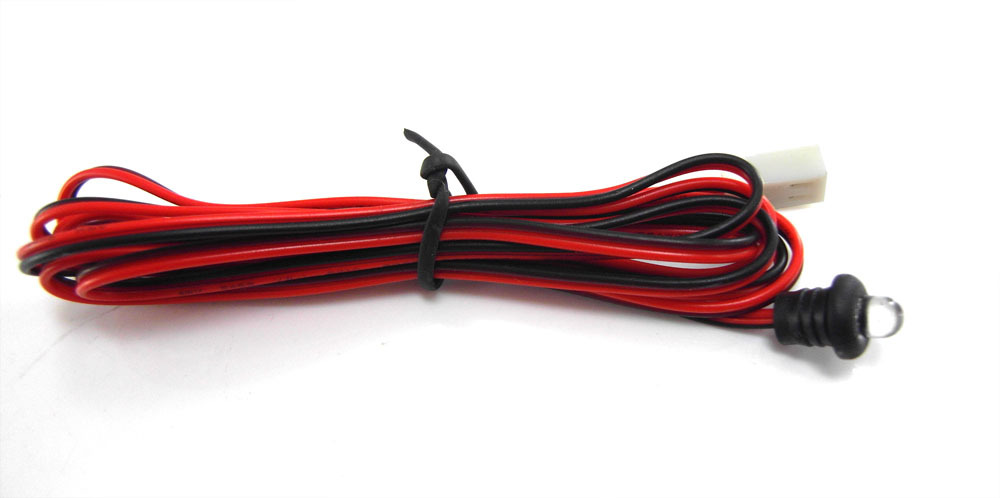

1x LED indicator
1x English User Manual
