Описание

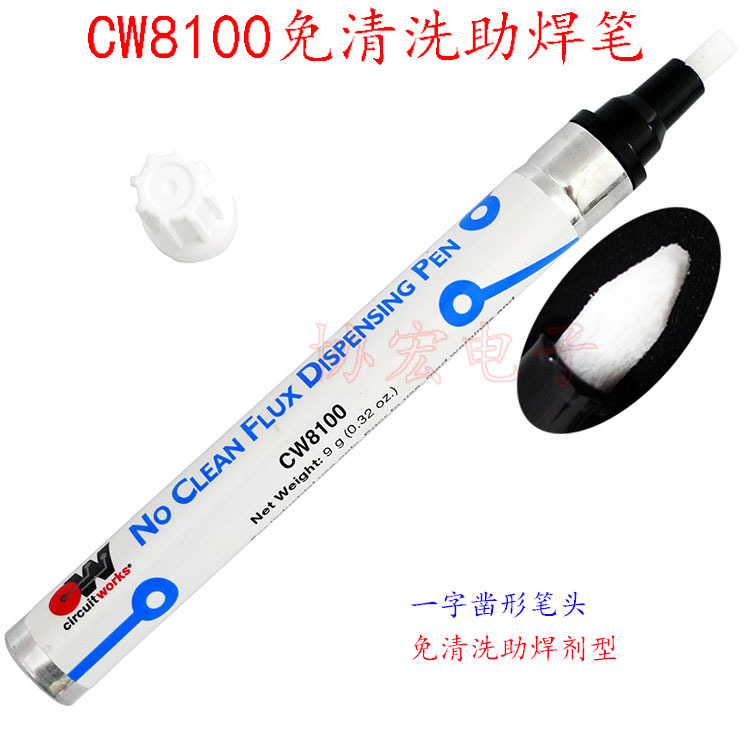

免清洗助焊笔

CircuitWorks®通量笔专为精确控制每种类型的通量而设计。无清洁助焊剂笔精确地应用了一种专利的无腐蚀、无卤化物、有机低固体助焊剂。该焊剂符合Bellcore TR-NWT-000078和IPC SF-818的表面绝缘电阻。

CircuitWorks®通量分配笔提供控制和精确的应用，通常与电子行业的大多数材料兼容。在印刷电路板、散热器、芯片载体、开关、插座等上分配焊剂。CircuitWorks®助焊剂分配笔干燥快，完全便携，并具有最小的多余助焊剂浪费。

特点和优点

凿尖标记提供了准确的焊剂输送到表面

采用专利的无腐蚀性、无卤化物、有机无清洁助焊剂

焊剂符合Bellcore TR-N-NWT-000078和IPC SF-818的表面绝缘电阻

焊剂符合ANSI/IPC J-STD-004，ROL0型

符合RoHS

CircuitWorks No Clean Flux Pen

CircuitWorks® Flux Pens are designed specifically to apply each type of flux with precision control. The No Clean Flux Pen precisely applies a patented noncorrosive, halide-free, organic low solid flux. This flux meets Bellcore TR-NWT-000078 and IPC SF-818 for surface insulation resistance.

CircuitWorks® Flux Dispensing Pens provide controlled and exact applications that are generally compatible with most materials in the electronics industry. Dispense flux on printed circuit boards, heat sinks, chip carriers, switches, sockets and much more. CircuitWorks® Flux Dispensing Pens are fast drying, completely portable and have minimal excess flux waste.

FEATURES & BENEFITS

· Chisel tip marker provides exact delivery of flux to surface

· Applies a patented noncorrosive, halide free, organic no-clean flux

· Flux meets Bellcore TR-N-NWT-000078 and IPC SF-818 for Surface Insulation Resistance

· Flux meets ANSI/IPC J-STD-004, Type ROL0

· RoHS compliant

 -------------------

松香助焊笔CW82009g(0.32oz)

■无腐蚀、不导电的R型助焊剂

■助焊剂符合MIL-F-14256F之R型和ANSI/IPCJ-STD-004,POL0型

线路板用松香助焊剂笔

CircuitWorks磁通笔专门设计用于精确控制每种类型的磁通。松香焊剂笔快速应用非腐蚀性R型焊剂。该焊剂符合MIL-F-14256 E和F。

特点和优点

凿尖标记提供了准确的焊剂输送到表面

施加非腐蚀性、非导电性R型焊剂

焊剂符合MIL-F-14256 F R型和ANSI/IPC J-STD-004 ROL0型

使用助熔剂去除笔轻松去除松香或CircuitWorks松香助熔剂

符合RoHS

CircuitWorks Rosin Flux Pen

CircuitWorks Flux Pens are designed specifically to apply each type of flux with precision control. The Rosin Flux Pen quickly applies a noncorrosive type R flux. This flux meets MIL-F-14256 E and F.

FEATURES & BENEFITS

· Chisel tip marker provides exact delivery of flux to surface

· Applies a noncorrosive, nonconductive Type R flux

· Flux meets MIL-F-14256 F Type R and ANSI/IPC J-STD-004, Type ROL0

· Easily removed with Flux-Off® Rosin or CircuitWorks® Rosin Flux Remover Pen

· RoHS compliant

--------------------

无铅助焊笔CW8400 9g(0.32oz)

电路板无铅助焊剂笔

CircuitWorks®无铅助焊剂笔专为无铅焊接而设计。方便的无铅助焊剂在需要的地方精确控制流量。无铅焊剂笔使用符合Bellcore TR-NWT-000078和IPC SF-818表面绝缘电阻无腐蚀、无卤化物、无清洁焊剂。瞬间润湿作用为金属表面.提供彻底的脱氧，为无铅焊接提供了最好的可能表面。

特点和优点

凿尖标记提供了准确的焊剂输送到表面

在高温无铅应用中使用无腐蚀性、无卤化物、无清洁助焊剂

也可用于锡/铅焊剂

焊剂符合Bellcore TR-N-NWT-000078和IPC SF-818的表面绝缘电阻

焊剂符合ANSI/IPC J-STD-004，ROL0型

易用CircuitWorks®无铅助焊剂去除笔或Flux Off®无铅助焊剂去除笔去除

符合RoHS

CircuitWorks Lead-Free Flux Pen

CircuitWorks® Lead-Free Flux Pen is designed specifically for lead-free soldering. The convenient flux pen applies flux where it’s needed with precision control. The Lead-Free Flux Dispensing Pen quickly applies a noncorrosive, halide-free, No Clean flux which meets Bellcore TR-NWT-000078 and passes IPC SF-818 for surface insulation resistance. Instant wetting action provides thorough deoxidation of metallic surfaces providing the best possible surfaces for lead-free soldering.

FEATURES & BENEFITS

· Chisel tip marker provides exact delivery of flux to surface

· Applies a noncorrosive, halide free, no clean flux for high temperature, lead-free application

· Can also be used to for Tin/Lead fluxes

· Flux meets Bellcore TR-N-NWT-000078 and IPC SF-818 for Surface Insulation Resistance

· Flux meets ANSI / IPC J-STD-004, Type ROL0

· Easily removed with CircuitWorks® Lead-Free Flux Remover Pen, or Flux-Off® Lead-Free Flux Remover

· RoHS Compliant

 ------------

CW8300是水溶性助焊剂用量的。

水溶性助焊剂中性pH值，与大多数阻焊膜兼容。

高活性的有机产品与水可清洁，减少清洗成本。

产品特点
pH值中性

可用清水清理

优秀的材料相容性

良好的焊接性能

ORH1分类

符合Rohs
